P307H

Pneumatic Tire Roller

Total Weight:

30000KG

Min. Turning Radius:

9000mm

Rated Power:

140Kw

  • Overall Dimensions (mm)
    5200*2870*3380
  • Engine Model
    Shangchai Tier4

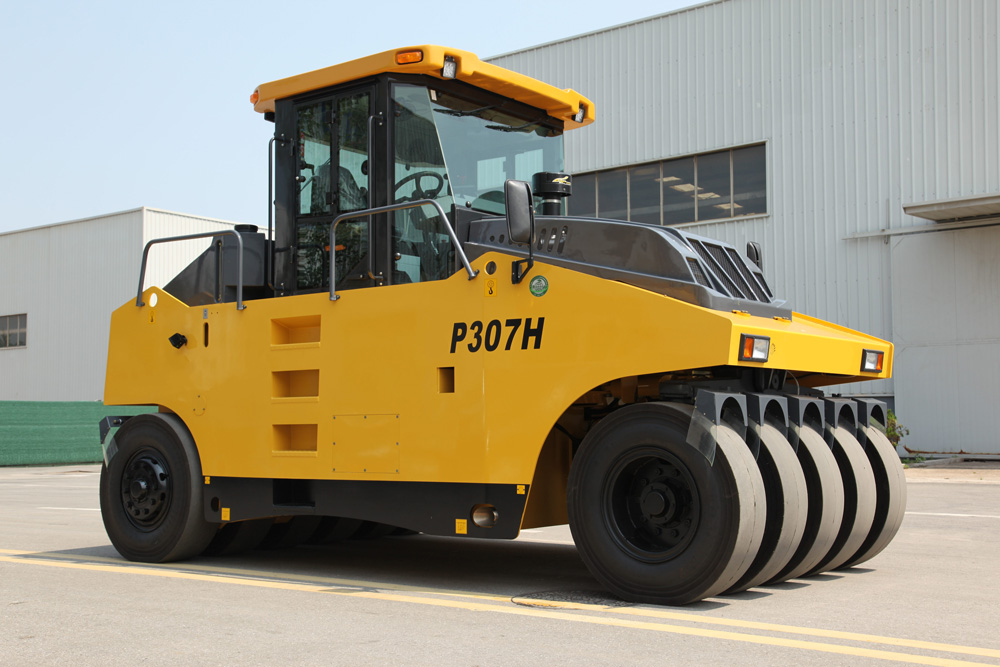

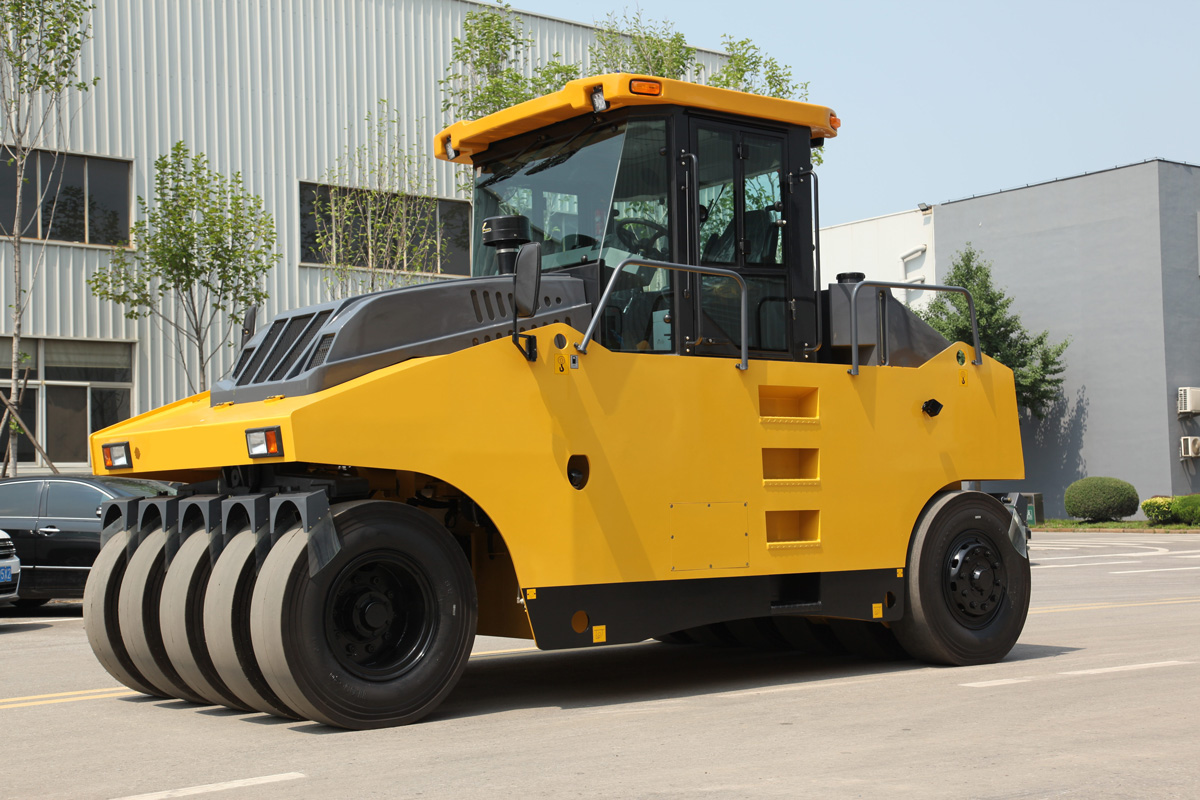

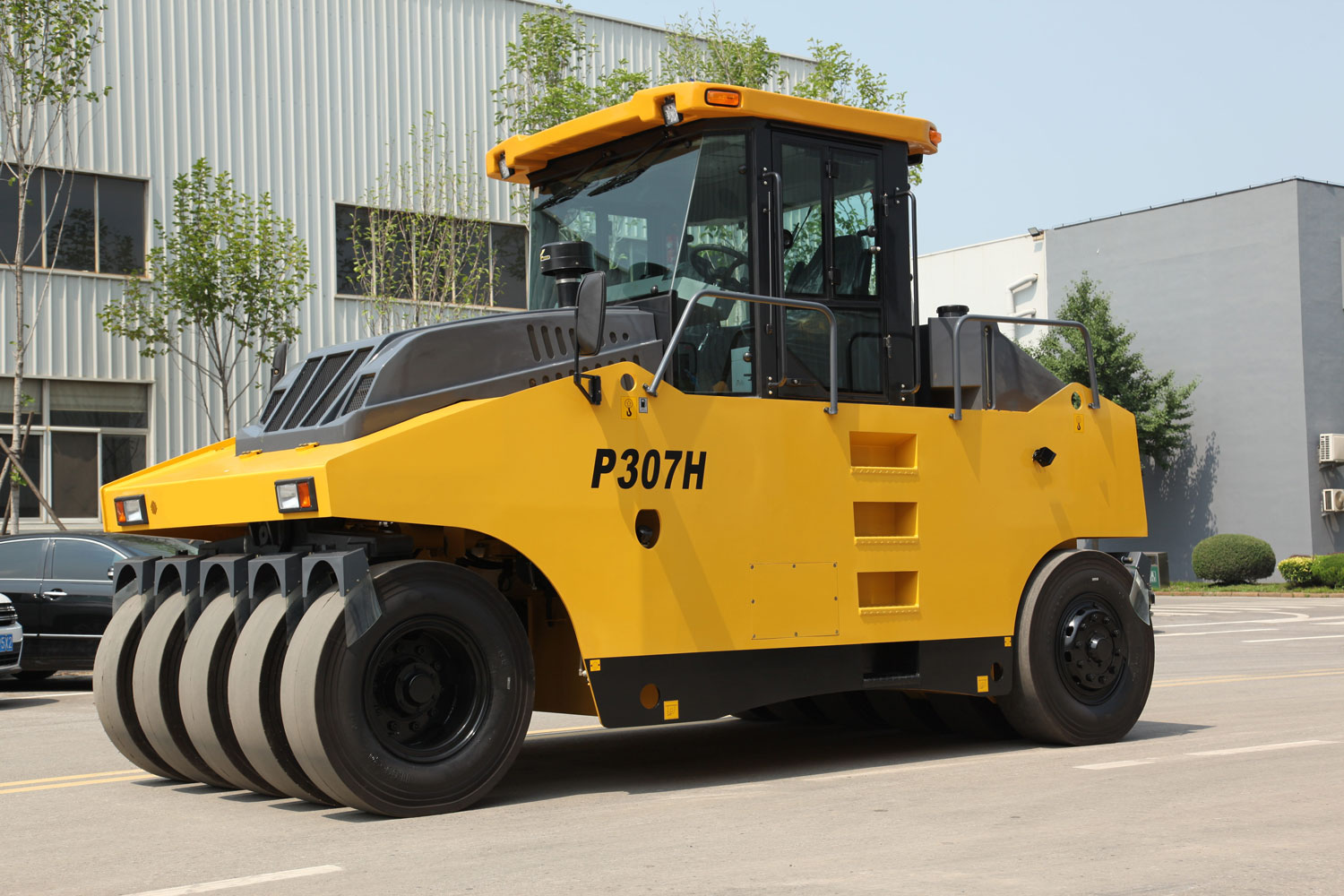

P307H Pneumatic Tire Roller
P307H Pneumatic Tire Roller

🔍 Details:P307H Pneumatic Tire Roller

🚜 P307H Fully Hydraulic Pneumatic Tyred Roller — Tier 4 / Stage IV High‑Efficiency Compaction Solution

🌱 Tier 4 / Stage IV High‑Efficiency Engine

Equipped with a low‑emission, high‑efficiency Shangchai engine that meets global environmental standards for urban and international projects.

🏋️ 30‑Ton Heavy‑Duty Structure

Stable and robust frame design ensures reliable performance under heavy loads and long‑hour working conditions.

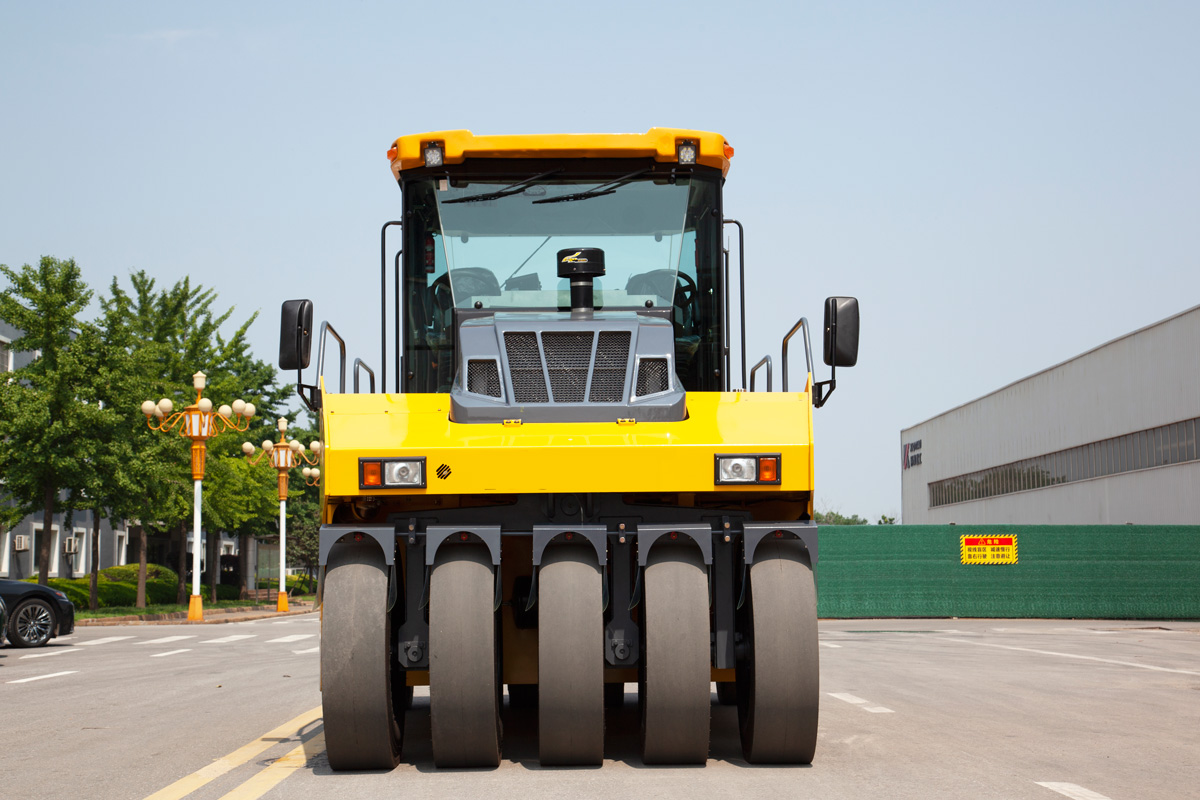

🔧 Optimized 5+6 Tire Arrangement

Front 5 and rear 6 tires provide full coverage compaction, eliminating uncompressed areas and ensuring even density.

📐 Wide Compaction Width for High Efficiency

2750 mm working width reduces repeated passes and greatly improves daily construction productivity.

⚖️ Stable and Adjustable Ground Pressure (250–460 kPa)

Adjustable pressure range supports both base course compaction and asphalt surface finishing.

🎛️ Smooth Full Hydraulic Drive

Precise hydraulic control ensures stable starting, steering, and braking, reducing operator fatigue.

🛞 Excellent Anti‑Slip and Traction Performance

Optimized weight distribution and tire configuration deliver strong grip even on wet or sloped surfaces.

🔩 Long Service Life & Low Failure Rate

High‑strength components and rational structural design reduce maintenance frequency and extend machine lifespan.

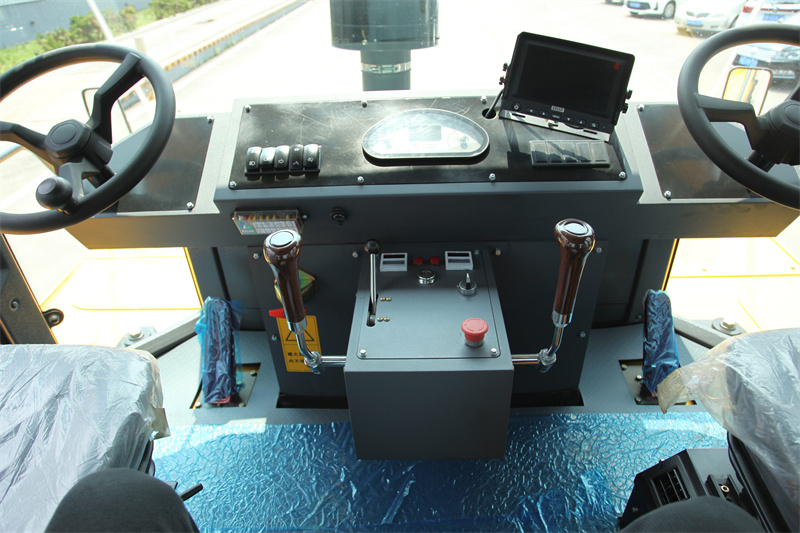

🪑 Comfortable and Ergonomic Operation

User‑friendly control layout and low‑vibration design improve operating comfort during long shifts.

🌐 Wide Application in Major Projects

Suitable for highways, airports, ports, municipal roads, and large‑scale infrastructure requiring high compaction quality.

Product Summary

The P307H fully hydraulic pneumatic tyred roller pairs a 30‑ton heavy‑duty structure with a Tier 4 / Stage IV Shangchai engine and advanced hydraulic systems to deliver uniform, deep, and environmentally compliant compaction across a 2750 mm width—ideal for major infrastructure projects demanding high efficiency, durability, and pavement‑friendly performance.

Pneumatic Tyre Roller Parameters
Model P307H
Maximum operation weight (kg) 30000
Ground pressure (kPa) 250-460
Compaction width (mm) 2750
Climbing capability (%) -
I speed (km/h) 0-14
II speed (km/h) 0-14
Turning radius (mm) 9000
Tyre specification (matte) 11.00-20
Tyre qty (f/r) 5/6
Engine brand Weichai
