ShanBo

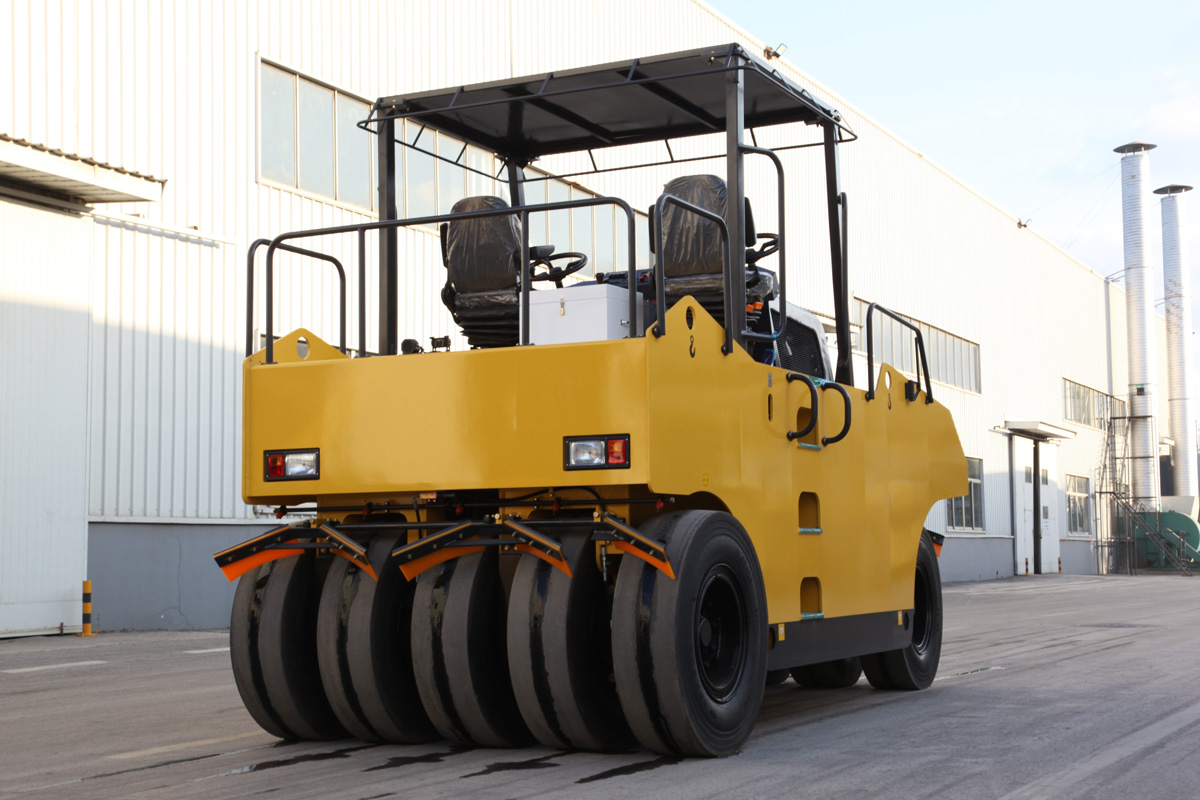

P166 without cab tyred roller

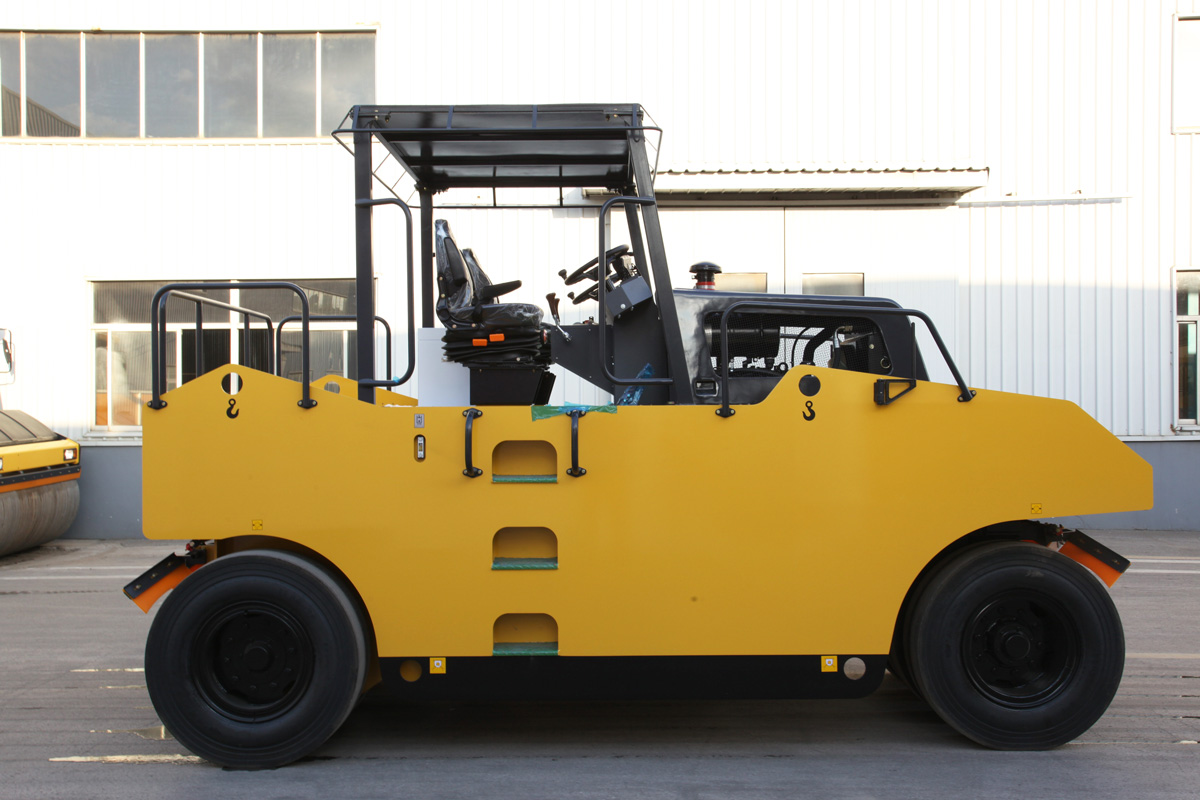

16 ton pneumatic roller

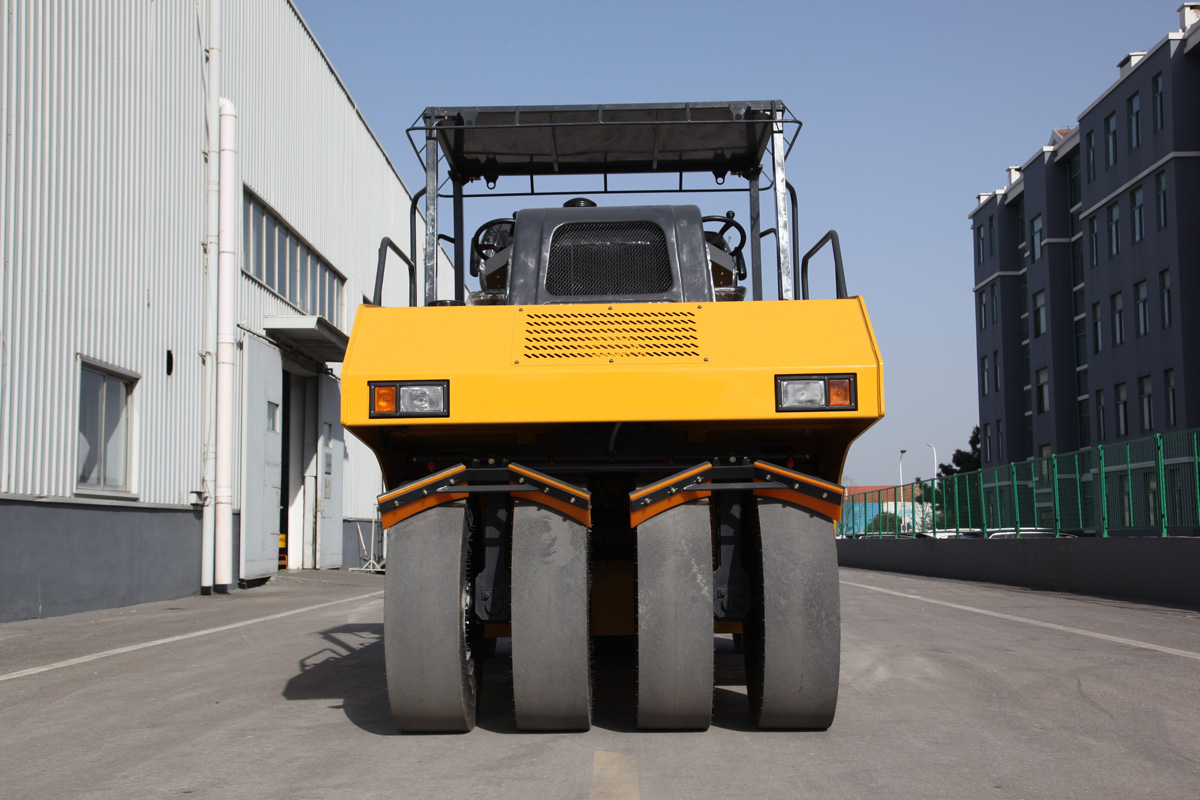

municipal road compaction machinery
P166 without cab tyred roller
16 ton pneumatic roller
municipal road compaction machinery

P166 without Cab

Pneumatic Tire Roller

Total Weight:

16000KG

Rated Power:

105Kw

  • Overall Dimensions (mm)
    5200*2270*3350
  • Engine Model
    Weichai Tier2
  • Travel Speed (km/h)
    0–7

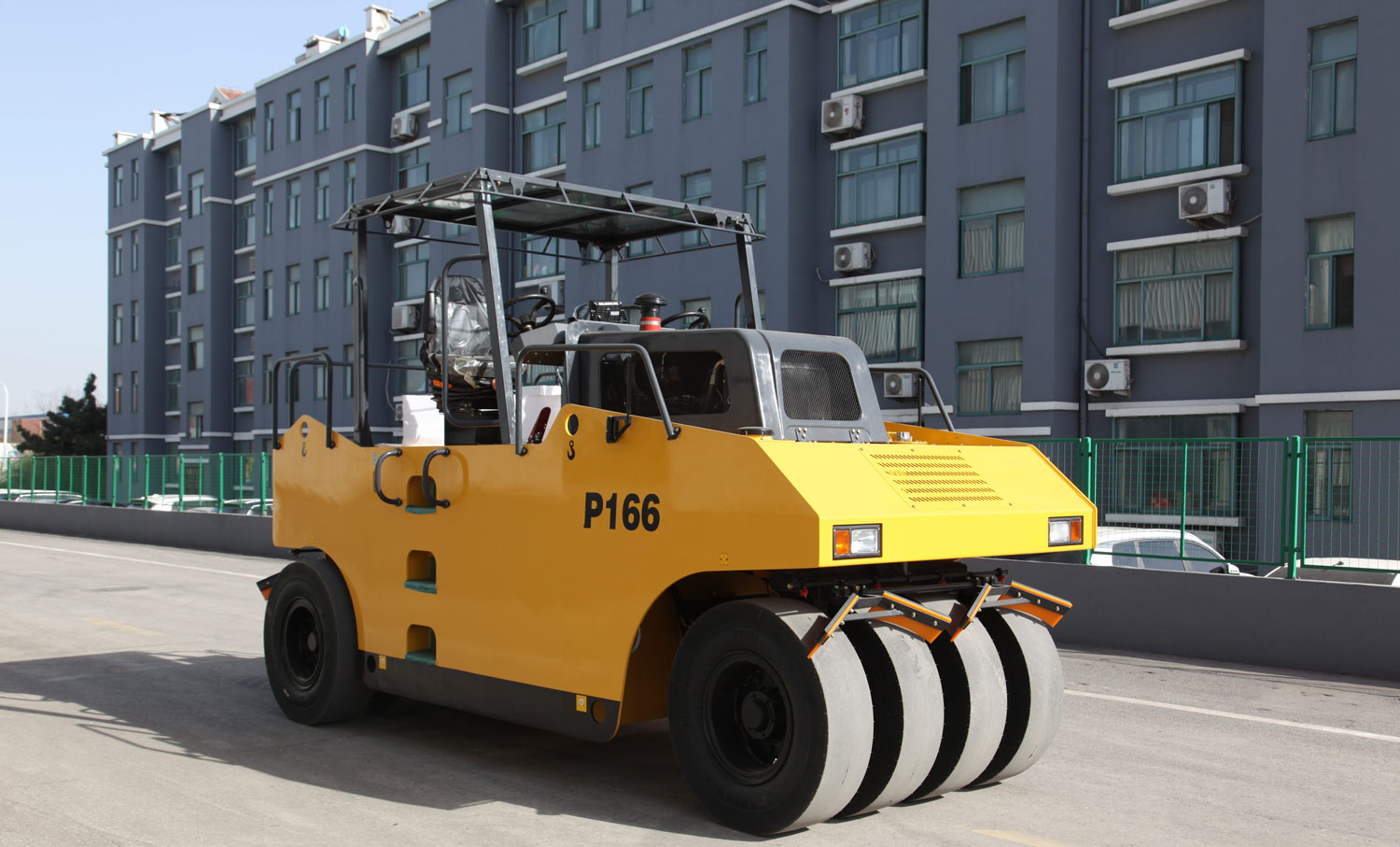

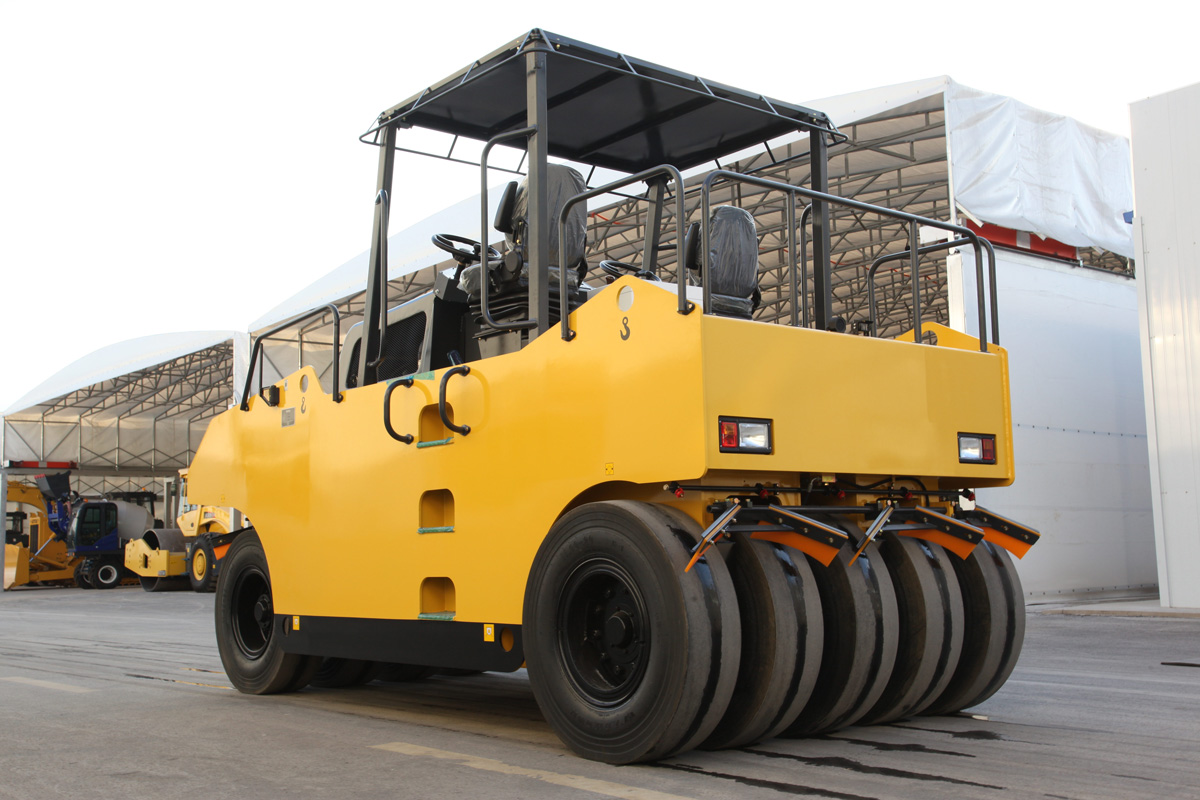

P166 without Cab Pneumatic Tire Roller
P166 without Cab Pneumatic Tire Roller

🔍 Details:P166 without Cab Pneumatic Tire Roller

🚜 P166 Fully Hydraulic Pneumatic Tyred Roller — Versatile 16‑Ton Compaction Solution

🎛️ Full Hydraulic Precision Control

Advanced fully hydraulic system provides smooth, responsive handling and infinitely variable speed adjustments, reducing operator effort during long shifts.

⚖️ Wide Range Ground Pressure Adjustment (200–400 Pa)

Field‑adjustable ground pressure adapts the roller for surface sealing on asphalt or deeper compaction of base materials via simple ballasting changes.

🏋️ 16‑Ton Substantial Working Weight

Maximum operating mass of 16,000 kg supplies strong static force and kneading action for high‑density compaction and superior surface closure.

🔧 Optimized 9‑Wheel Configuration (4 Front + 5 Rear)

Specialized wheel arrangement ensures full coverage across the compaction path and generates the kneading effect needed to seal surfaces and boost density.

📏 Even Load Distribution Across 2270 mm Working Width

Multiple pneumatic tires spread pressure uniformly to eliminate weak spots and protect mat integrity during critical asphalt courses.

🛡️ Asphalt‑Friendly Compaction

Pneumatic tires provide gentle yet effective force that minimizes surface marking and aggregate damage, ideal for final finishing passes.

🔁 Variable Compaction Depth via Tire Pressure

Adjustable tire inflation lets operators control compaction depth and energy on‑site without changing equipment.

🌄 Excellent Terrain Adaptability

Flexible pneumatic tires maintain effective compaction on uneven ground, soft bases, and coarse surfaces where rigid drums may struggle.

🎯 Hydraulic Precision Maneuvering

Responsive full hydraulic system grants exceptional control during tight turns and frequent directional changes for accurate compaction patterns.

⚡ Two‑Stage Speed Versatility (0–7 / 0–15 km/h)

Dedicated compaction speed range for quality work and higher transit speed for rapid repositioning between sites.

✅ Complete Pass Coverage (2270 mm)

The 2270 mm compaction width and overlapped wheel patterns ensure consistent density edge‑to‑edge, eliminating transitional weak zones.

🔋 Durable and Efficient Powertrain — 105 kW Weichai Engine

Reliable 105 kW Weichai engine (Tier 2 / China Stage II) offers dependable performance, simple maintenance, and efficient fuel consumption.

Product Summary

The P166 fully hydraulic pneumatic tyred roller combines smooth hydraulic control, adjustable ground pressure, a 4+5 tyre layout, and a robust 16‑ton working weight to deliver uniform, asphalt‑friendly compaction across a 2270 mm width—powered by a dependable 105 kW Weichai engine for durable, high‑quality road construction and surface finishing.

Pneumatic Tyre Roller Parameters
Model P166
Maximum operation weight (kg) 16000
Ground pressure (kPa) 200-400
Compaction width (mm) 2270
Climbing capability (%) 20
I speed (km/h) 0-7
II speed (km/h) 0-15
Turning radius (mm) 7500
Tyre specification (matte) 11.00-20
Tyre qty (f/r) 4/5
Engine brand 潍柴 / Weichai
Emission standard 国二 / Tier 2
Engine power (kW) 105
Dimensions (mm) 5200 × 2270 × 3350
