D136HF

Tandem roller

Total Weight:

13000KG

Min. Turning Radius:

6000mm

Rated Power:

119Kw

  • Overall Dimensions (mm)
    4920*2300*3200
  • Engine Model
    Cummins QSB4.5
  • Travel Speed (km/h)
    0–12
  • Ground Clearance (mm)
    440

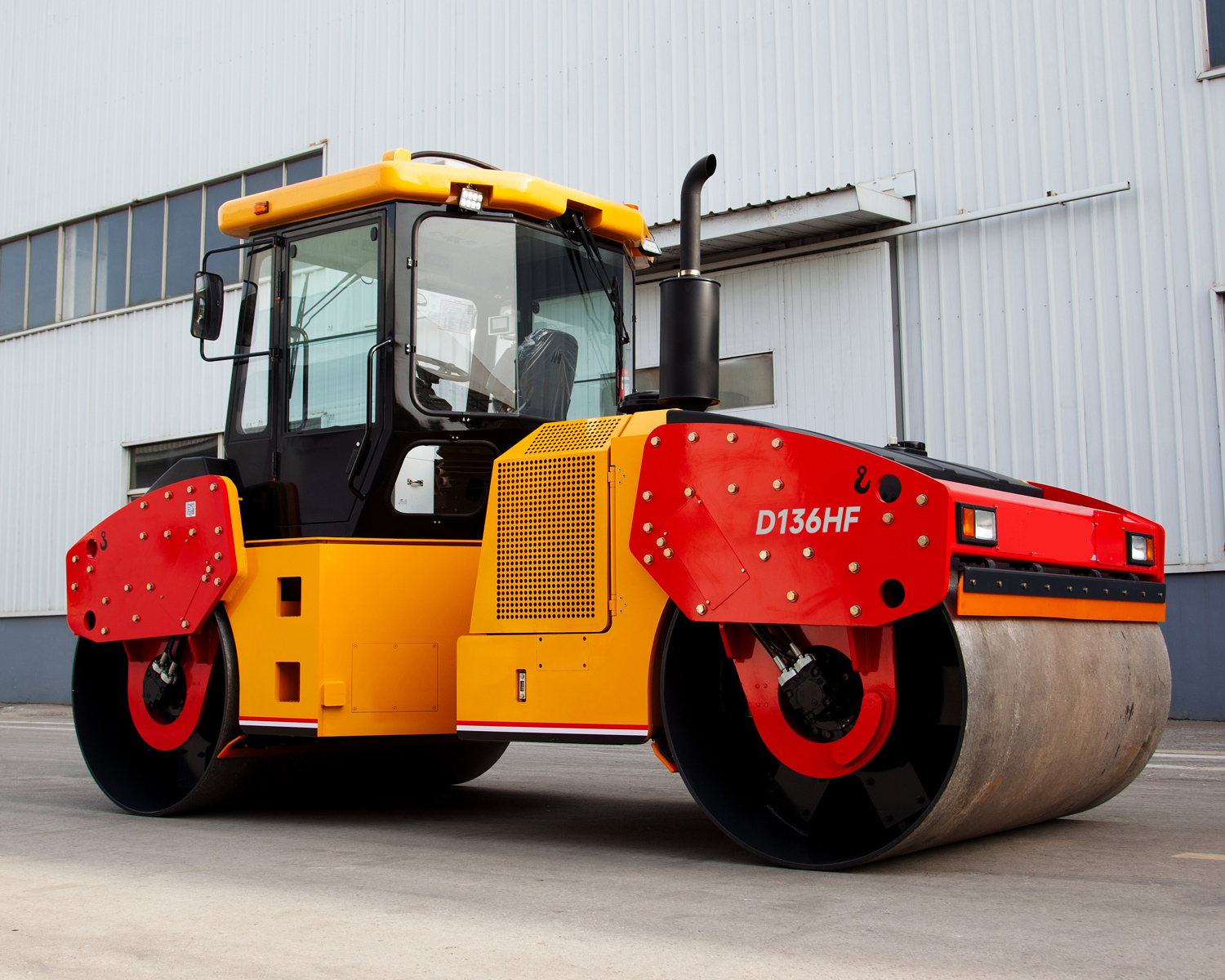

D136HF Tandem roller
D136HF Tandem roller

🔍 Details:D136HF Tandem roller

🚜 D136HF Tandem Vibratory Roller — 13‑Ton Heavy‑Duty Compaction Solution

13‑Ton Heavy‑Duty Structure

Higher operating weight delivers stronger compaction effect and better density for major road projects.

Higher Static Linearity (299 N/cm)

Uniform pressure distribution ensures smoother pavement and higher compaction quality.

Stronger Centrifugal Force (up to 150 kN)

Provides deeper and more efficient compaction for base and subbase layers.

Optimized Dual Amplitude (0.88 / 0.4 mm)

Better matching for different materials and layers, improving versatility.

Cummins Tier 3 Engine

Reliable power, low fuel consumption, and compliance with global emission regulations.

Imported Piston Pumps & Motors

Stable hydraulic system with high efficiency, low failure rate, and long service life.

Integrated Wet Multi‑Disc Braking System

Safe, maintenance‑free, and highly reliable even under heavy load.

Unique Crab Walk Function

Enables parallel movement for edge compaction and narrow‑space operation.

Electronically Controlled Water Spray

Adjustable flow rate, uniform distribution, and low water consumption.

Excellent Operator Visibility

Front‑mounted console and streamlined body provide a clear view of drum edges and the working area.

Product Summary

The D136HF tandem vibratory roller is a high‑performance 13‑ton compaction machine combining a heavy‑duty structure, premium imported components, and optimized vibration systems to deliver strong compaction force, high efficiency, and outstanding reliability; with articulated steering, crab walk, built‑in wet brakes, and an ergonomic cab, it is ideal for highways, airports, municipal roads, and large infrastructure projects.

Basic Parameters
Model D136HF
Operation Weight (kg) 13000
Static Linearity (Front/Rear) (N/cm) 299 / 299
Vibration Frequency (Hz) 42 / 50
Amplitude (mm) 0.88 / 0.4
Centrifugal Force (kN) 150 × 2 / 95 × 2
Drum Width (mm) 2130
Walking Speed (km/h) 0-12
Climbing Capability (%) 30
Ground Clearance (mm) 440
Steering Angle (°) ±40
Turning Radius (mm) 6000
Engine Brand CUMMINS
Rated Power (kW) 119
Fuel Tank Capacity (L) 200
Dimensions
Overall Dimensions L×W×H (mm) 4920 × 2300 × 3200
Main Configuration
Engine Model QSB4.5 (Cummins)
Drive Pump Model 90R100 / T90R100 (Danfoss)
Drive Motor Model 90K055 × 2 (Danfoss)
Vibrate Pump Model MPV046 / MP1P45R (Danfoss)
Vibration Motor Model MMF035 × 2 (Danfoss)
Reducer Model CTU2150 × 2 (Brevini)
Vibration Bearings 22312 × 8 (FAG)
