SD10

Small Bulldozer

Total Weight:

10000KG

Rated Power:

81Kw

  • Overall Dimensions (mm)
    4400 × 2960 × 3030
  • Engine Model
    CUMMINS 4BT3.9-C125
  • Rated Speed (rpm)
    2300
  • Ground Pressure (kPa)
    54.4
  • Travel Speed (km/h)
    2.6~10.4
  • Reverse Speed (km/h)
    3.7~6.7

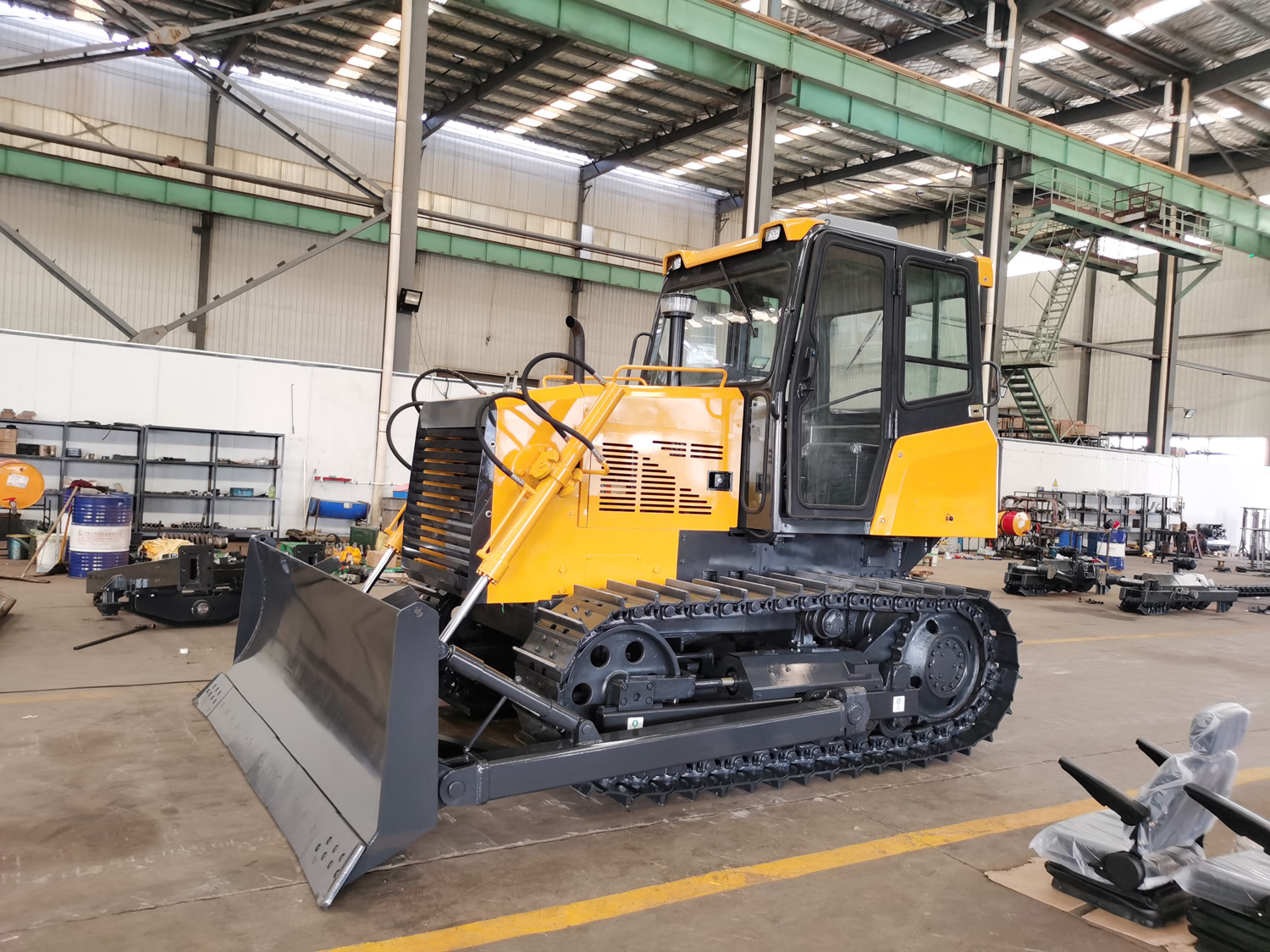

SD10 Small Bulldozer
SD10 Small Bulldozer

🔍 Details:SD10 Small Bulldozer

🚜 SD10 125HP Small Bulldozer | High-Performance Construction Dozer

The SD10 125HP small bulldozer is a compact and powerful construction machine, designed for earthmoving, site leveling, and material handling tasks. With 125 horsepower, durable chassis, and multi-functional attachments, it delivers reliable performance in various working conditions.

⚙️ Key Performance Parameters

With a total weight of 10000kg and maximum towing force of 95kN, this 125HP bulldozer offers strong stability and traction, easily adapting to complex construction sites.

🔥 125HP Cummins Engine System

Powered by the CUMMINS 4BT3.9-C125 diesel engine, rated at 81kW (125HP) / 2300r/min, with a maximum torque of 400N·m and fuel consumption ≤242g/km·h. It combines high power output with low energy consumption, meeting emission standards for eco-friendly operation.

🚀 Travel & Operation Performance

The bulldozer features a 4F+2R mechanical transmission, with forward speeds from 2.6 to 10.4km/h and reverse speeds from 3.7 to 6.7km/h. Smooth shifting and easy operation improve construction efficiency.

🛞 Reinforced Chassis & Track System

Equipped with a strengthened chassis and optimized travel mechanism, the track shoe width is 450mm, and ground pressure is only 54.4kPa. It provides excellent impact resistance and stability, even on soft ground.

📏 Compact Dimensions & Structure

Overall dimensions of the SD10 bulldozer are 4400 × 2960 × 3030mm. Its compact size allows flexible operation in narrow construction spaces without sacrificing power.

🏗️ Versatile Dozer Blade

The bulldozer blade measures 2960 × 960mm, with a maximum lifting height of 830mm and digging depth of 350mm. Optional straight, angled, and coal blades are available to meet different working needs.

⚒️ Optional Rear Attachments

Choose from fixed towing equipment or three-tooth rippers for expanded functionality. These attachments enhance the bulldozer’s versatility in soil loosening, material pulling, and more.

✅ Why Choose the SD10 125HP Bulldozer?

The SD10 125HP small bulldozer stands out for its high power, low fuel consumption, durable build, and flexible configuration. It is ideal for municipal engineering, farmland renovation, site leveling, and mining operations, offering great value for small to medium construction projects.

SD10 Bulldozer
Performance Parameter
Total weight (kg)10000
Max towing force (kN)95
Engine
Engine modelCUMMINS    4BT3.9-C125
Rated power / speed (kW/r/min)81 / 2300
Fuel consumption of the engine (g/km·h)≤ 242
Engine max torque (N·m)400
Walking Performance
Forward 1–4 gear (km/h)2.6 – 10.4
Reverse 1–2 gear (km/h)3.7 – 6.7
Chassis System
Caterpillar track board width (mm)450
Land pressure (kPa)54.4
Overall Dimension
Dimensions (L×W×H) (mm)4400 × 2960 × 3030
Blade Parameter
Bulldozer shovel (W×H) (mm)2960 × 960
Blade max lifting height (mm)830
Blade max digging depth (mm)350
Rear Attachment
Towing equipment / Ripper (optional)Fixed type / Three-tooth
Vehicle Type
Stranded vehicle type
