H85

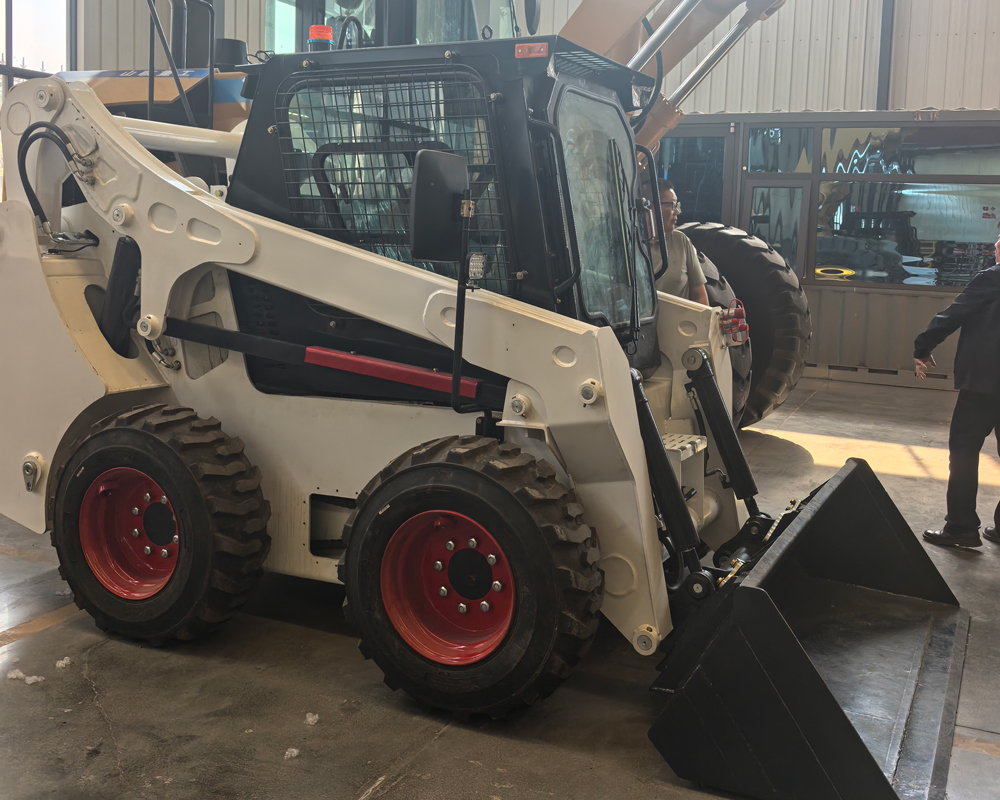

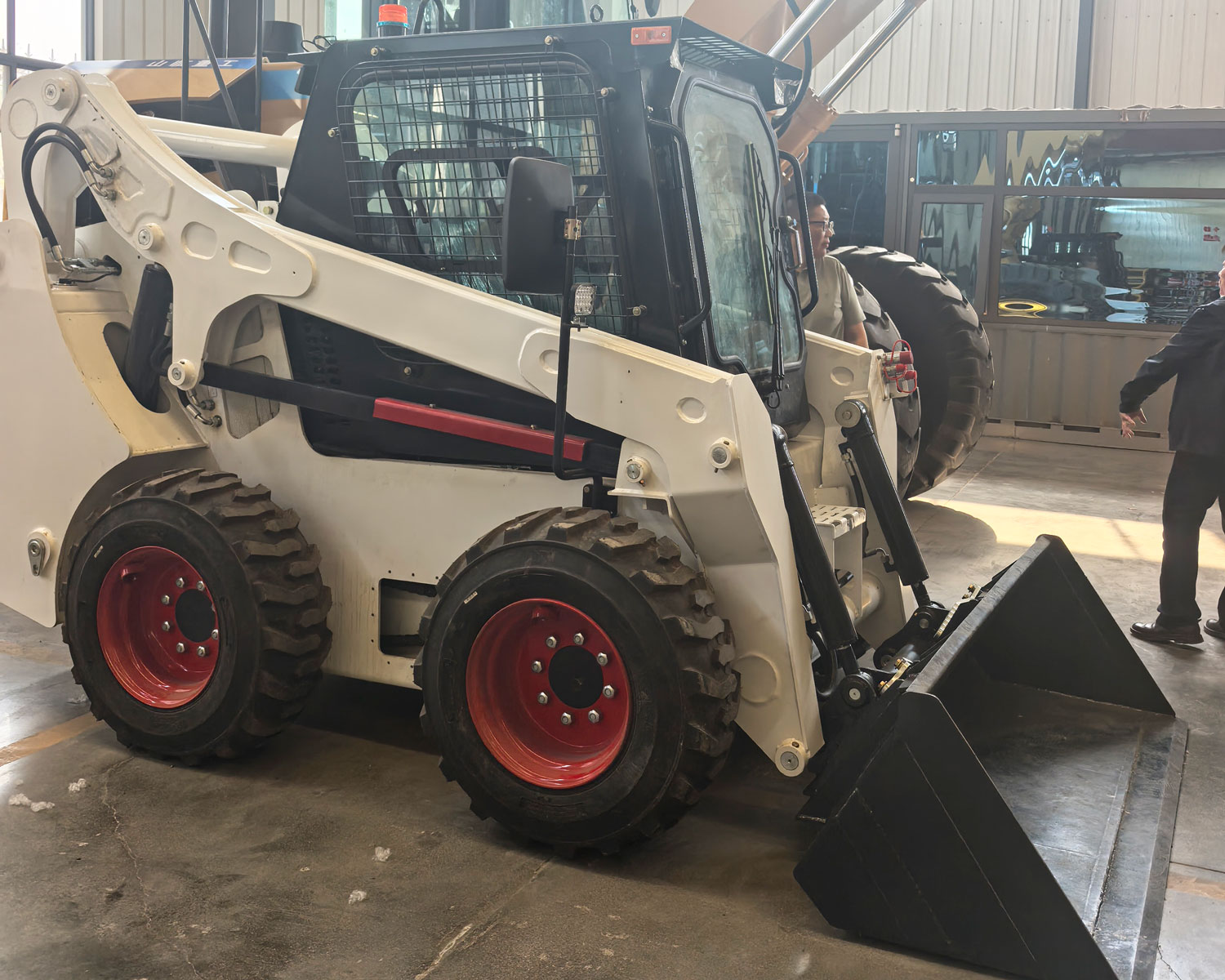

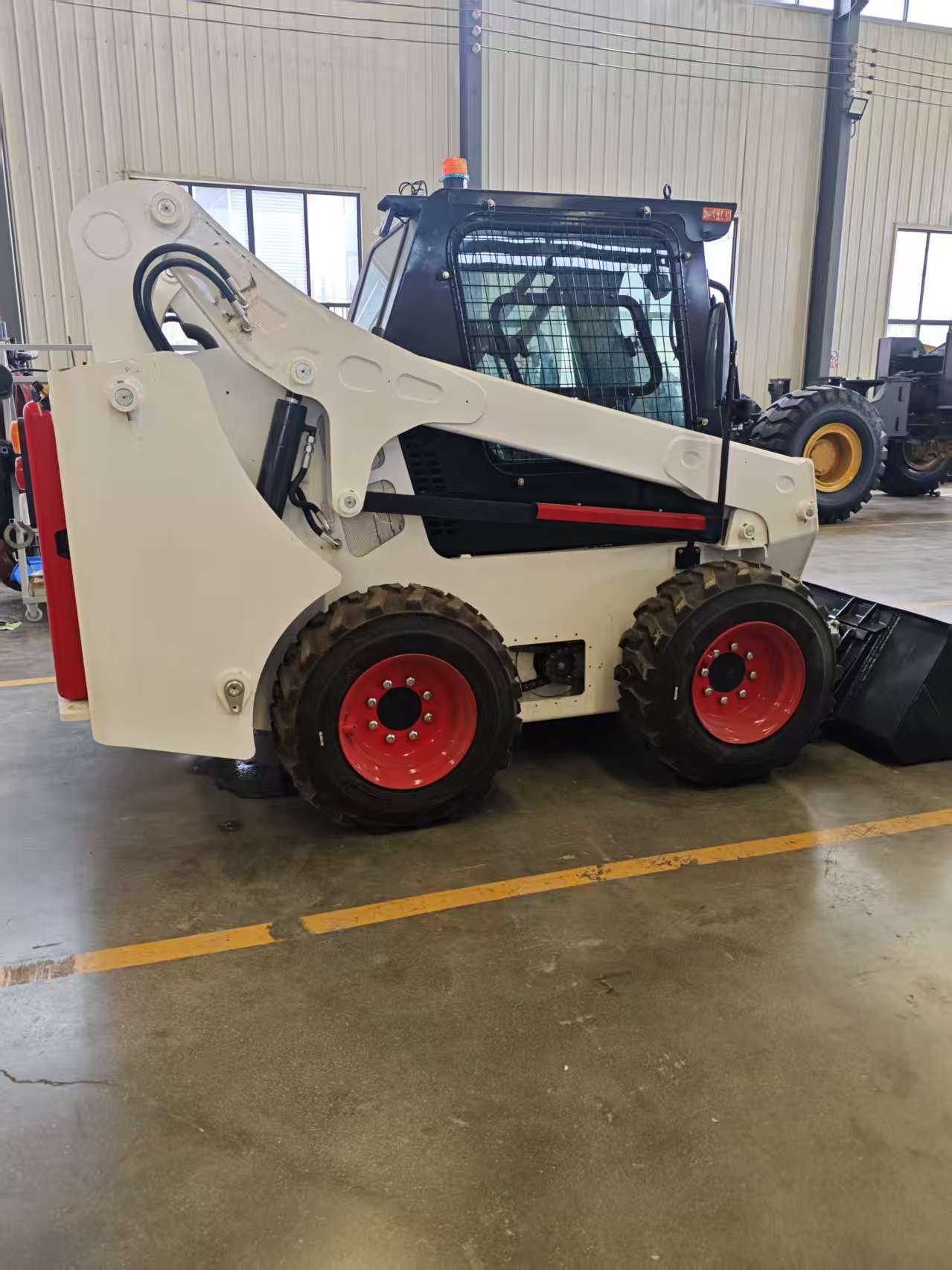

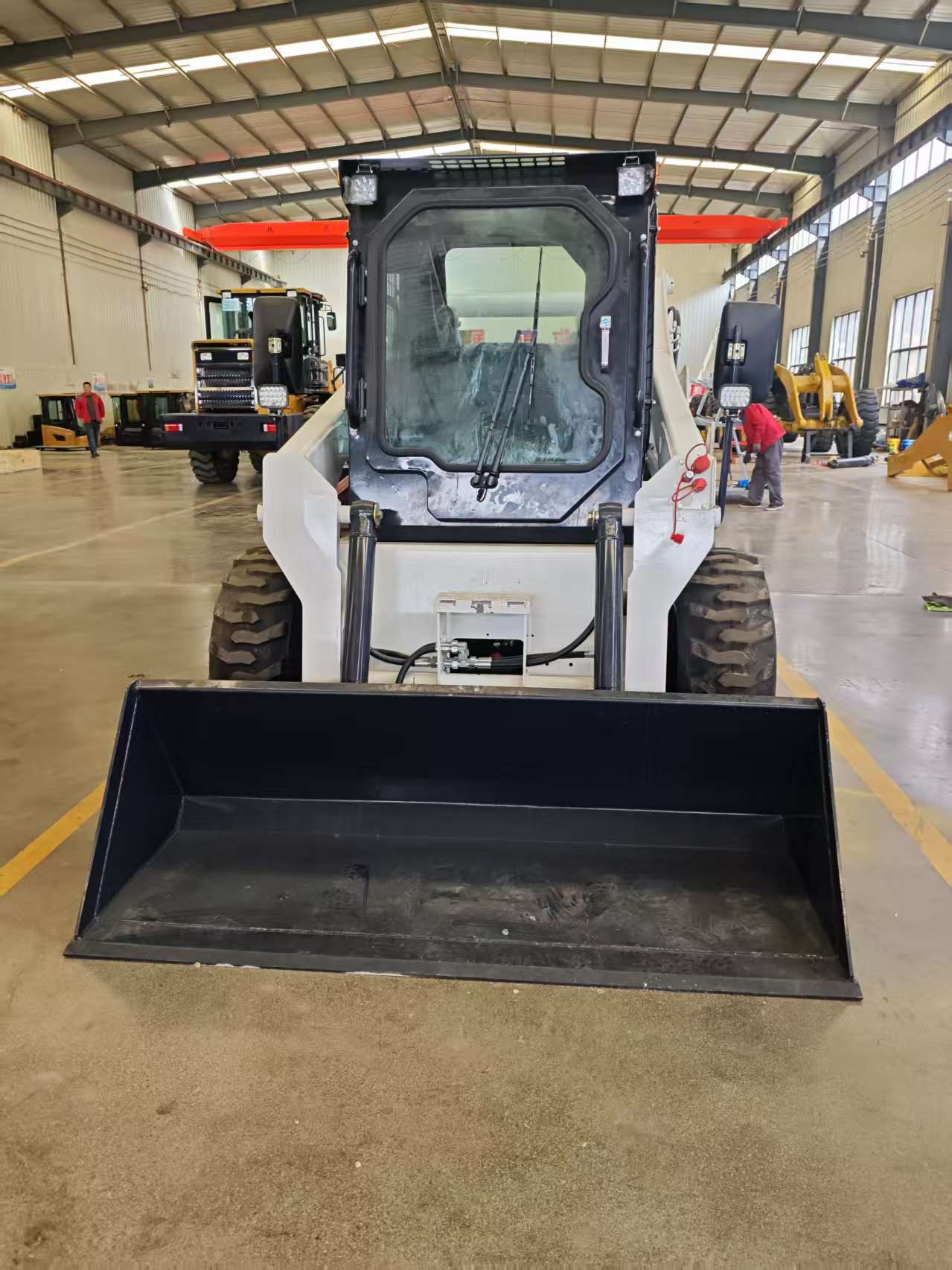

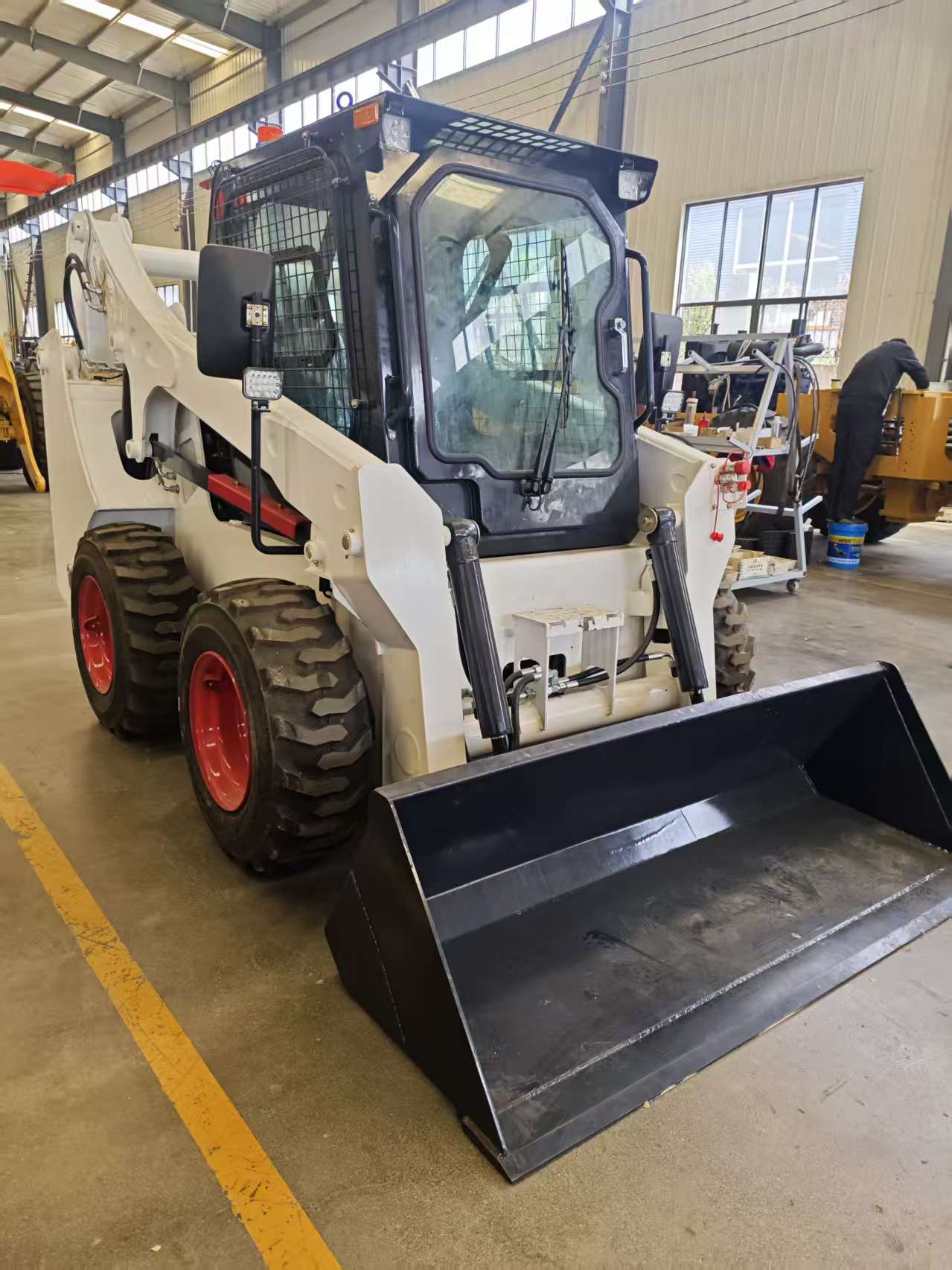

🚜 H85 Skid Steer Loader – High Load Heavy-Duty Compact Construction Loader

The H85 skid steer loader is a heavy-duty compact multi-functional loading equipment with an operating weight of 4200kg and a rated load of 1400kg. It is powered by Zhejiang Xinchai A498BZG turbocharged engine, matching high-pressure hydraulic system, dual speed travel and complete working dimension parameters. With strong breakout force, large flow hydraulic output and flexible skid steering, it is widely used for earthmoving, material handling, farm renovation, municipal maintenance and multi-scene auxiliary construction work.

⚙️ Turbocharged Powerful Engine

Equipped with Zhejiang Xinchai A498BZG 4-cylinder turbocharged engine, with 55kW rated power, 293.5N·m maximum torque and 2.977L displacement. It meets Tier 2 / China Stage II emission standard, stable power output at 2500rpm rated speed, strong power reserve, low fuel consumption and durable performance for long-term heavy-load operation.

💪 Outstanding Loading & Breaking Performance

Designed with high-strength working device structure, the bucket breakout force reaches 27kN and arm breakout force up to 22kN. The rated load is 1400kg and the maximum bearing load reaches 2800kg, equipped with 0.5m³ standard bucket. It owns powerful shoveling, digging and stacking capacity to meet high-intensity material loading and handling tasks.

💧 Dual-Flow High-Efficiency Hydraulic System

The whole machine adopts 210bar working system pressure, with 85L/min standard flow rate and 127L/min high flow rate. The optimized hydraulic circuit ensures sensitive action response and smooth compound operation. The 10s short working cycle greatly improves construction efficiency, realizing energy-saving, stable and high-efficiency hydraulic driving.

🚀 Dual-Speed Flexible Travel Performance

Matched with 11km/h and 22km/h two-speed travel mode, it balances operation stability and transfer efficiency. Cooperated with 12-16.5 standard tires, reasonable wheel tread and ground clearance design, the machine runs smoothly on various grounds, with flexible walking and strong site adaptability.

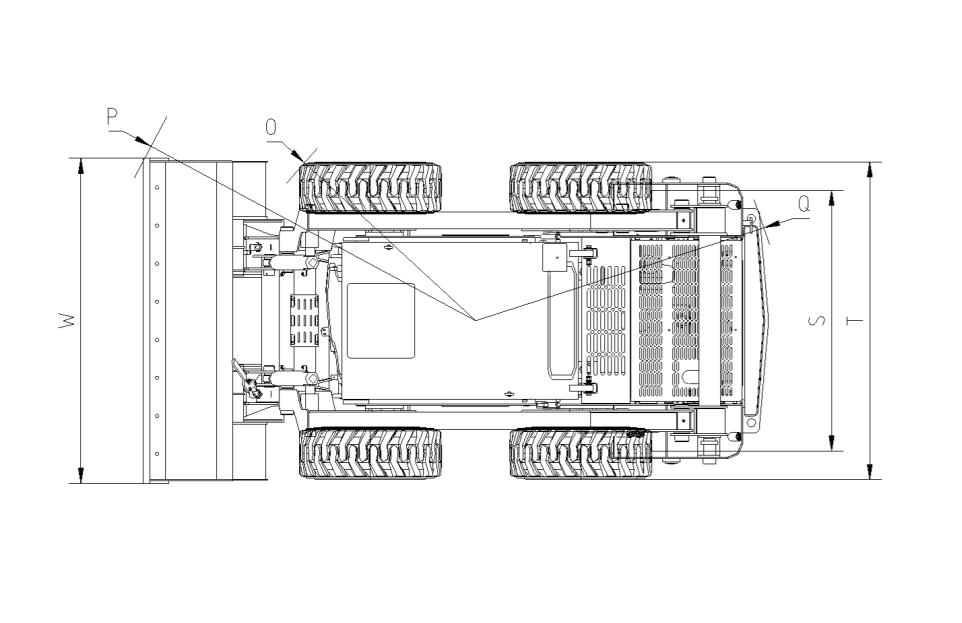

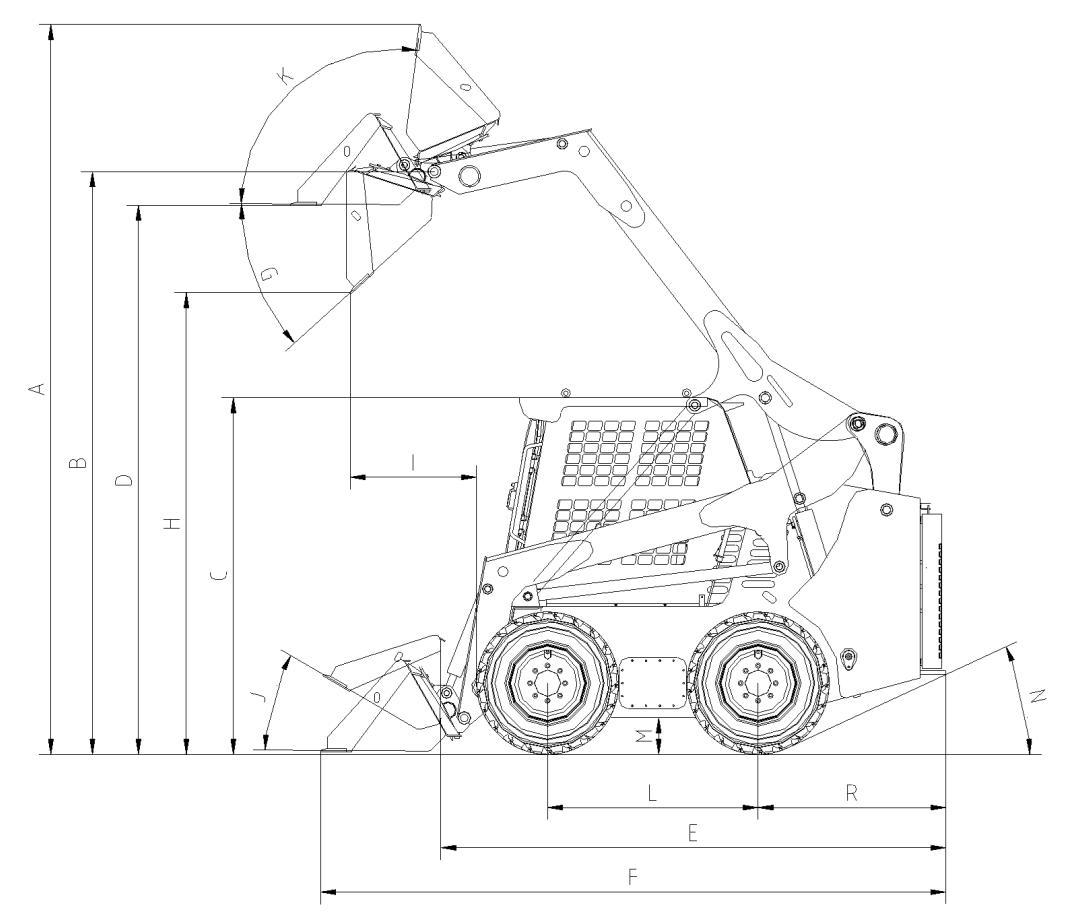

📏 Complete & Reasonable Overall Dimensions

With a total machine width of 1850mm and compact body layout, it adapts to narrow space operation. The maximum operating height reaches 4224mm, dumping height 2672mm and dumping distance 730mm. Rich working angle parameters such as 42° dumping angle and 98° bucket tilt angle ensure flexible and diverse unloading and construction methods.

🛞 Stable Chassis & Passability Design

Reasonable 1227mm wheelbase, 215mm ground clearance and 25° departure angle greatly promote off-road passing performance. Optimized front and rear turning radius and rear overhang structure realize in-situ skid steering, small turning range and flexible maneuvering, suitable for complex and narrow working sites.

⛽ Large-Capacity Fuel & Durable Configuration

Equipped with 90L large-capacity fuel tank, which effectively extends continuous working time and reduces frequent refueling. The whole machine is made of high-strength steel structure with wear-resistant accessories, stable overall structure, strong impact resistance, and adapts to long-term outdoor harsh working conditions.

🧰 Multi-Functional Expansion & Wide Application

With complete standard configuration and reliable overall matching, the H85 skid steer loader can be quickly installed with various auxiliary attachments. It realizes multi-purpose of one machine, covering loading, crushing, sweeping, digging and other operations, meeting diversified construction demands of agriculture, municipal administration, garden and engineering fields.
