S121D

Single-drum vibratory roller

Total Weight:

12000KG

Min. Turning Radius:

6250mm

Rated Power:

97.5Kw

  • Overall Dimensions (mm)
    5940×2275×2800
  • Engine Model
    Weichai CHINA-Ⅱ
  • Ground Clearance (mm)
    410

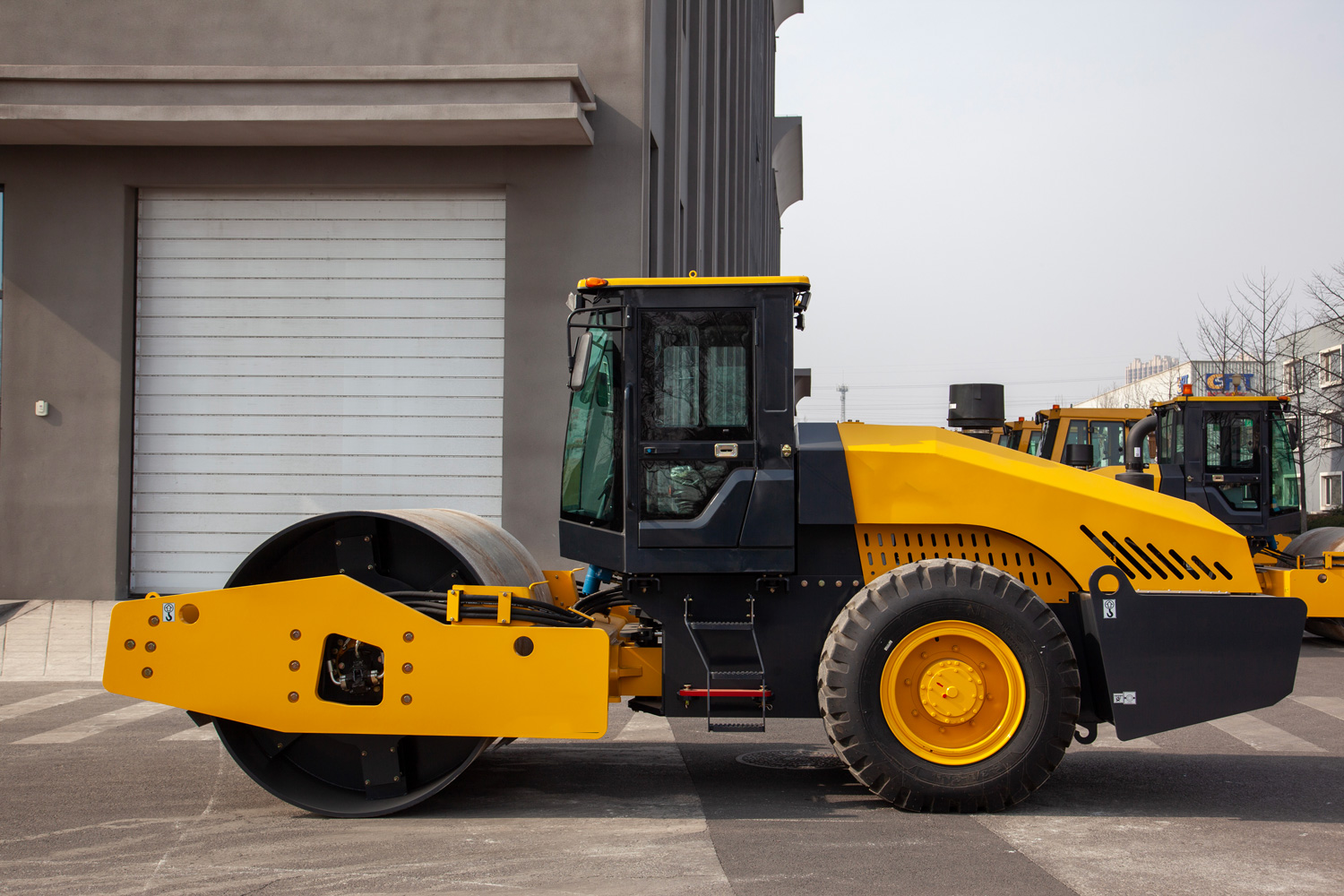

S121D Single-drum vibratory roller
S121D Single-drum vibratory roller

🔍 Details:S121D Single-drum vibratory roller

Item Value
Basic Information
Model S121S
Dimensions
Overall length (mm) 5940
Overall width (mm) 2275
Overall height (mm) 2800
Wheelbase (mm) 2980
Diameter of vibration drum (mm) 1500
Width of vibration drum (mm) 2100
Tire diameter (mm) 1350
Minimum ground clearance (mm) 410
Steel wheel thickness (mm) 25
Overall Performance
Operating mass (kg) 12000
Static linear load (N/cm) 285
Amplitude (mm) 1.6
Vibrating frequency (Hz) 30
Centrifugal force (kN) 170
Speed range (km/h) 0-9
Gradeability (%) 30
Turning radius (mm) 6250
Power Performance
Engine brand Weichai
Emission standard CHINA-II
Engine power (kW) 97.5
Drive Axle
Drive axle Fenyi
Hydraulic System
Drive motor Hytek
Vibration motor Tianji
Drive pump Hytek
Vibrate pump Tianji
