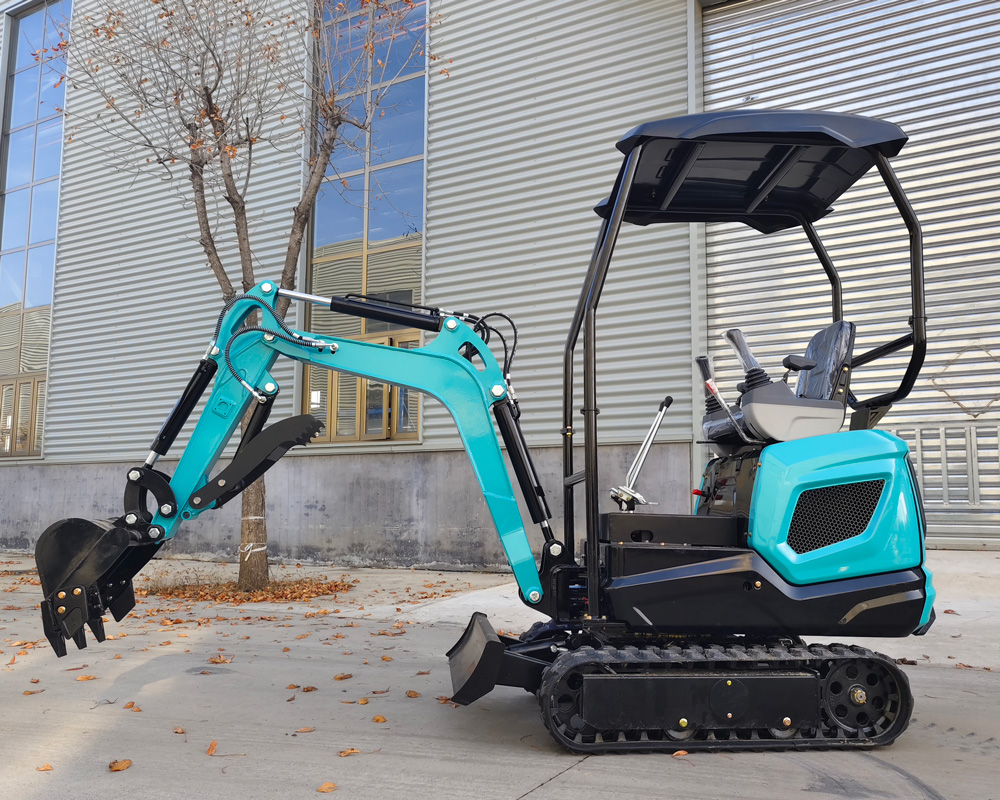

small hydraulic excavator

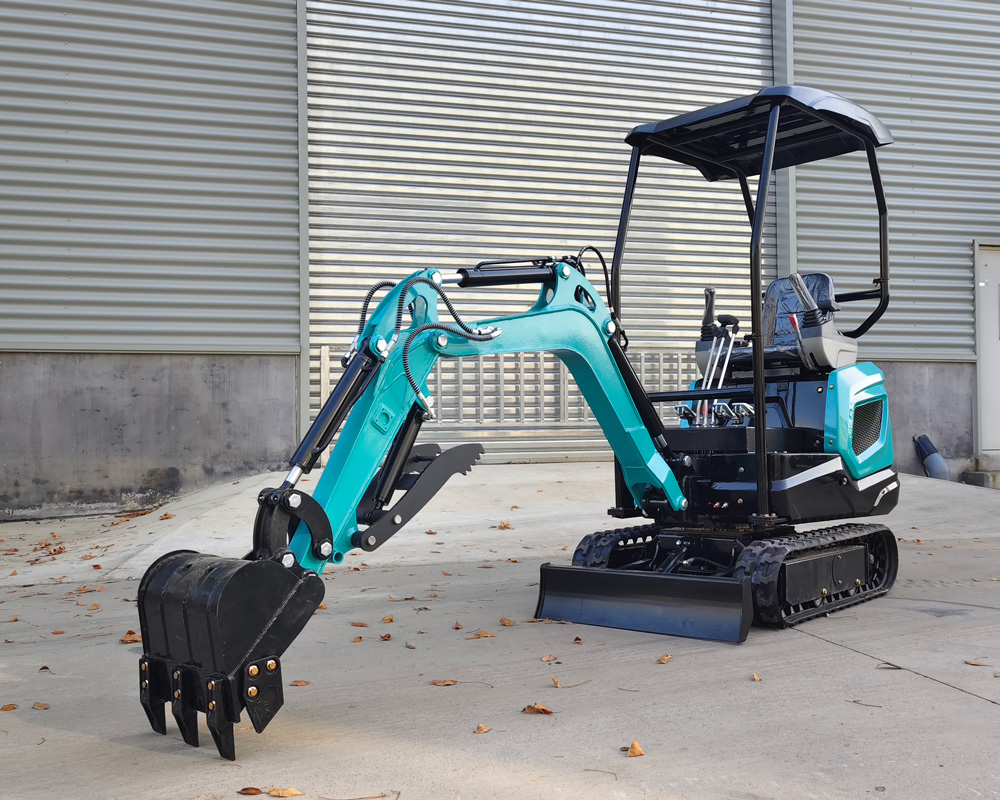

0.8 ton excavator

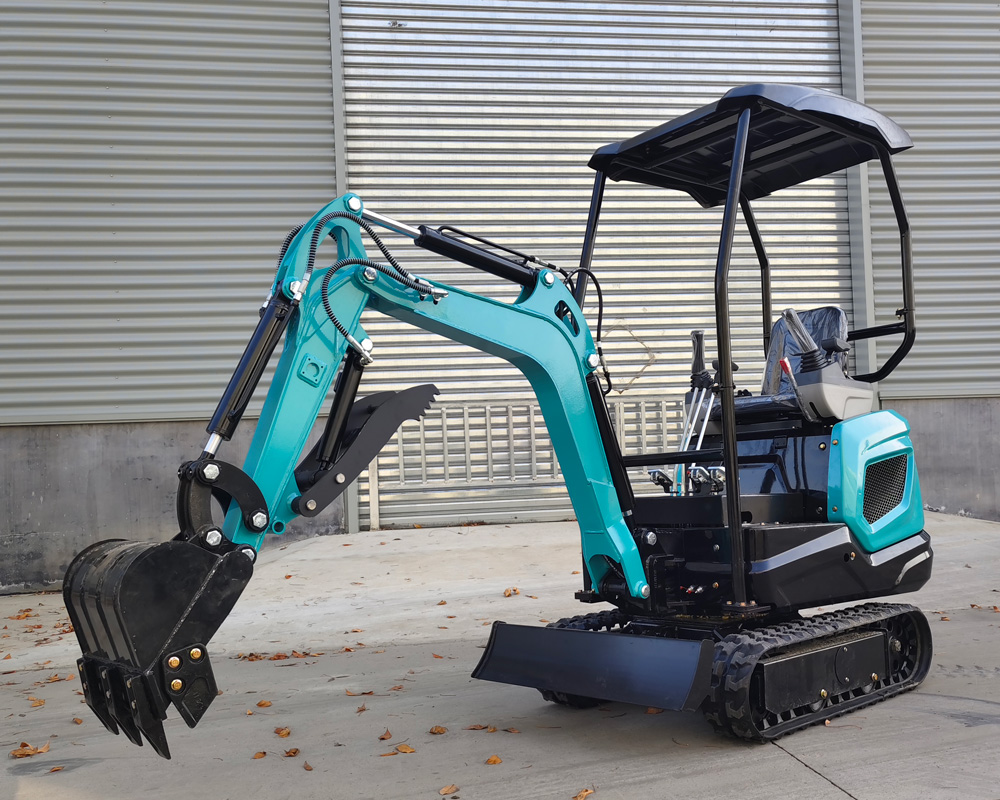

Mini excavator
Mini excavator Engine
small hydraulic excavator
0.8 ton excavator
Mini excavator
Mini excavator Engine

SH08HP

Mini Excavator

Total Weight:

840KG

Bucket Capacity:

0.017m³

Rated Power:

7.6Kw

  • Overall Dimensions (mm)
    2820×943×2220
  • Engine Model
    KOOP 192F
  • Travel Speed (km/h)
    2.1

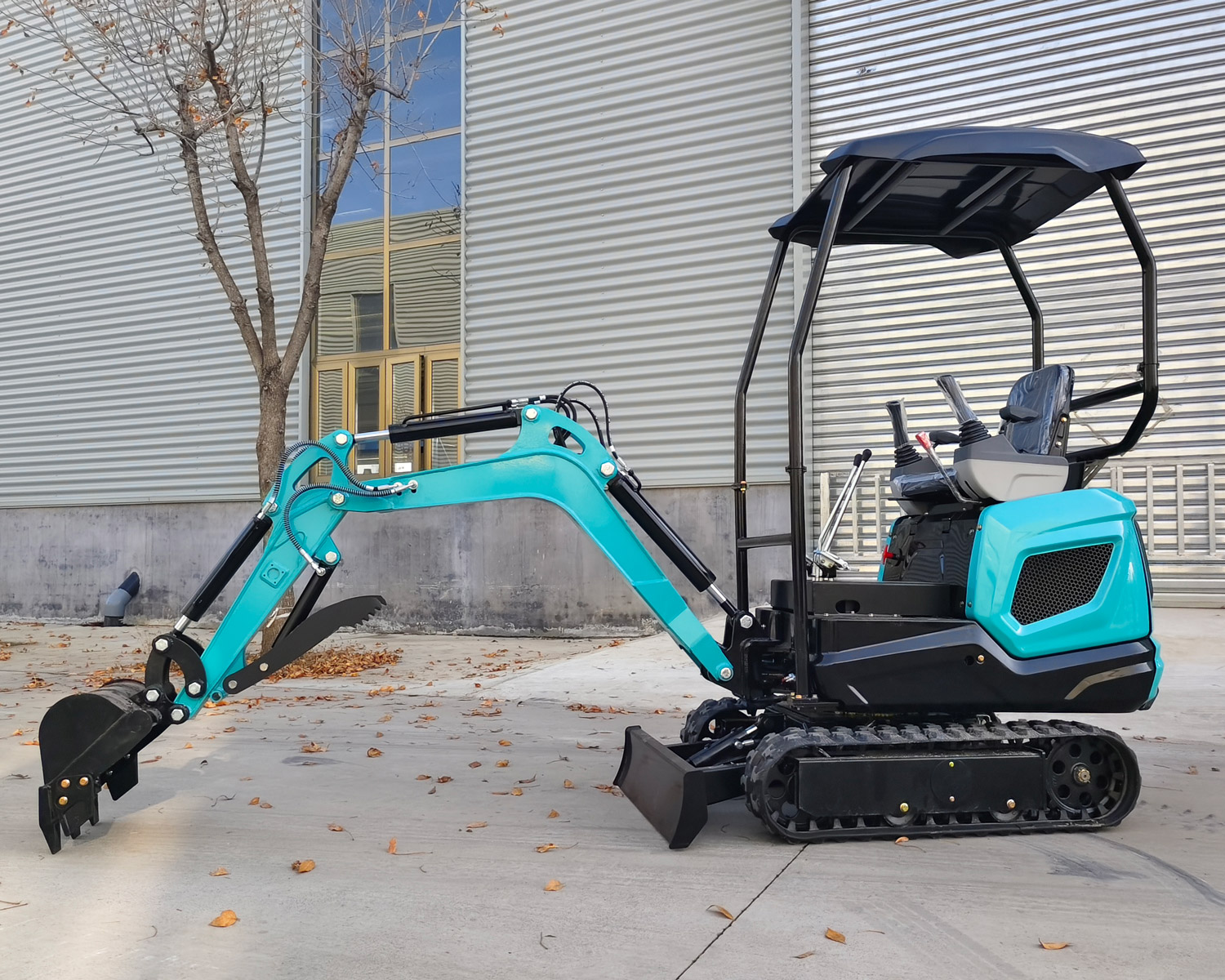

SH08HP Mini Excavator
SH08HP Mini Excavator

🔍 Details:SH08HP Mini Excavator

SH08HP Hydraulic Pilot Mini Crawler Excavator Ultra-Small Compact Digger

The SH08HP Hydraulic Pilot Mini Crawler Excavator is an ultra-compact micro excavator designed with hydraulic pilot control, featuring ultra-small overall dimensions and lightweight 840kg operating weight. Equipped with KOOP 192 engine of 7.6 kW power, it has delicate bucket capacity and flexible traveling & rotating performance. With 360° full rotation, compact working range and integrated bulldozer function, it is ideal for indoor demolition, garden trimming, farmland micro-trenching and narrow space fine construction work.

📐 Ultra-Compact Mini Body Dimension

Total length 2820mm, total width 943mm, total height 2220mm; crawler width 180mm, crawler length 1257mm and body width 845mm, ultra-narrow and ultra-short body perfectly adapts to courtyards, greenhouses and ultra-narrow construction passages.

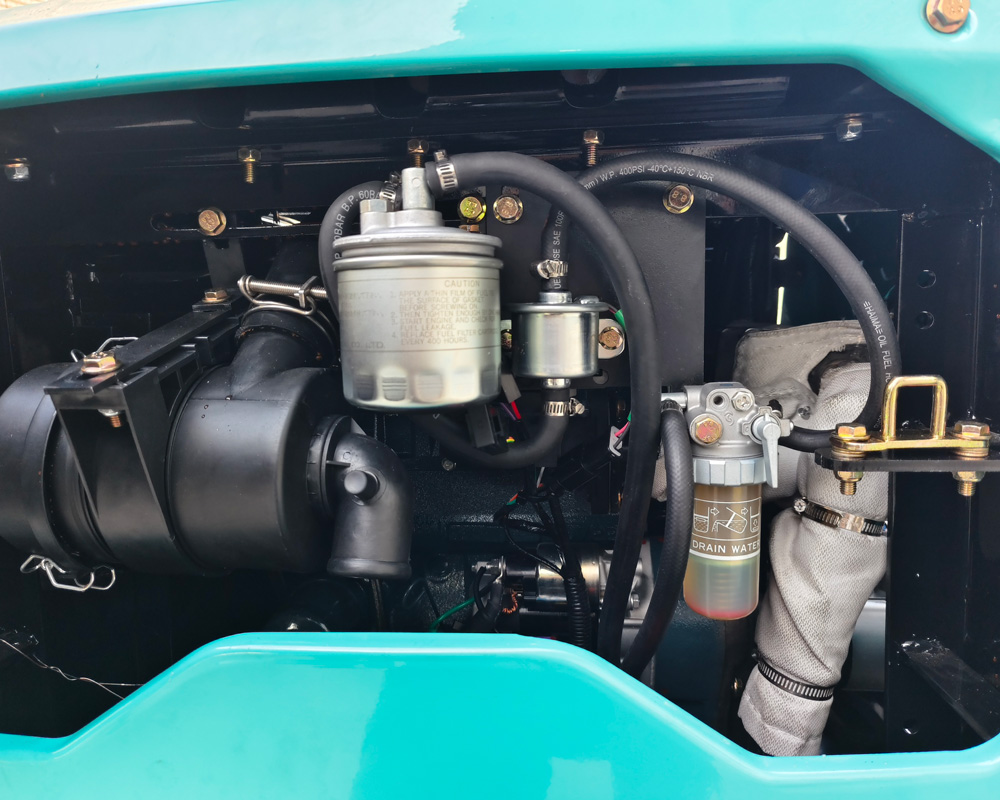

🔧 Koop 192 Low Fuel Consumption Power Engine

Adopts KOOP 192 engine with 7.6 kW rated power, featuring low fuel consumption, stable operation and easy maintenance, perfectly matching daily light-duty micro-excavation work demands.

⚖️ 840kg Lightweight Portable Body

The whole machine operating weight is only 840kg, light and easy to transport, no pressure on small road surface and lawn construction, bringing high flexible mobility.

🪣 0.017m³ Precision Small Bucket

Configured with 0.017m³ fine bucket capacity, suitable for fine digging, trenching and greening trimming, realizing accurate operation in small-scale engineering.

🚀 Stable Low-Speed Travel & Slewing Performance

2.1 km/h walking speed and 8 r/min rotation speed ensure smooth and gentle operation; 285mm platform ground clearance meets daily small obstacle crossing on flat and rugged ground.

🔄 360° Full Rotation Hydraulic Pilot Control

Hydraulic pilot control matches 360° unlimited swing angle, with left 45° and right 55° rolling angle, flexible and sensitive operation without dead working angle.

⛰️ Professional Mini Working Range

Max digging height 1340mm, max dumping height 1550mm, max digging depth 1340mm and max digging radius 2600mm, fully covering all kinds of small-scale digging and loading construction needs.

🛡️ Practical Mini Bulldozer Auxiliary Function

Bulldozer max digging depth 210mm and max raising height 163mm, convenient for site leveling, backfilling and simple obstacle removal, one machine meets multiple construction purposes.

SH08HP Hydraulic Pilot Mini Crawler Excavator — Technical Parameters
Dimensions
Total length (mm)2820
Total width (mm)943
Total height (mm)2220
Crawler width (mm)180
Crawler length (mm)1257
Body width (mm)845
Engine
Engine modelKoop 192 / 7.6 kW
Performance Parameters
Operating weight (kg)840
Bucket capacity (m³)0.017
Walking speed (km/h)2.1
Rotation speed (r/min)8
Platform ground clearance (mm)285
Swing angle (°)360
Angle of roll (°)Left 45° / Right 55°
Working Range
Max. digging height (mm)1340
Max. dumping height (mm)1550
Max. digging depth (mm)1340
Max. digging radius (mm)2600
Bulldozer max. digging depth (mm)210
Bulldozer max. raising height (mm)163
