SH08

🏗️ SH08 Mini Crawler Excavator – Compact & Versatile 0.8 Ton Digging Machine

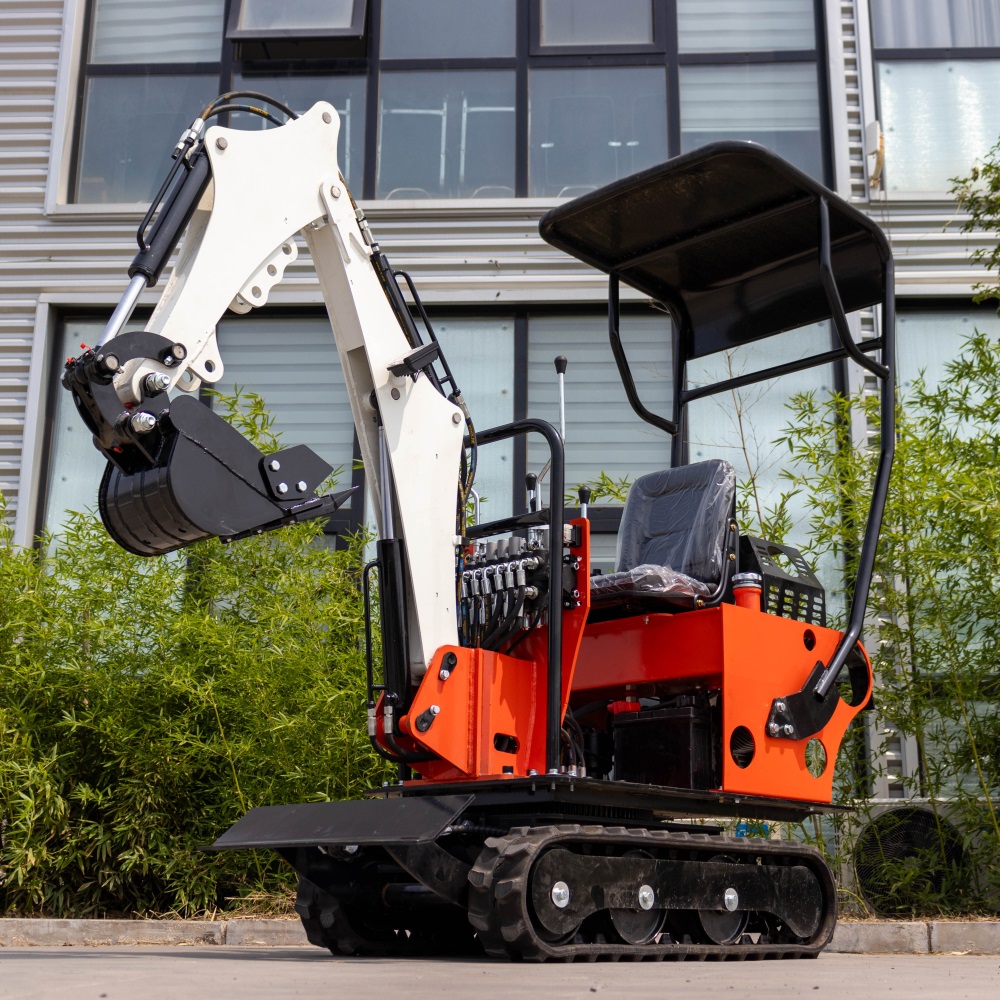

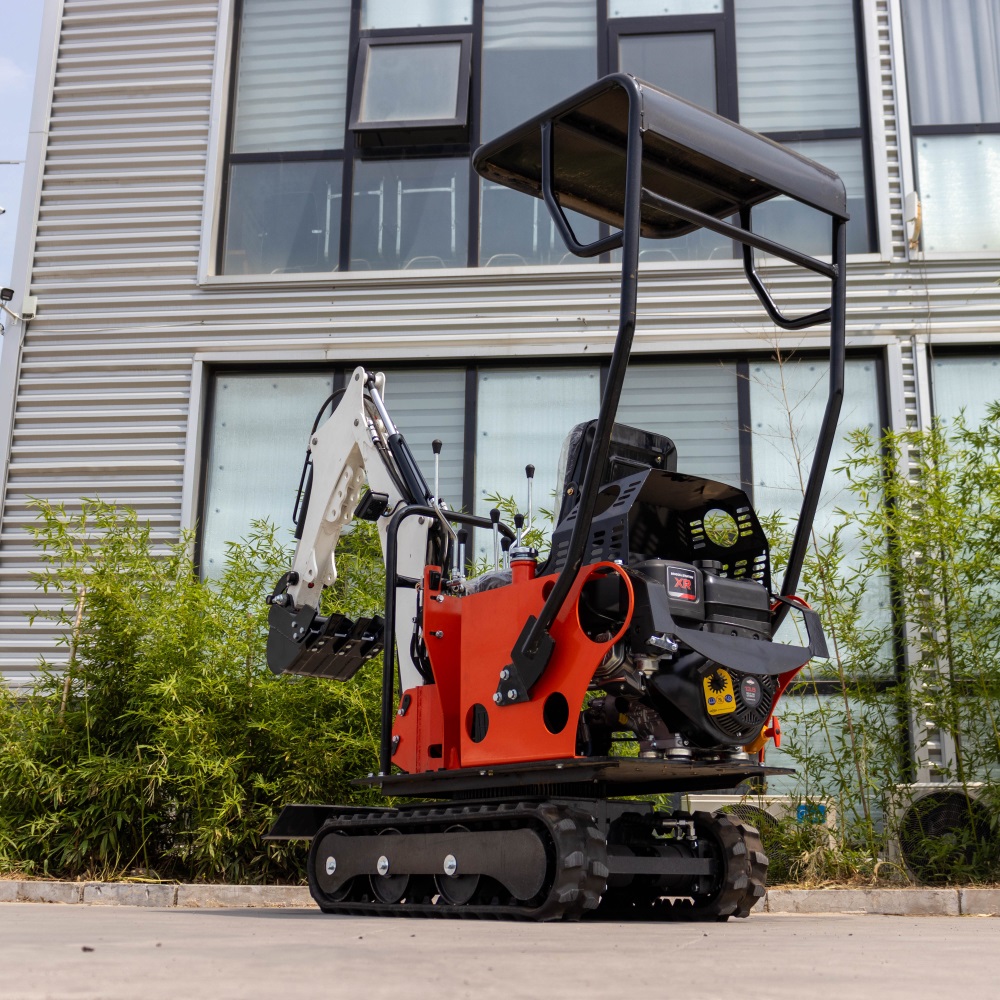

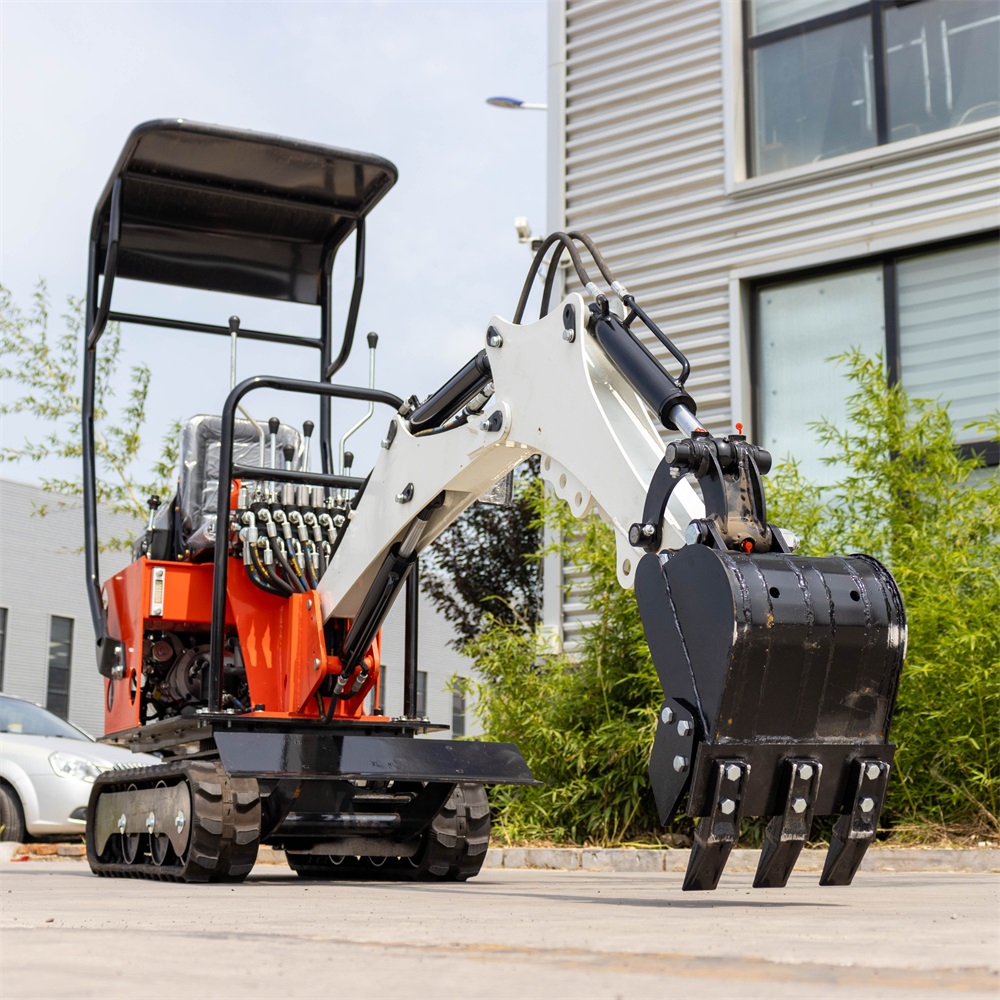

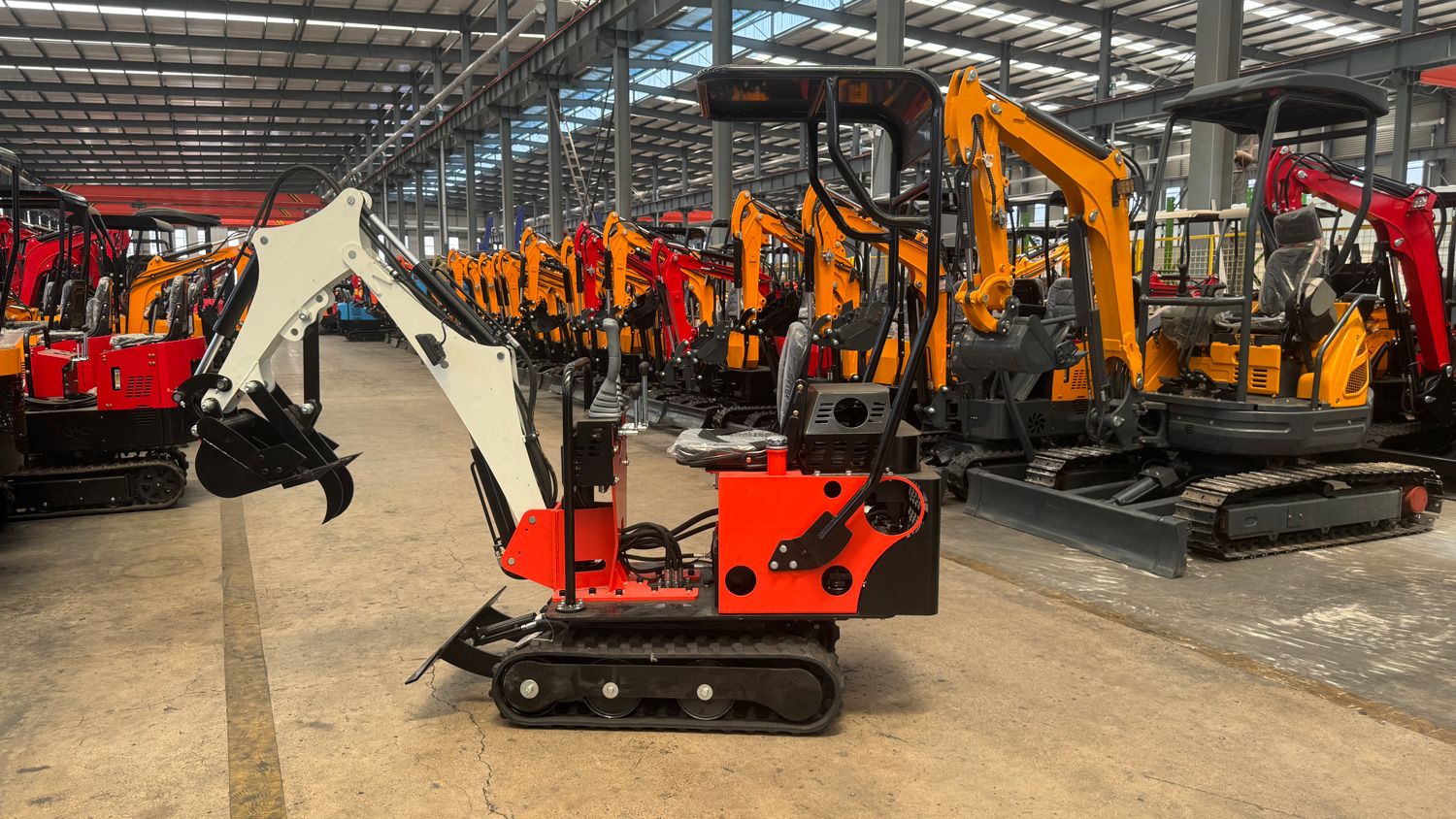

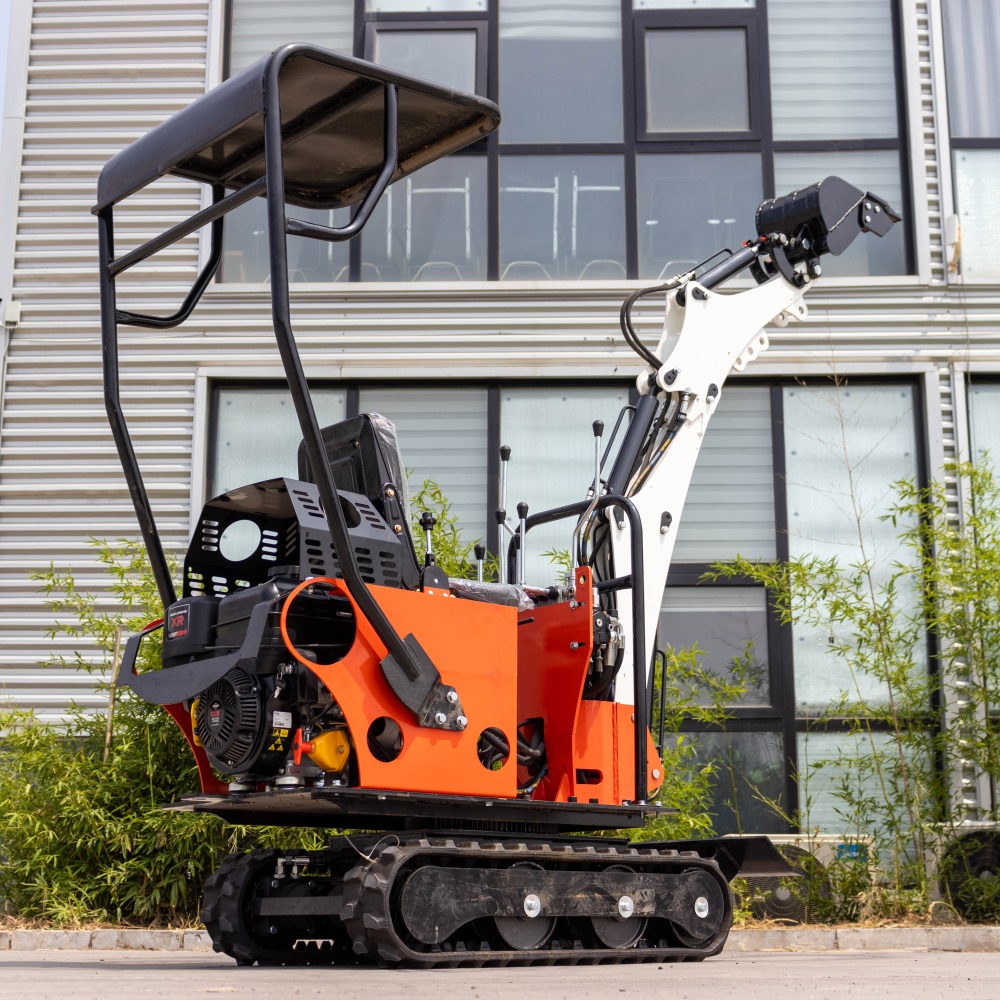

The SH08 mini crawler excavator is a compact, lightweight, and highly maneuverable digging solution, with an operating weight of just 800kg. It features a narrow body design, stable tracked chassis, and flexible working performance, making it ideal for small-scale earthmoving, landscaping, indoor demolition, farm work, and construction in confined spaces.

🔋 Reliable Power Configuration

The SH08 mini excavator is equipped with a KOOP 192F engine, delivering rated power of 7kW~7.5kW, with BRIGGS & STRATTON as an optional power source. It provides stable and sufficient power for digging and dozing operations, with low fuel consumption and easy maintenance, suitable for long hours of light-duty construction work.

💪 Strong Digging & Loading Performance

With a bucket capacity of 0.025m³ and a bucket width of 340mm, the SH08 delivers a maximum digging force of 7.5kN. It efficiently handles small-scale digging, trenching, and material loading tasks, offering stable and reliable performance for garden renovation, pipeline installation, and farm maintenance projects.

⚙️ Simple & Efficient Hydraulic System

Adopting a single gear pump with a working pressure of 14MPa, the hydraulic system ensures smooth lifting, slewing, and digging actions. The simple yet robust design minimizes failure points, reduces maintenance needs, and keeps operating costs low for small business owners and rental fleets.

🚜 Compact Chassis & Excellent Maneuverability

Designed with ultra-narrow dimensions: 720-780mm total width, 1300mm height, and 2430mm length. The tracked undercarriage features 150mm wide tracks, 1140mm ground contact length, and only 80mm minimum ground clearance. Combined with a 1100mm minimum swing radius, the machine can easily navigate through doorways, alleys, and tight construction sites.

📏 Complete Working Range for Versatile Applications

The SH08 offers a wide range of working parameters: max digging distance of 2450mm, max digging depth of 1200mm, max digging height of 2350mm, and max dumping height of 1600mm. It also features a bulldozer blade with 120mm upgrade height and 200mm digging depth, enabling it to level ground, push material, and stabilize itself on uneven terrain.

🏞️ Stable Travel & Off-Road Capability

With a travel speed of 2.2km/h, gradeability of 30°, and ground pressure of only 19kPa, the SH08 mini excavator performs reliably on soft ground, slopes, and uneven terrain. The low ground pressure prevents sinking, while the stable tracked chassis ensures safe operation in various working conditions.

🔄 Smooth Slewing & Compact Operation

Equipped with a 12 rpm swing speed, the SH08 delivers smooth and precise slewing movements, ideal for accurate material placement and loading in confined spaces. The compact swing radius eliminates the need for extra room to rotate, making it perfect for indoor demolition and urban construction projects.

🛠️ Low Operating Cost & Easy Maintenance

The SH08 mini excavator is designed for simplicity and low maintenance. With a lightweight structure, easily accessible components, and proven engine and hydraulic parts, it keeps daily maintenance and repair costs minimal. It is an affordable, reliable choice for small contractors, rental businesses, and private users.
