ShanBo

SH25A

Mini Excavator

Total Weight:

2400KG

Bucket Capacity:

0.1m³

Rated Power:

20Kw

  • Overall Dimensions (mm)
    4200×1350×2240
  • Engine Model
    ChangChai 390

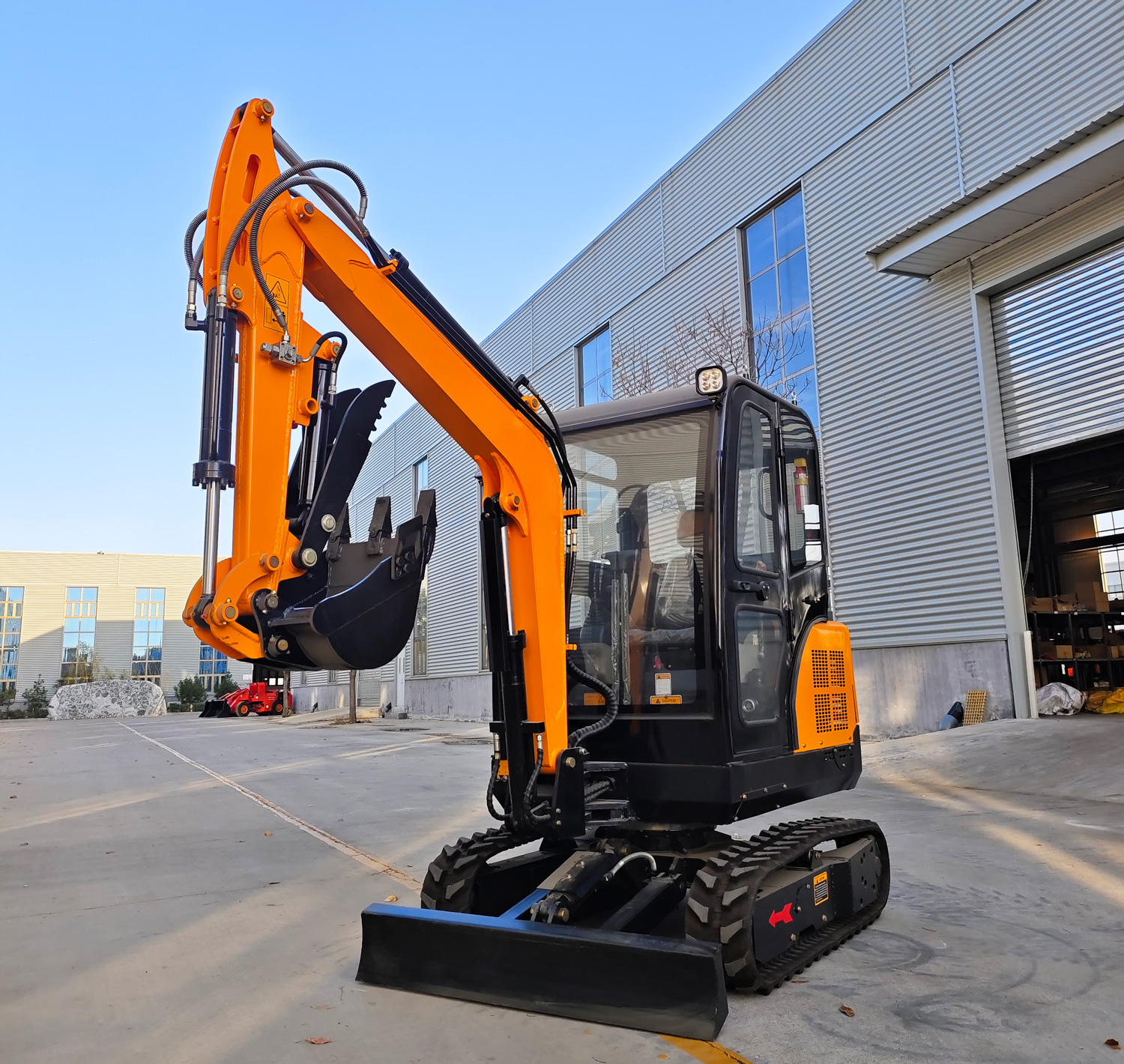

SH25A Mini Excavator
SH25A Mini Excavator

🔍 Details:SH25A Mini Excavator

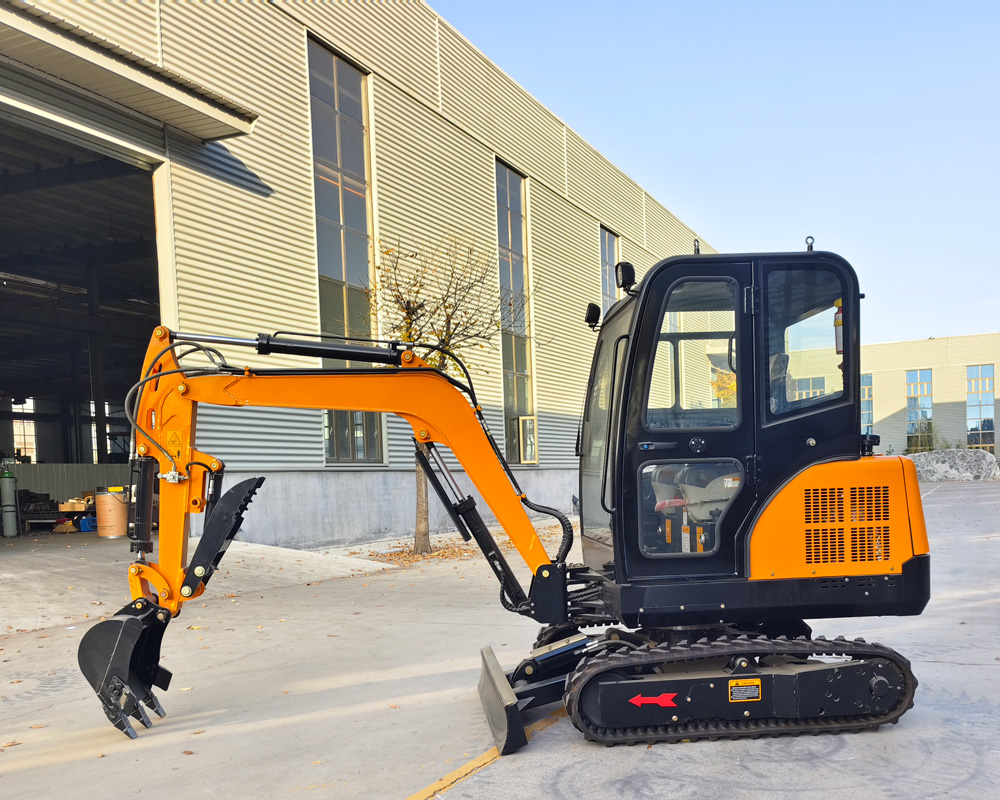

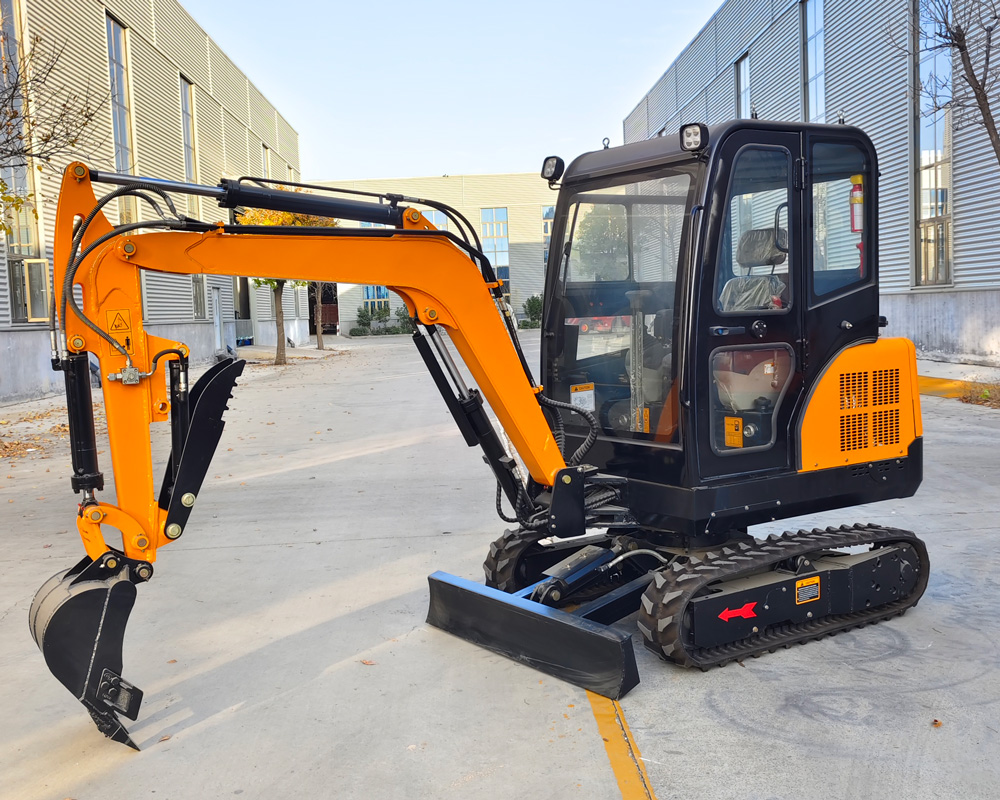

SH25A Mini Crawler Excavator Efficient Multi-Scenario Construction Digger

The SH25A Mini Crawler Excavator adopts streamlined overall dimension design, equipped with Changchai 390 engine with 20 kW stable power output. It features 2400kg standard operating weight and upgraded 0.1m³ large bucket capacity, matched with steady traveling and rotating performance. With 360° full rotation capability, superior working range and practical bulldozer auxiliary function, it is perfectly suitable for municipal engineering, garden landscaping, farmland renovation and earthwork excavation projects, balancing flexibility, power and working efficiency.

📐 Streamlined Overall Dimension Design

Total length 4200mm, total width 1350mm, total height 2240mm; crawler width 230mm, crawler length 2000mm and body width 1350mm, reasonable structure layout ensures flexible passing and stable standing on various construction sites.

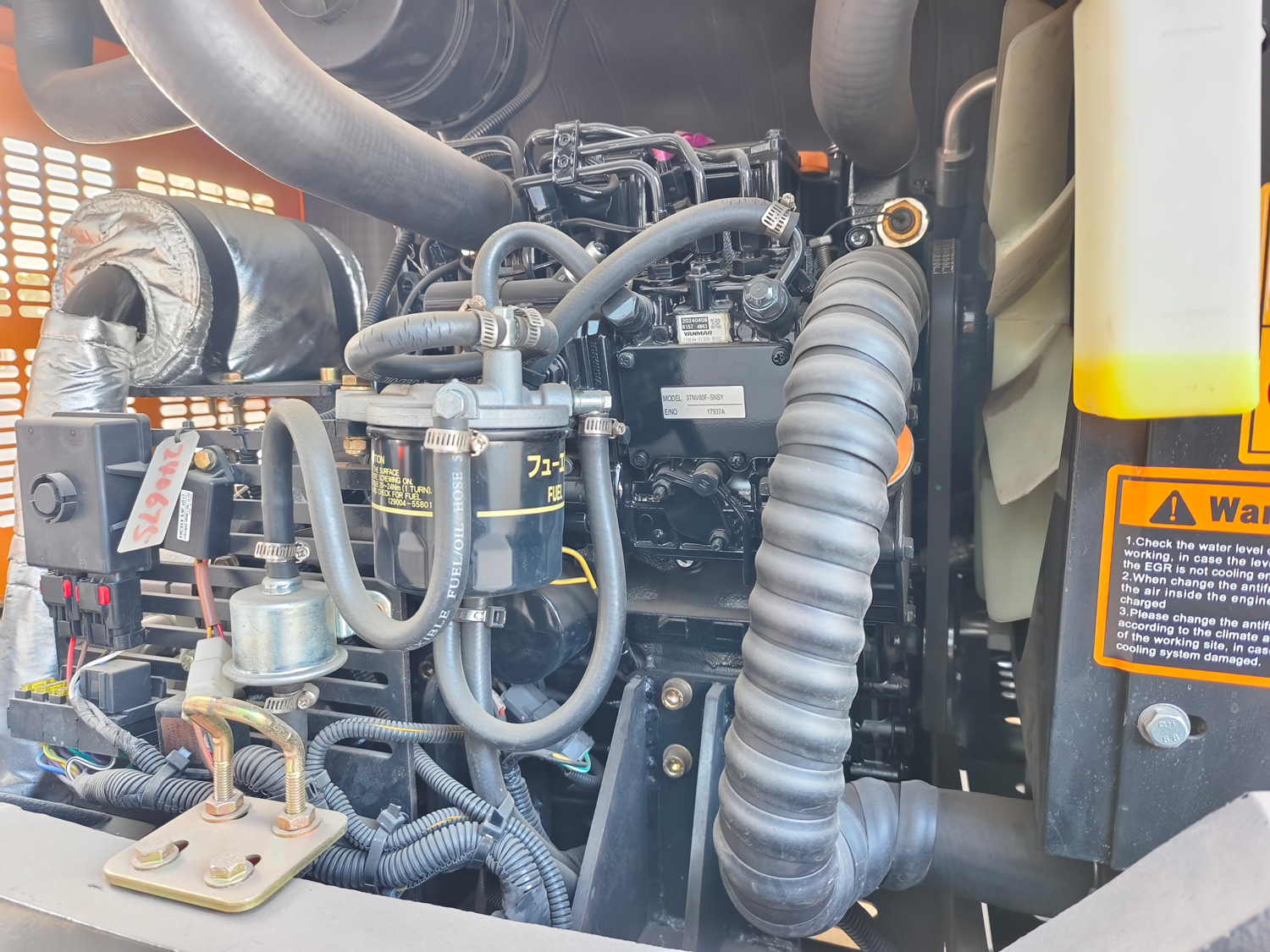

🔧 Changchai 390 Reliable Power Engine

Powered by Changchai 390 engine with 20 kW rated power, characterized by stable power output, low fuel consumption and strong durability, supporting long-time continuous heavy-duty operation.

2 Ton Excavator Engine

⚖️ 2400kg Standard Stable Operating Weight

The whole machine operating weight is 2400kg, which optimizes body stability and maneuverability, adapting to slope, muddy and complex terrain construction environments.

🪣 0.1m³ Large Volume Bucket Capacity

Equipped with 0.1m³ high-capacity bucket, greatly improving excavation and earthmoving efficiency, suitable for large-scale soil digging, loading and material handling operations.

🚀 Smooth Travel And Rotation Performance

2.7 km/h walking speed and 10 r/min rotation speed guarantee flexible site transfer and smooth slewing; 295mm platform ground clearance enhances obstacle crossing ability on rugged roads.

🔄 360° Full Rotation No Dead Angle Operation

Supports 360° free swing angle, with left 45° and right 55° rolling angle, realizing omnidirectional operation without blind spots and greatly improving construction flexibility.

⛰️ Excellent Super Working Range

Max digging height 3635mm, max dumping height 2385mm, max digging depth 2360mm and max digging radius 4810mm, fully meeting medium and large range excavation and engineering operation needs.

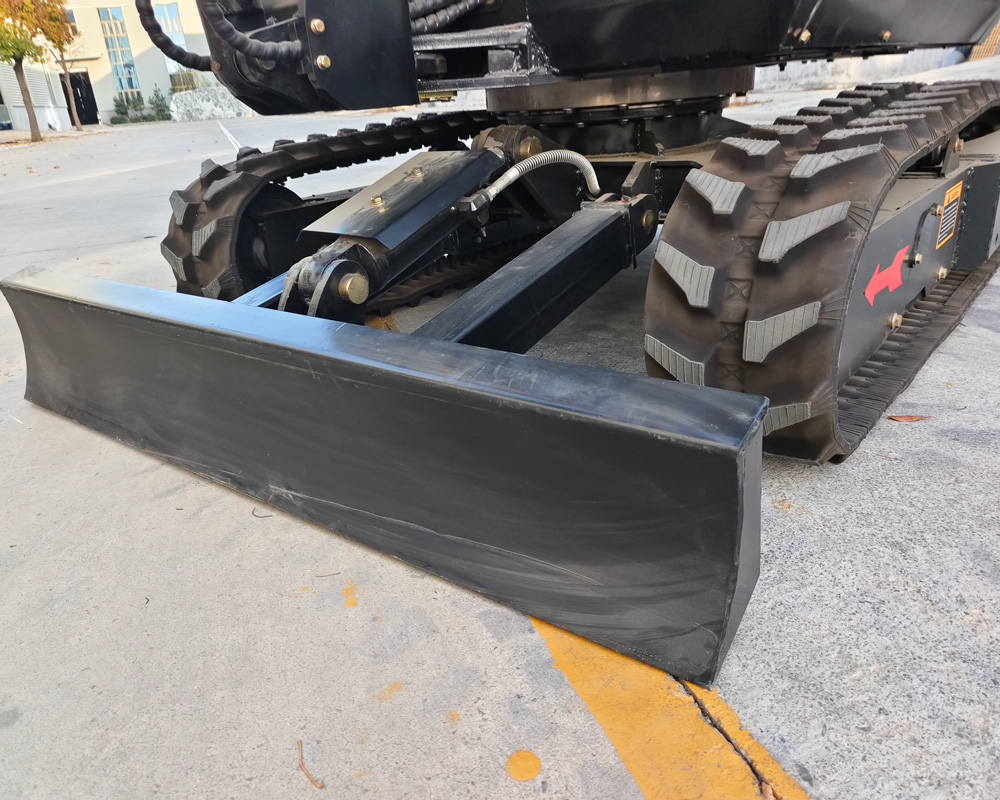

🛡️ Multifunctional Bulldozer Auxiliary System

Bulldozer max digging depth 297mm and max raising height 230mm, convenient for site leveling, backfilling and obstacle cleaning, realizing one machine for multiple purposes.

SH25A Mini Crawler Excavator — Technical Parameters
Dimensions & Weight
Total length (mm)4200
Total width (mm)1350
Total height (mm)2240
Body width (mm)1350
Crawler width (mm)230
Crawler length (mm)2000
Operating weight (kg)2400
Engine & Performance
Engine modelChangchai 390 / 20 kW
Bucket capacity (m³)0.1
Walking speed (km/h)2.7
Rotation speed (r/min)10
Platform ground clearance (mm)295
Swing angle (°)360
Angle of roll (°)Left 45° / Right 55°
Working Range
Max. digging height (mm)3635
Max. dumping height (mm)2385
Max. digging depth (mm)2360
Max. digging radius (mm)4810
Bulldozer max. digging depth (mm)297
Bulldozer max. raising height (mm)230
