Mini Excavator
Total Weight:
2600KG
Bucket Capacity:
0.075m³
Rated Power:
20Kw

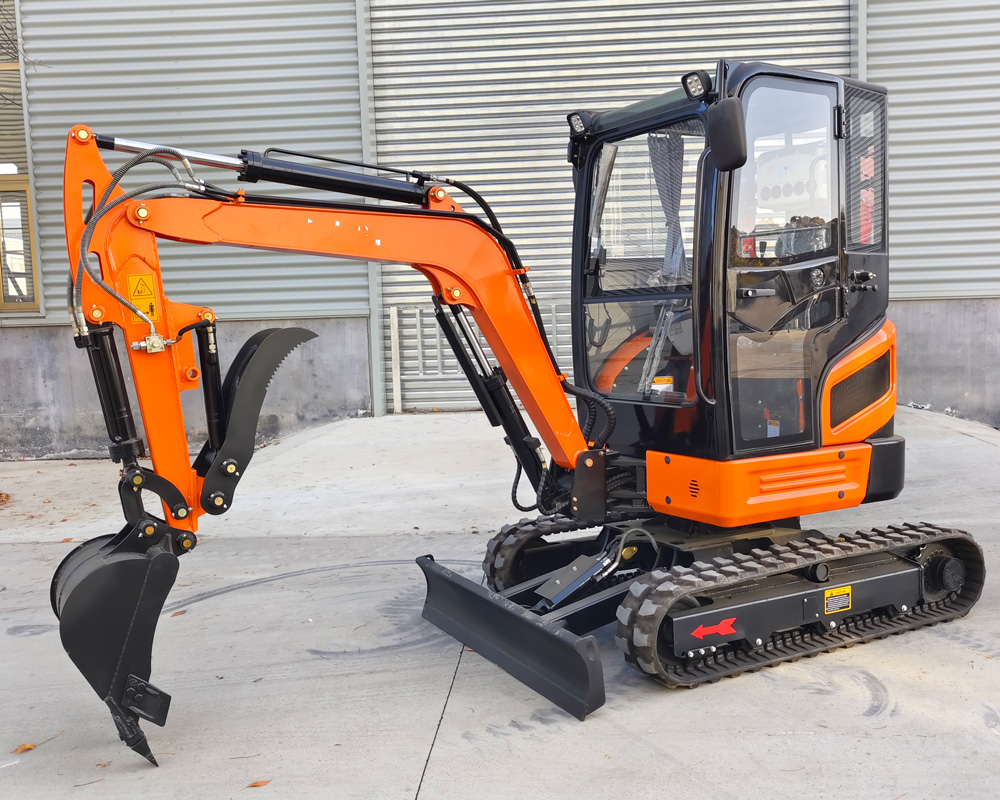

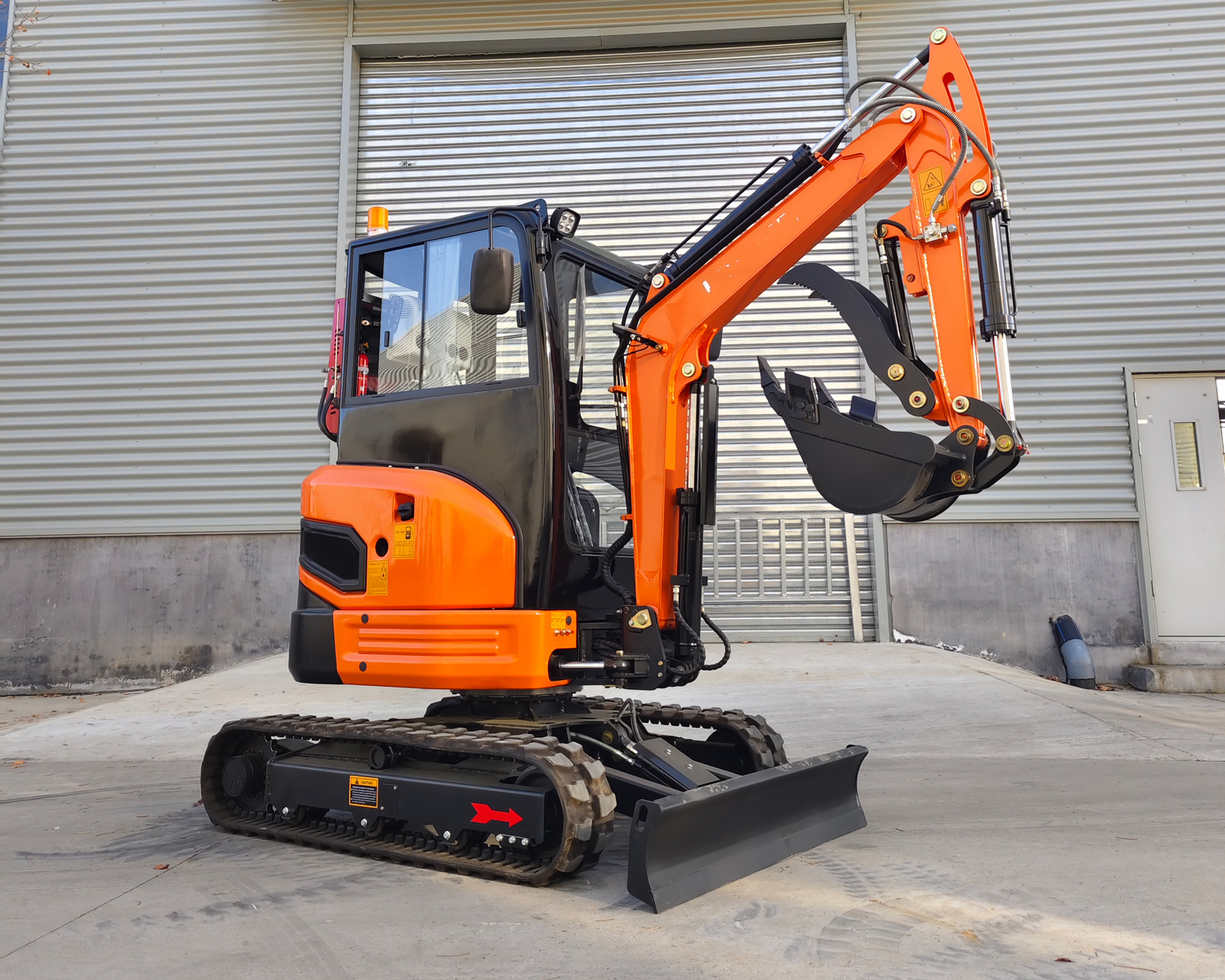

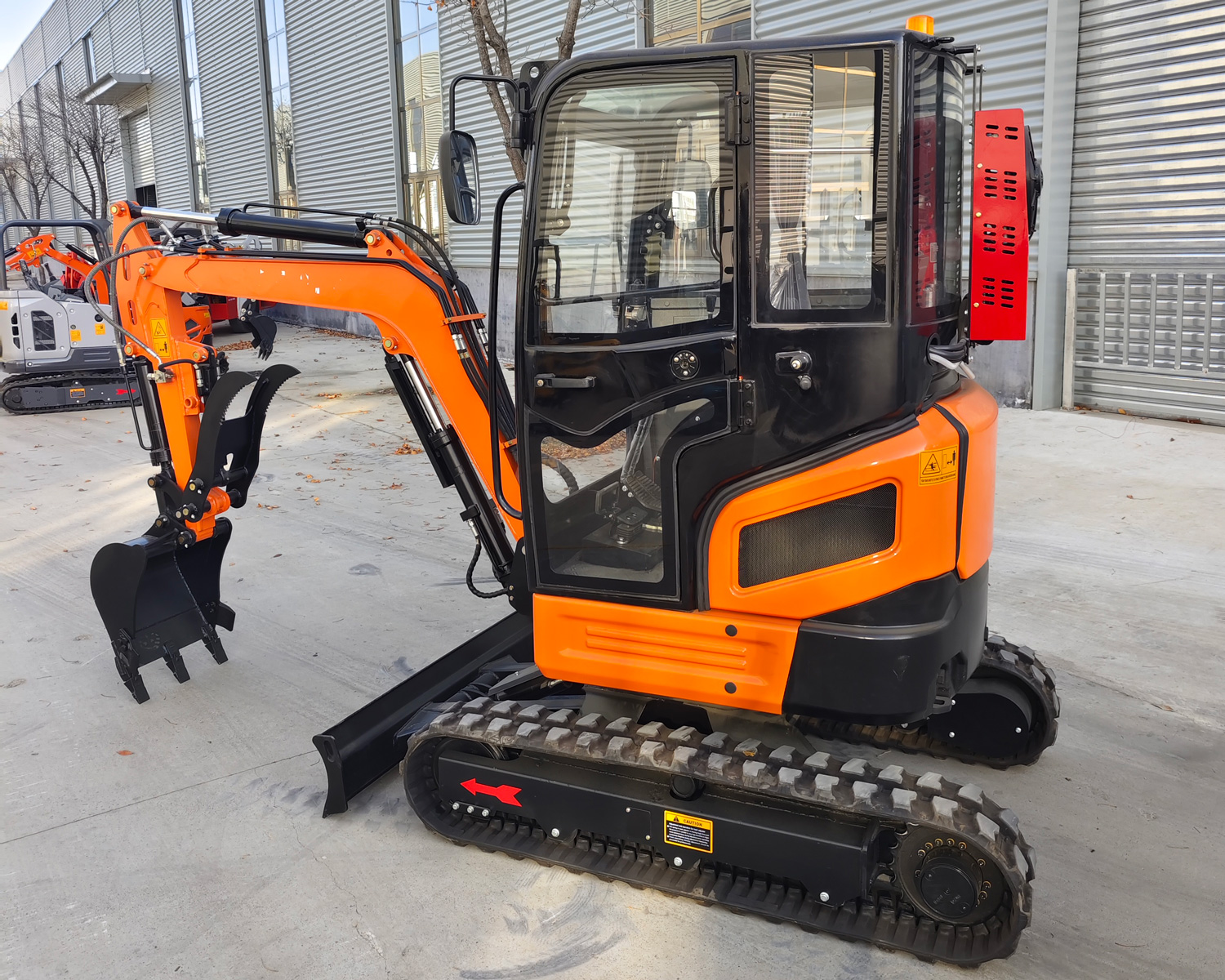

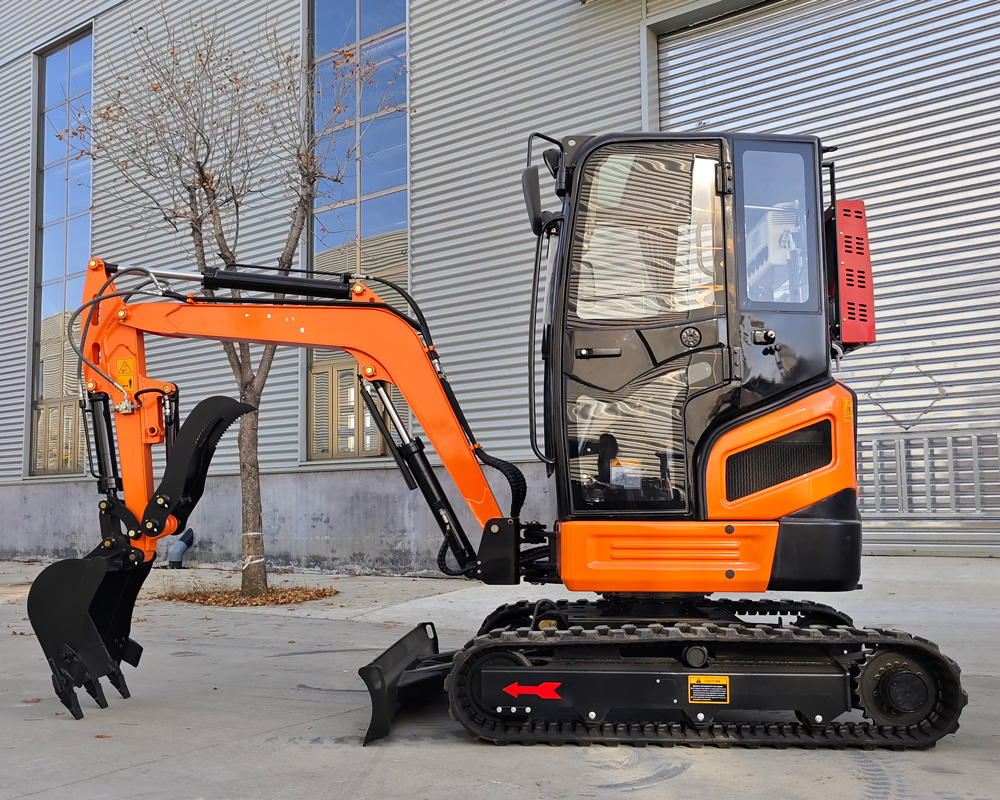

The SH30 Mini Crawler Excavator features a robust overall dimension design, equipped with Changchai 390 engine rated at 20 kW power. With 2600kg operating weight and upgraded 0.075m³ bucket capacity, it supports dual walking speed and 360° full rotation. Matched with professional working range data and bulldozer auxiliary configuration, this model is widely applicable for municipal reconstruction, earthwork excavation, farmland renovation and medium-scale construction projects, delivering stable power, high efficiency and strong terrain adaptability.

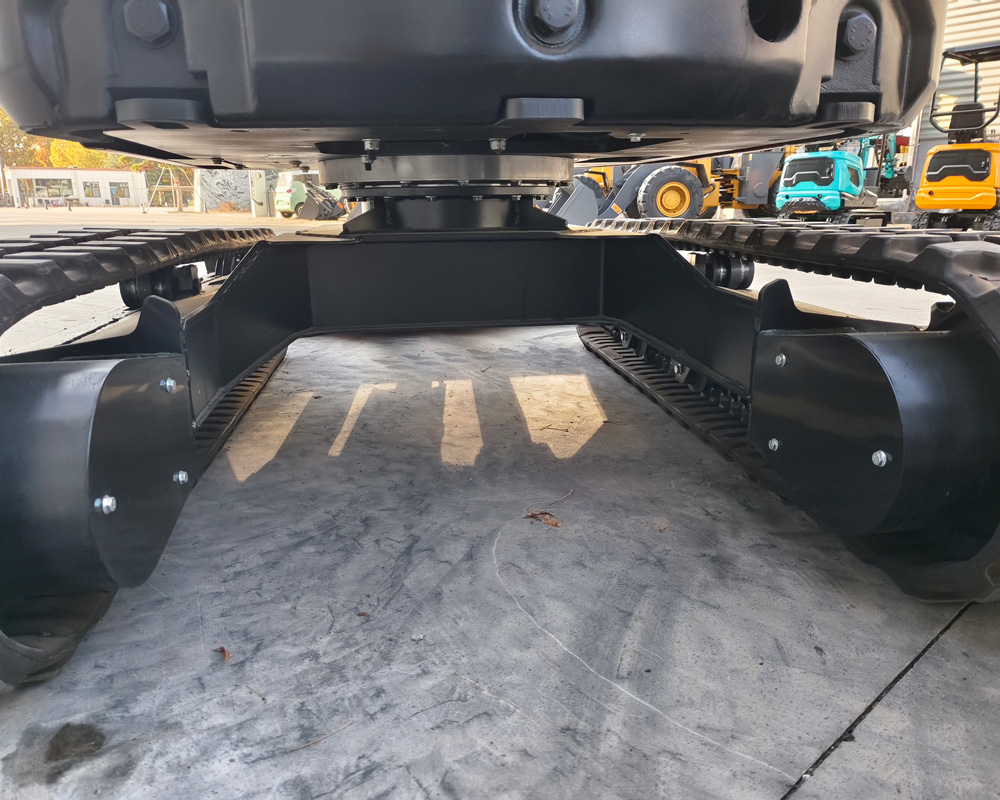

Total length 4100mm, total width 1500mm, total height 2450mm; crawler length 1950mm, crawler width 250mm and body width 1260mm, solid structure design brings better stability and passing performance on complex sites.
Adopts premium Changchai 390 engine with 20 kW power output, featuring stable power performance, low fuel consumption and reliable quality, suitable for long-term heavy load continuous operation.
The whole machine operating weight reaches 2600kg, effectively improving overall stability and anti-slip capability, adapting to muddy, slope and various harsh working terrains.
Equipped with 0.075m³ standard bucket capacity, greatly enhancing earthmoving and excavation efficiency, perfect for large volume soil digging and material handling operations.
Dual walking speed of 3.1 km/h and 2.0 km/h adapts to different working and moving scenarios; 12 r/min rotation speed matches 297mm platform ground clearance for excellent obstacle crossing ability.
Realizes 360° unrestricted slewing angle, with left 45° and right 55° rolling angle, achieving all-round dead-angle-free operation and improving construction flexibility greatly.
Max digging height 3457mm, max dumping height 2399mm, max digging depth 2724mm and max digging radius 1901mm, fully meeting medium depth excavation and loading construction requirements.
Bulldozer max digging depth 293mm and max raising height 191mm, convenient for site leveling, backfilling and obstacle removal, realizing one machine with multiple functions.
| SH30 Mini Crawler Excavator — Technical Parameters | |
|---|---|
| Dimensions | |
| Total length (mm) | 4100 |
| Total width (mm) | 1500 |
| Total height (mm) | 2450 |
| Crawler width (mm) | 250 |
| Crawler length (mm) | 1950 |
| Body width (mm) | 1260 |
| Engine | |
| Engine model | Changchai 390 / 20 kW |
| Performance Parameters | |
| Operating weight (kg) | 2600 |
| Bucket capacity (m³) | 0.075 |
| Walking speed (km/h) | 3.1 / 2.0 |
| Rotation speed (r/min) | 12 |
| Platform ground clearance (mm) | 297 |
| Swing angle (°) | 360 |
| Angle of roll (°) | Left 45° / Right 55° |
| Working Range | |
| Max. digging height (mm) | 3457 |
| Max. dumping height (mm) | 2399 |
| Max. digging depth (mm) | 2724 |
| Max. digging radius (mm) | 1901 |
| Bulldozer max. digging depth (mm) | 293 |
| Bulldozer max. raising height (mm) | 191 |
