SH22A

Mini Excavator

Total Weight:

2200KG

Bucket Capacity:

0.07m³

Rated Power:

18.1Kw

  • Overall Dimensions (mm)
    3966×1060×2280
  • Engine Model
    LAIDONG 385

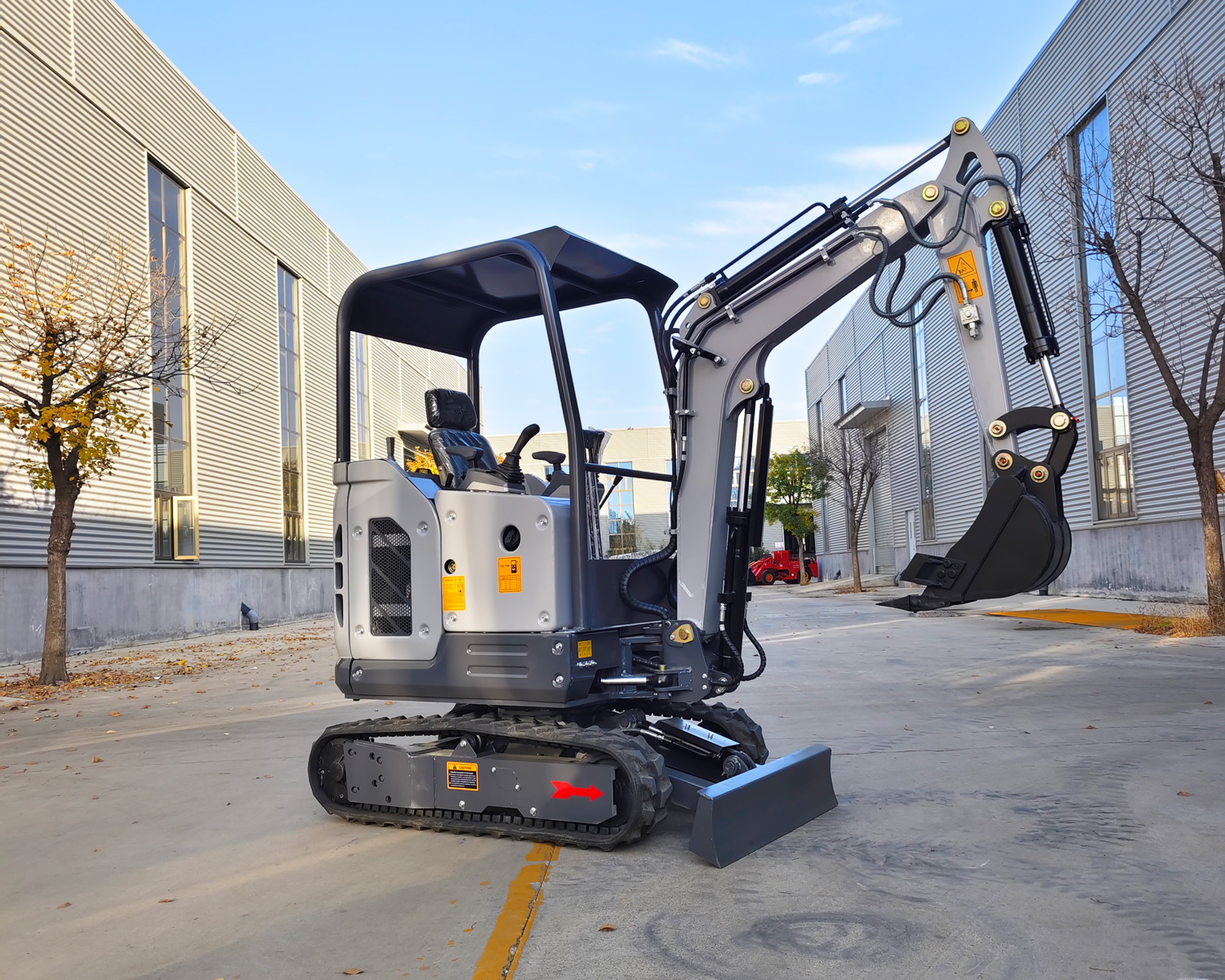

SH22A Mini Excavator
SH22A Mini Excavator

🔍 Details:SH22A Mini Excavator

SH22 Mini Crawler Excavator High Power Multifunctional Digger

The SH22 Mini Crawler Excavator adopts optimized overall dimension design, equipped with reliable Laidong 385 power engine and 2200kg stable operating weight. It features larger bucket capacity, faster walking speed and 360° full rotation performance, matched with superior working range and bulldozer auxiliary functions. Suitable for municipal engineering, garden construction, farmland development and various medium and small construction sites, it delivers strong power, flexible operation and high working efficiency.

📐 Optimized Integral Dimension Structure

Total length 3966mm, total width 1060mm, total height 2280mm; crawler length 1650mm, crawler width 230mm and body width 1060mm, with reasonable layout, stable body structure and strong site adaptability.

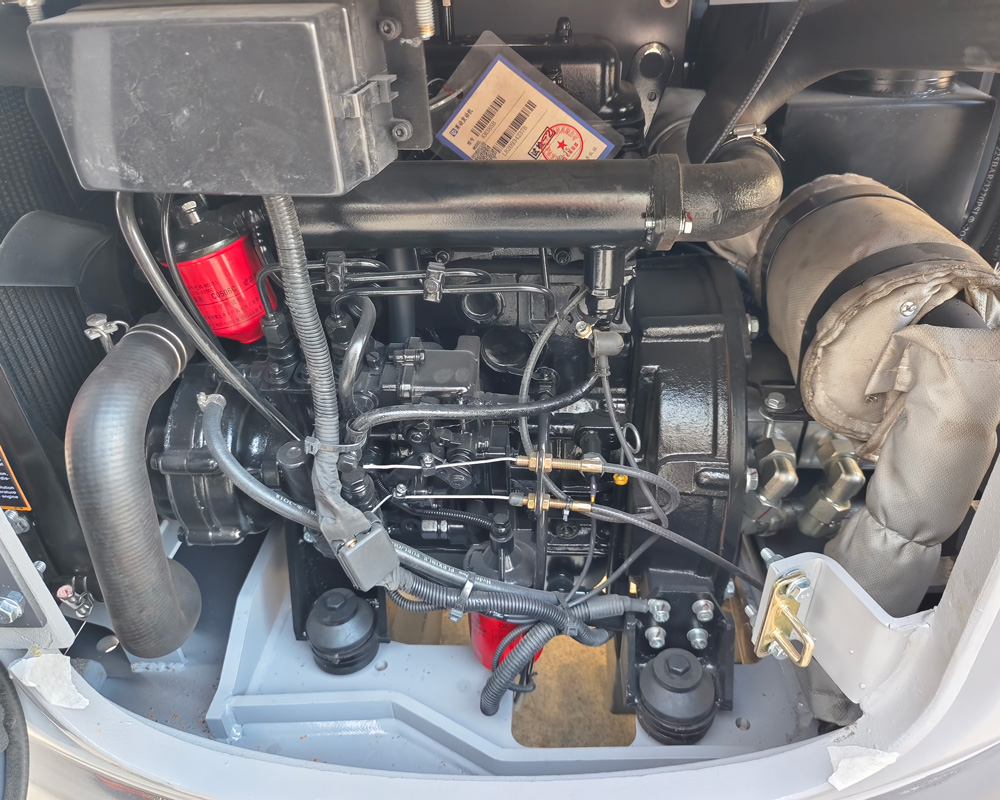

🔧 Laidong 385 High Performance Engine

Powered by Laidong 385 engine with 18.1 kW rated power, offering steady power output, low fuel consumption and outstanding durability for long-term continuous heavy-duty operation.

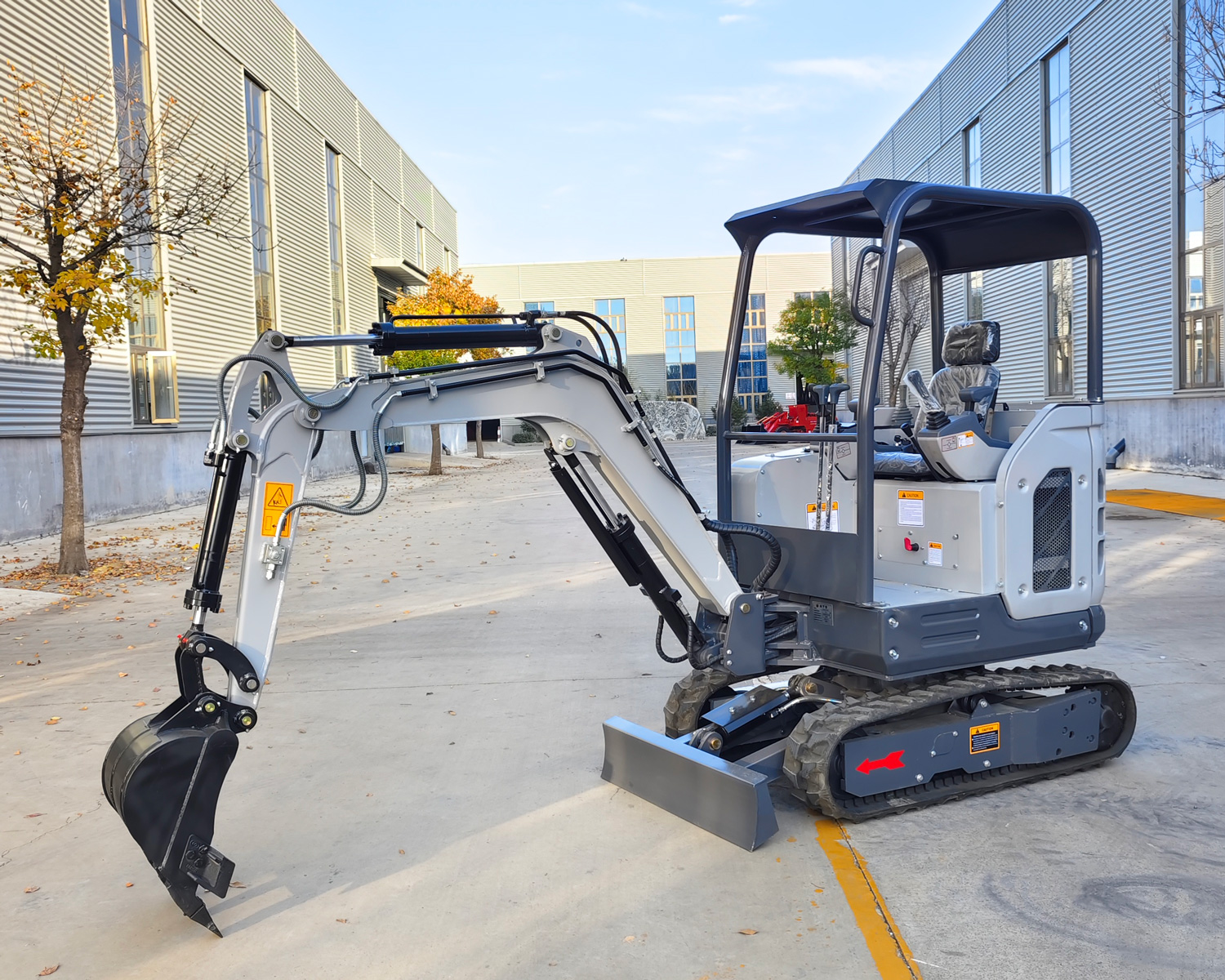

2 Ton Mini Excavator

⚖️ 2200kg Stable Operating Weight

The whole machine operating weight reaches 2200kg, greatly enhancing overall stability and anti-roll performance, adapting to complex terrain and long-time engineering operation.

🪣 0.07m³ Large Capacity Bucket

Configured with 0.07m³ standard bucket capacity, improving digging and loading efficiency obviously, suitable for large-volume soil excavation and material handling work.

🚀 Efficient Travel And Rotation Performance

3.4 km/h walking speed and 10 r/min rotation speed realize fast site transfer and flexible slewing; 390mm platform ground clearance improves obstacle-crossing ability on rugged roads.

🔄 360° Full Rotation Flexible Operation

Supports 360° free rotation, with left 45° and right 55° rolling angle, no dead-angle operation in all directions, greatly promoting construction flexibility and convenience.

⛰️ Superior Full Working Range

Max digging height 3427mm, max dumping height 2600mm, max digging depth 2752mm and max digging radius 4519mm, meeting various medium excavation and loading operation demands.

🛡️ Practical Bulldozer Auxiliary Function

Bulldozer max digging depth 297mm and max raising height 230mm, convenient for ground leveling, site tidying and obstacle clearing, realizing multi-purpose of one machine.

SH22 Mini Crawler Excavator — Technical Parameters
Dimensions
Total length (mm)3966
Total width (mm)1060
Total height (mm)2280
Crawler length (mm)1650
Crawler width (mm)230
Body width (mm)1060
Engine
Engine modelLaidong 385 / 18.1 kW
Performance Parameters
Operating weight (kg)2200
Bucket capacity (m³)0.07
Walking speed (km/h)3.4
Rotation speed (r/min)10
Platform ground clearance (mm)390
Swing angle (°)360
Angle of roll (°)Left 45° / Right 55°
Working Range


Max. digging height (mm)3427
Max. dumping height (mm)2600
Max. digging depth (mm)2752
Max. digging radius (mm)4519
Bulldozer max. digging depth (mm)297
Bulldozer max. raising height (mm)230
