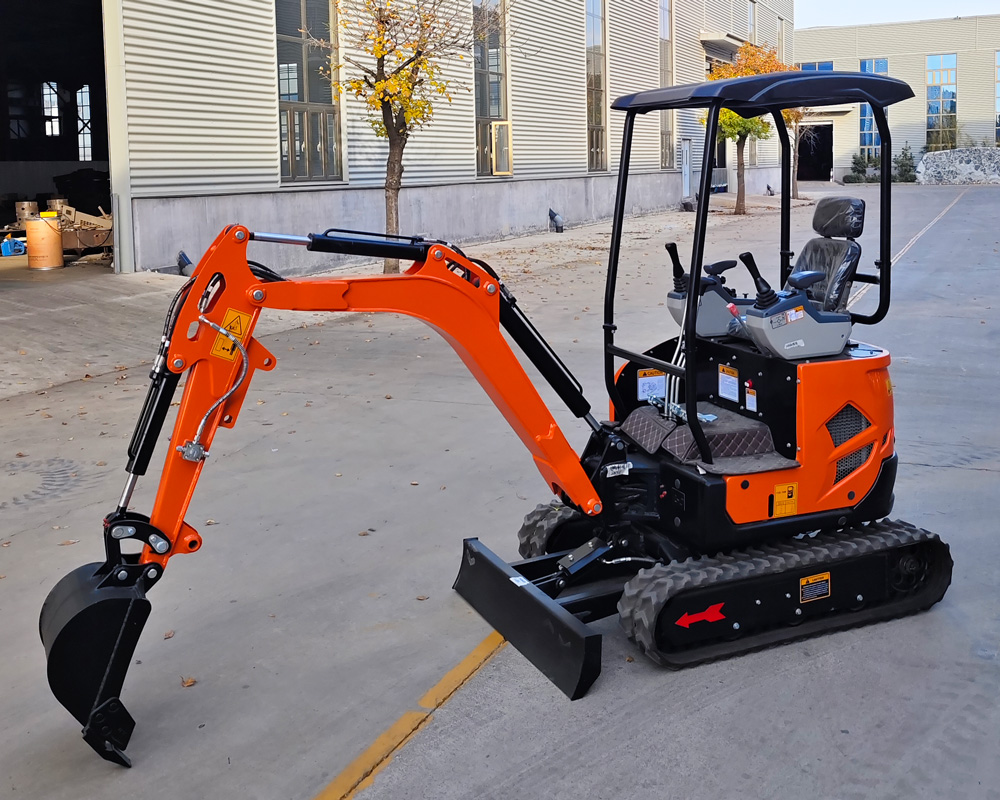

1.4 ton excavator

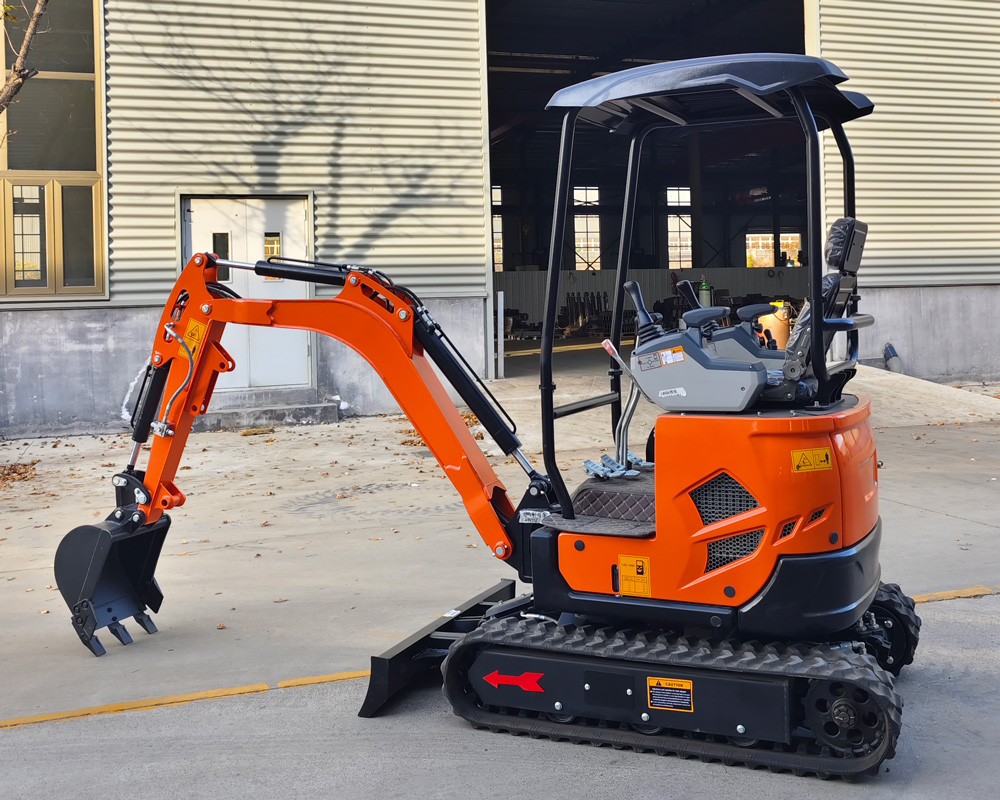

1.4 ton mini crawler digger

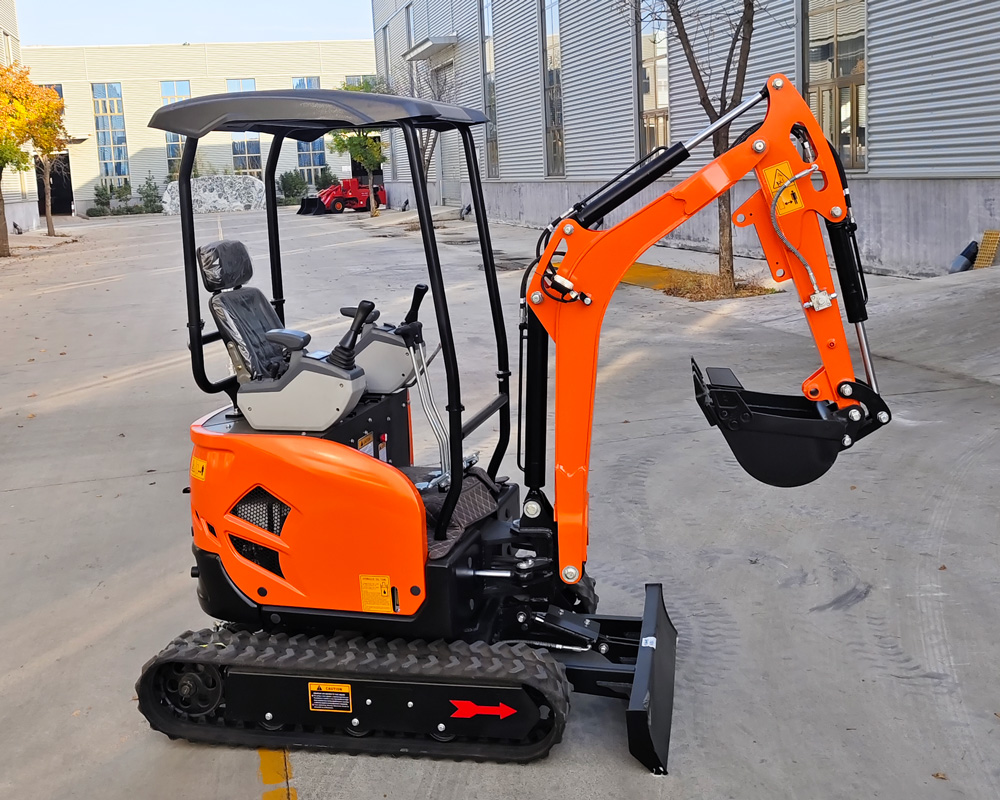

24.2 HP Laidong Narrow Space Digger

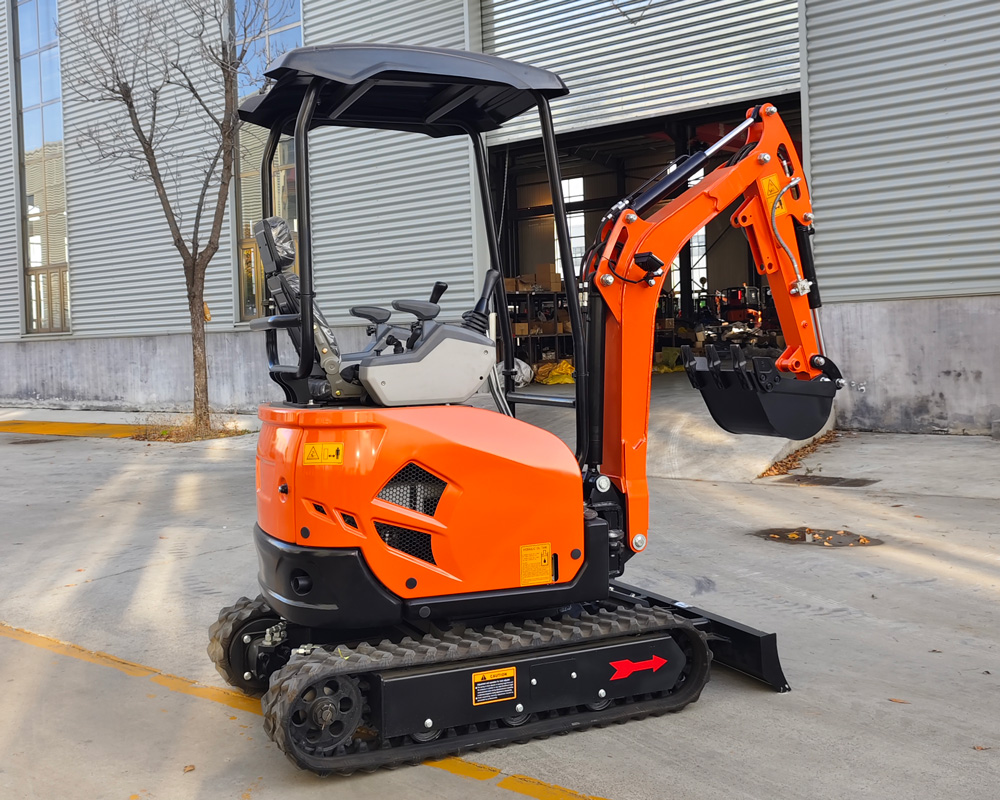

Laidong 385 excavator
1.4 ton excavator
1.4 ton mini crawler digger
24.2 HP Laidong Narrow Space Digger
Laidong 385 excavator

SH15A

Mini Excavator

Total Weight:

1400KG

Bucket Capacity:

0.04m³

Rated Power:

18.1Kw

  • Overall Dimensions (mm)
    3320*1100*2200
  • Engine Model
    LAIDONG 385
  • Travel Speed (km/h)
    2.1

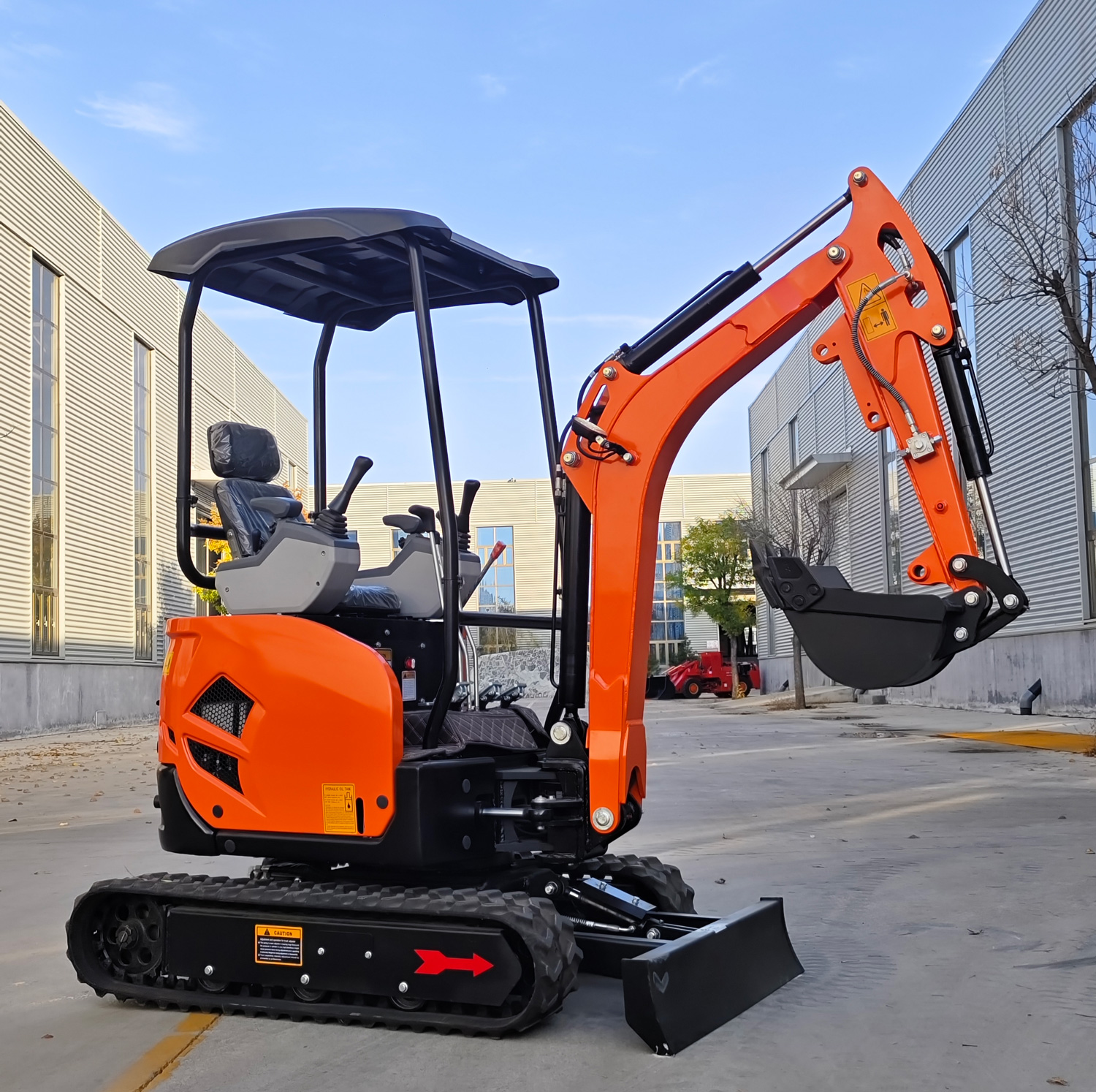

SH15A Mini Excavator
SH15A Mini Excavator

🔍 Details:SH15A Mini Excavator

SH15A Mini Crawler Excavator Compact Multifunctional Digger

The SH15A Mini Crawler Excavator features ultra-compact overall dimensions, powerful Laidong power configuration and comprehensive performance parameters. It supports 360° full rotation and flexible rolling angle adaptation, with complete working range and bulldozing function parameters. Ideal for garden renovation, farmland trenching, municipal small engineering and narrow space construction, it owns stable travel performance and flexible operation capability to meet diversified small-scale construction demands.

📐 Ultra-Compact Overall Dimension Layout

The overall dimension is 3320mm in length, 1100mm in width and 2200mm in height, with 230mm crawler width, 1500mm crawler length and 945mm body width, perfectly adapting to narrow passages, courtyards and confined working sites.

🔧 Laidong 385 High Power Engine

Equipped with reliable Laidong 385 engine with 18.1 kW rated power, featuring stable output, low fuel consumption and strong durability, suitable for long-time continuous operation.

⚖️ 1400kg Standard Operating Weight

The whole machine operating weight reaches 1400kg, balancing structural stability and flexible mobility, easy for site transfer and daily construction operation.

🪣 0.04m³ Standard Bucket Capacity

Matched with 0.04m³ bucket capacity, it efficiently completes digging, soil loading and material handling tasks, improving daily construction work efficiency.

🚀 Stable Travel And Rotation Performance

2.1 km/h walking speed and 10 r/min rotation speed ensure smooth travelling and flexible slewing; 380mm platform ground clearance enhances obstacle crossing ability on complex road conditions.

🔄 360° Full Rotation Flexible Operation

Supports 360° unlimited swing angle, with left 45° and right 55° rolling angle, realizing all-direction operation without dead angle and greatly improving construction flexibility.

⛰️ Comprehensive Superb Working Range

Max digging height 2900mm, max dumping height 1780mm, max digging depth 2000mm and max digging radius 3500mm, covering all conventional small excavation operation requirements.

🛡️ Integrated Bulldozer Auxiliary Function

Bulldozer max digging depth 325mm and max raising height 308mm, realizing ground leveling, obstacle removal and site finishing, multi-function in one machine.

SH15A Mini Crawler Excavator — Technical Parameters
Dimensions
Total length (mm)3320
Total width (mm)1100
Total height (mm)2200
Crawler width (mm)230
Crawler length (mm)1500
Body width (mm)945
Engine
Engine modelLaidong 385 / 18.1 kW
Performance Parameters
Operating weight (kg)1400
Bucket capacity (m³)0.04
Walking speed (km/h)2.1
Rotation speed (r/min)10
Platform ground clearance (mm)380
Swing angle (°)360
Angle of roll (°)Left 45° / Right 55°
Working Range
Max. digging height (mm)2900
Max. dumping height (mm)1780
Max. digging depth (mm)2000
Max. digging radius (mm)3500
Bulldozer max. digging depth (mm)325
Bulldozer max. raising height (mm)308
