SH15P

Mini Excavator

Total Weight:

1200KG

Bucket Capacity:

0.025m³

Rated Power:

18.8Kw

  • Engine Model
    LAIDONG 385/YANMAR 3TNV74F
  • Rated Speed (rpm)
    2400
SH15P Mini Excavator
SH15P Mini Excavator

🔍 Details:SH15P Mini Excavator

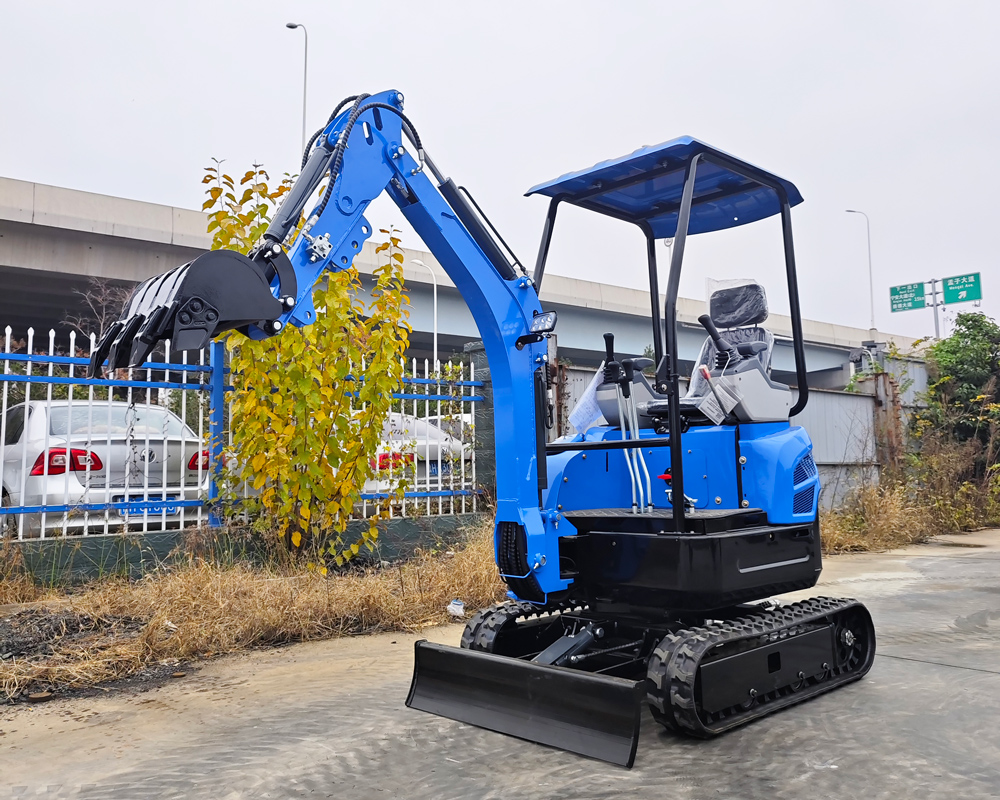

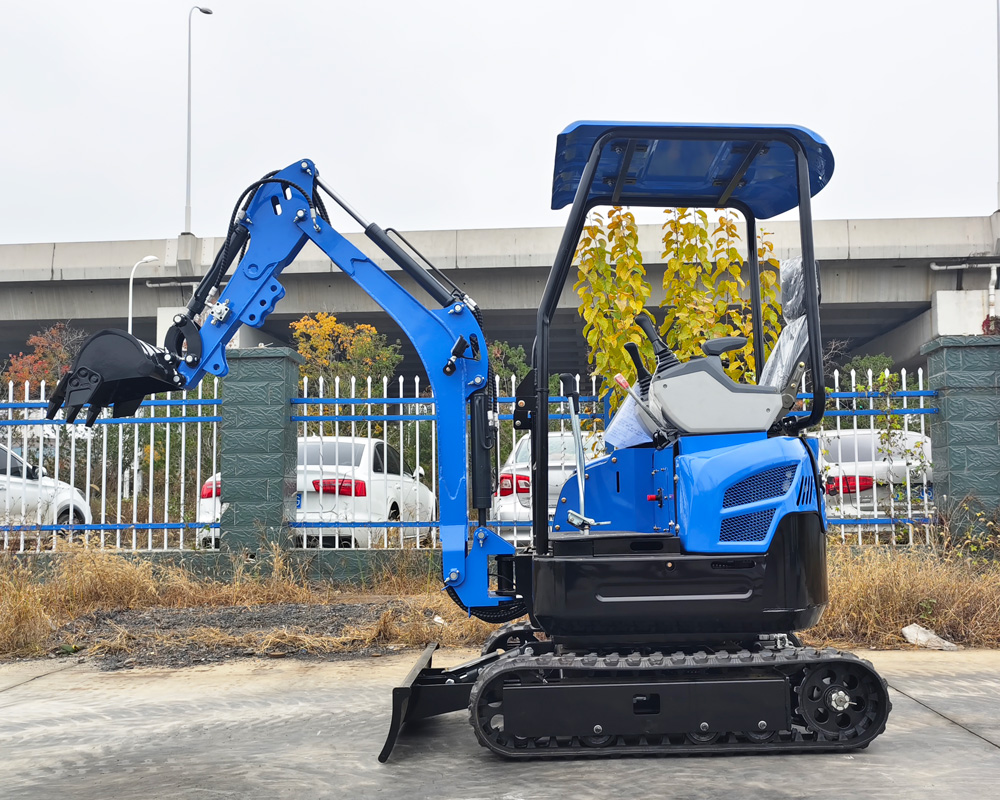

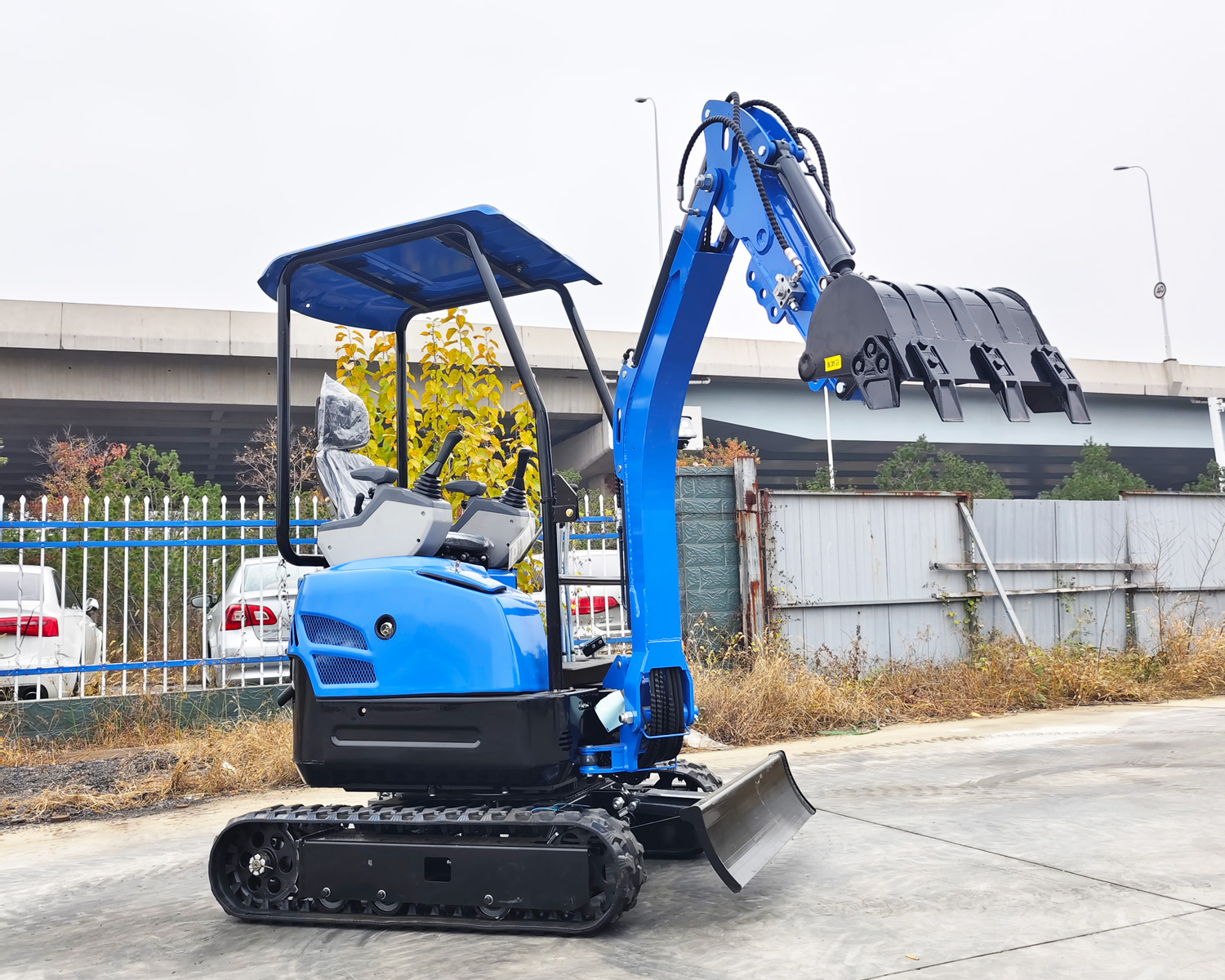

SH15P Mini Crawler Excavator Compact Construction Machinery

The SH15P Mini Crawler Excavator is a lightweight and flexible small digging machine tailored for narrow construction sites, garden renovation, farmland trenching and municipal small-scale engineering. It is equipped with optional LAIDONG and YANMAR mainstream power engines, complies with EURO 5 and EPA 4 emission standards, and features a compact body size, stable operating performance and complete working range parameters, supporting standard and cabin versions of wooden box packaging to meet global transportation and delivery demands.

🔧 Dual Optional Brand Engine Configuration

Comes with two engine options: LAIDONG 385 and YANMAR 3TNV74F, adapting to different market power demand scenarios.

⚙️ Reliable Power Output Performance

Supports 18.8 kW / 2400 rpm for LAIDONG version and 11.2 kW / 2400 rpm for YANMAR version, maintaining stable power output under long-term working conditions.

🌍 High Standard Emission Compliance

Fully meets EURO 5 and EPA 4 emission standards, environmentally friendly and energy-saving, compliant with European and American market access regulations.

📌 Lightweight 1200kg Operating Weight

The whole machine operating weight is 1200kg, easy to transfer, suitable for narrow roads, villas and small indoor and outdoor construction scenarios.

🪣 Standard 0.025m³ Bucket Capacity

Equipped with 0.025m³ standard bucket capacity, perfectly matching small-scale digging, soil shoveling and material handling daily operations.

📏 Stable Track Structural Design

1370mm track ground length ensures excellent ground adhesion and walking stability, adapting to muddy, gravel and complex terrain conditions.

⛰️ Excellent Full Working Range

Max digging height 2650mm, max dumping height 1800mm, max digging depth 1800mm, covering most small engineering digging and loading operation needs.

📦 Dual Specification Wooden Box Packaging

Standard configuration wooden box size 3150×1170×1700mm, cabin version 2600×1170×2400mm, convenient for container loading and long-distance sea transportation.

SH15P Mini Crawler Excavator — Technical Parameters
Engine
Engine modelLAIDONG 385 / YANMAR 3TNV74F
Power / rpm18.8 kW / 2400 rpm (LAIDONG) — 11.2 kW / 2400 rpm (YANMAR)
Emission standardEURO 5 / EPA 4
Performance Parameters
Operating weight (kg)1200
Bucket capacity (m³)0.025
Track ground length (mm)1370
Working Range
Max. digging height (mm)2650
Max. dumping height (mm)1800
Max. digging depth (mm)1800
Packaging Dimensions
Wooden box size (standard configuration) (mm)3150 × 1170 × 1700
Wooden box size (with cabin) (mm)2600 × 1170 × 2400
