SH15B

Mini Excavator

Total Weight:

1400KG

Rated Power:

18.8 / 11.2Kw

  • Overall Dimensions (mm)
    3350x1220x1750
  • Engine Model
    LAIDONG 385 / YANMAR 3TNV74F
  • Rated Speed (rpm)
    2400

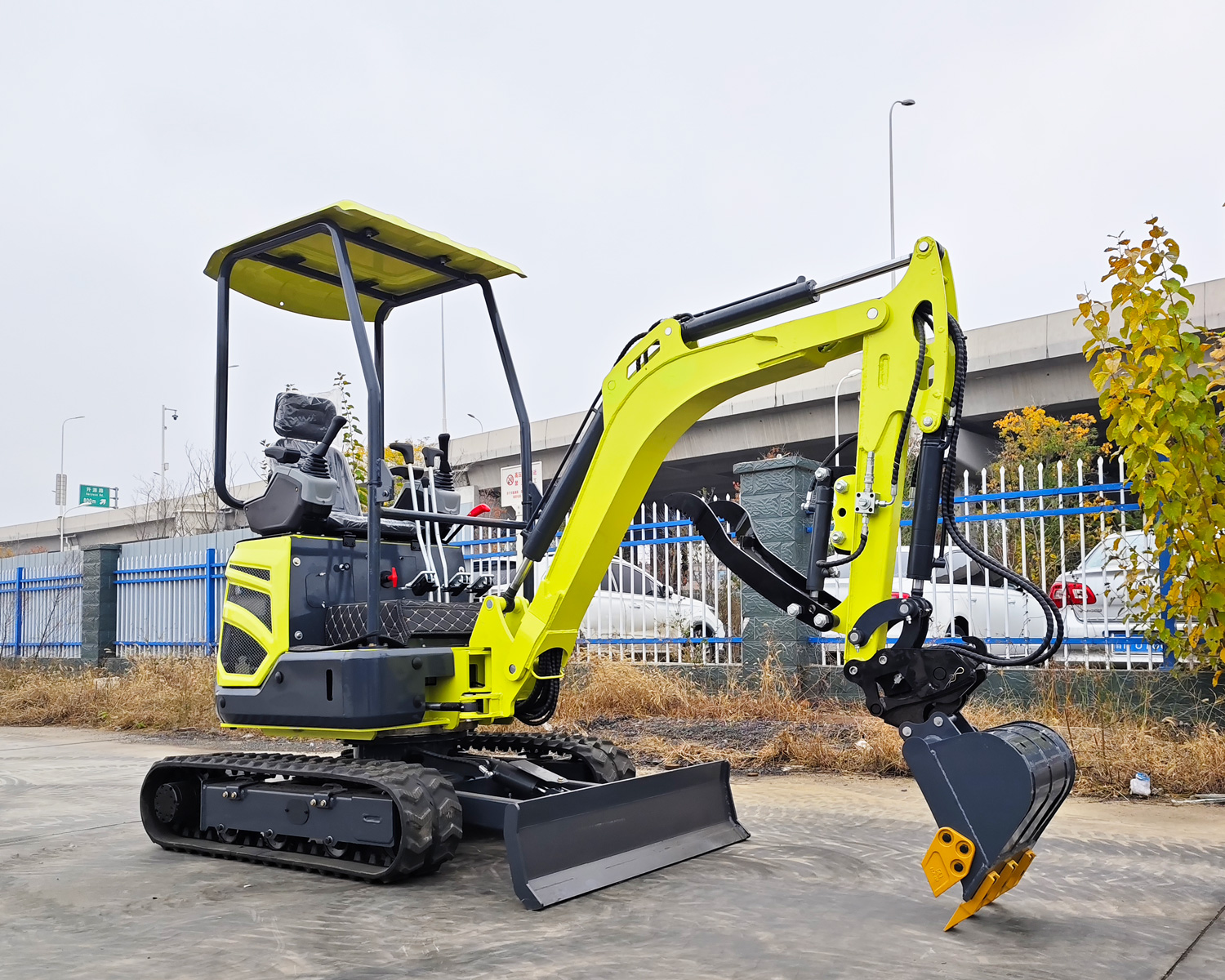

SH15B Mini Excavator
SH15B Mini Excavator

🔍 Details:SH15B Mini Excavator

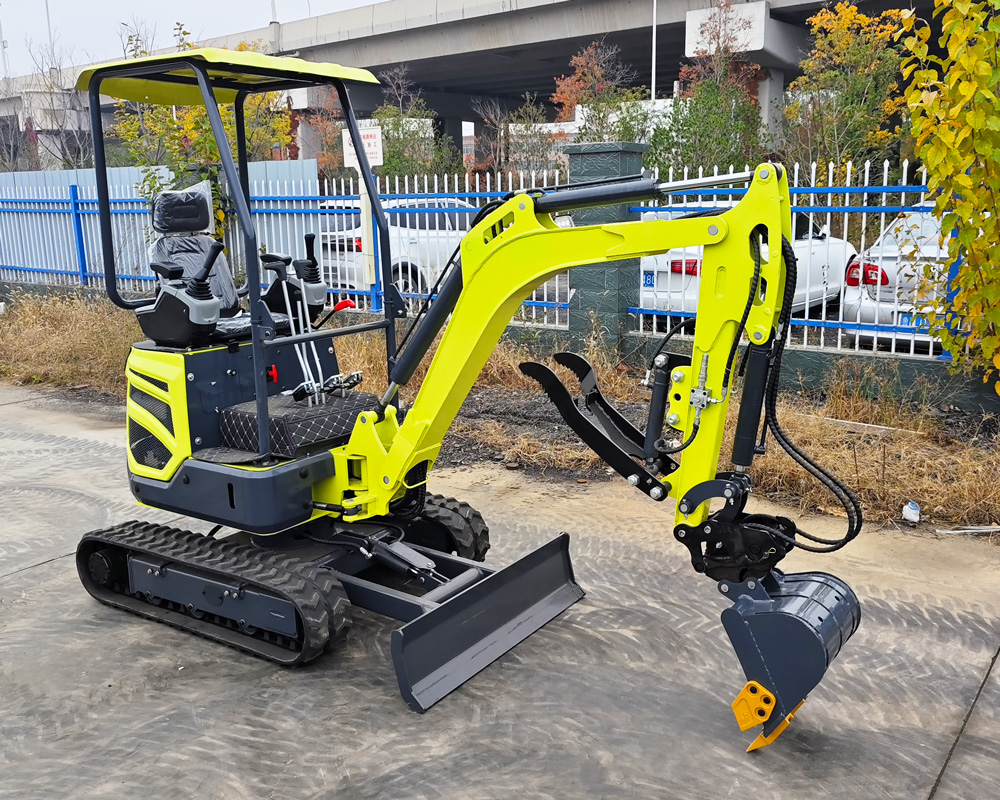

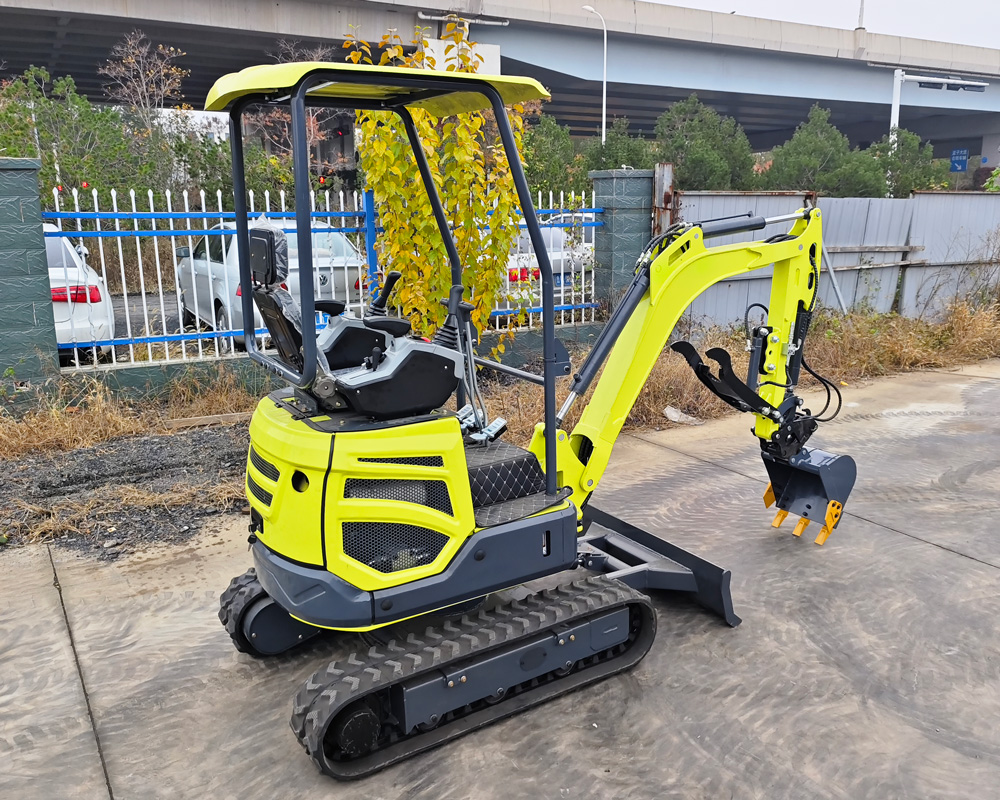

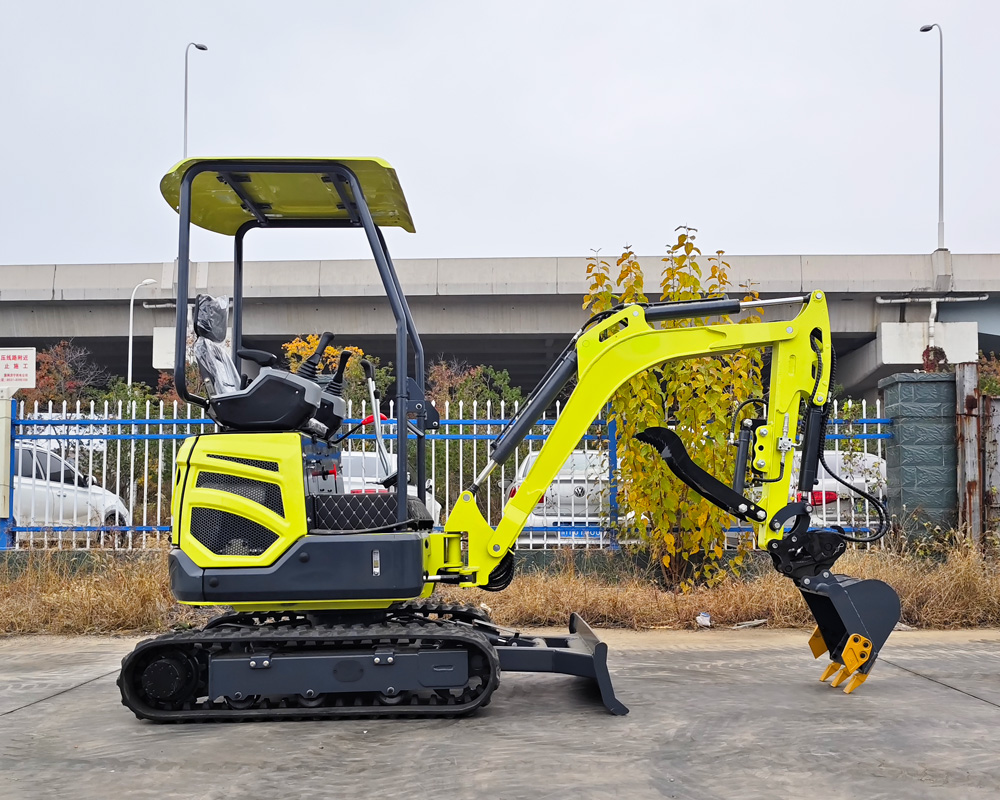

SH15B Mini Crawler Excavator High-Efficiency Small-Scale Construction Equipment

The SH15B Mini Crawler Excavator is an upgraded small digging machine designed for small and medium-sized engineering operations, including municipal maintenance, garden construction, farmland transformation and indoor decoration. It is equipped with optional LAIDONG 385 and YANMAR 3TNV74F engines, meets EURO 5 / EPA 4 emission standards, and has an optimized operating weight and bucket capacity compared with similar models. With excellent working range and dual-specification packaging design, it can efficiently adapt to various complex construction scenarios and meet global transportation needs.

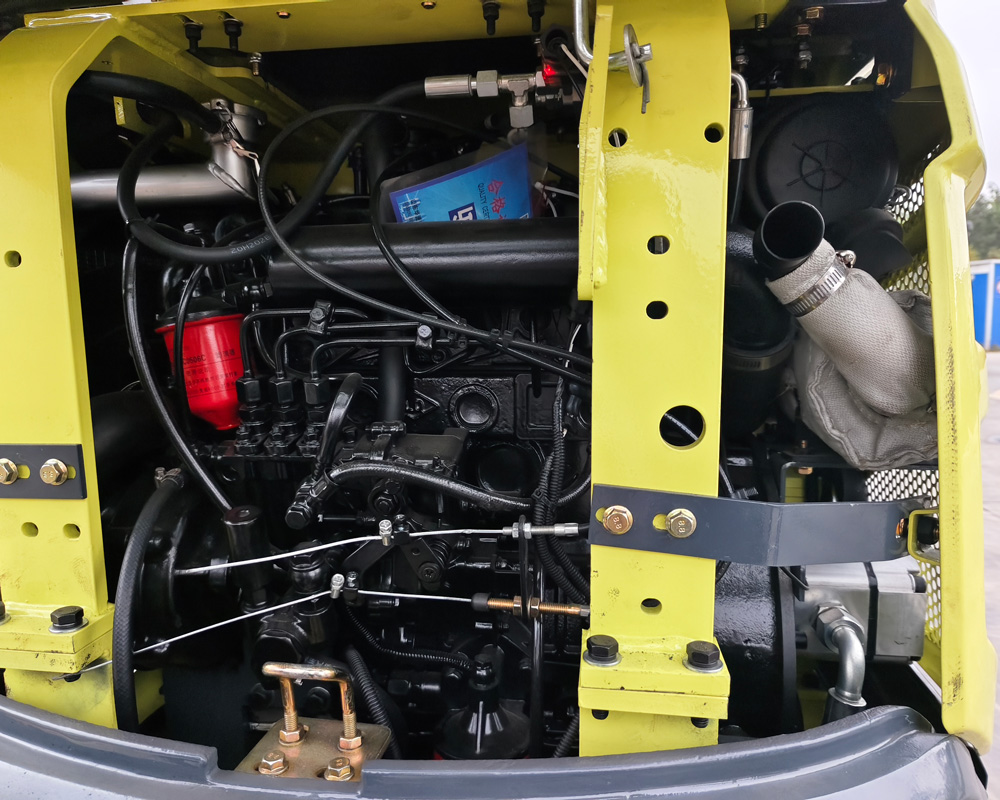

🔧 Dual Optional High-Quality Engine

Equipped with two reliable engine options: LAIDONG 385 and YANMAR 3TNV74F, which are well-known in the industry for their durability and stability, and can be selected according to different market and operation needs.

⚙️ Stable and Efficient Power Output

Provides two power specifications: LAIDONG version with 18.8 kW / 2400 rpm and YANMAR version with 11.2 kW / 2400 rpm, ensuring efficient operation while maintaining low energy consumption and long service life.

🌍 Environmentally Friendly Emission Standards

Strictly complies with EURO 5 and EPA 4 emission standards, effectively reducing exhaust emissions, being environmentally friendly and energy-saving, and fully meeting the access requirements of international markets such as Europe and America.

📌 Optimized 1400kg Operating Weight

The operating weight of the whole machine is 1400kg, which balances flexibility and stability. It is easy to transfer between construction sites and can be used in narrow spaces such as residential areas and indoor venues.

🪣 Enhanced 0.04m³ Bucket Capacity

Configured with a 0.04m³ bucket, which has a larger loading capacity than similar small excavators, greatly improving the efficiency of digging, soil shoveling and material handling operations.

📏 Stable Track Ground Contact Design

With a 1440mm track ground length, it has strong ground adhesion and walking stability, which can smoothly pass through muddy, gravel and other complex terrains, ensuring the safety and efficiency of operation.

⛰️ Superior Full Working Range

It has excellent working performance: the maximum digging height is 2800mm, the maximum dumping height is 1850mm, and the maximum digging depth is 2100mm, which can fully meet the needs of various small and medium-sized digging and loading operations.

📦 Dual-Specification Wooden Box Packaging

Provides two packaging options: the standard configuration wooden box size is 3350 × 1220 × 1750mm, and the cabin version is 2650 × 1220 × 2450mm, which is convenient for container loading and long-distance sea transportation, ensuring the safety of the machine during transportation.

SH15B Mini Crawler Excavator — Technical Parameters
Engine
Engine modelLAIDONG 385 / YANMAR 3TNV74F
Power / rpm18.8 kW / 2400 rpm (LAIDONG) — 11.2 kW / 2400 rpm (YANMAR)
Emission standardEURO 5 / EPA 4
Performance Parameters
Operating weight (kg)1400
Bucket capacity (m³)0.04
Track ground length (mm)1440
Working Range
Max. digging height (mm)2800
Max. dumping height (mm)1850
Max. digging depth (mm)2100
Packaging Dimensions
Wooden box size (standard configuration) (mm)3350 × 1220 × 1750
Wooden box size (with cabin) (mm)2650 × 1220 × 2450
