SH10B

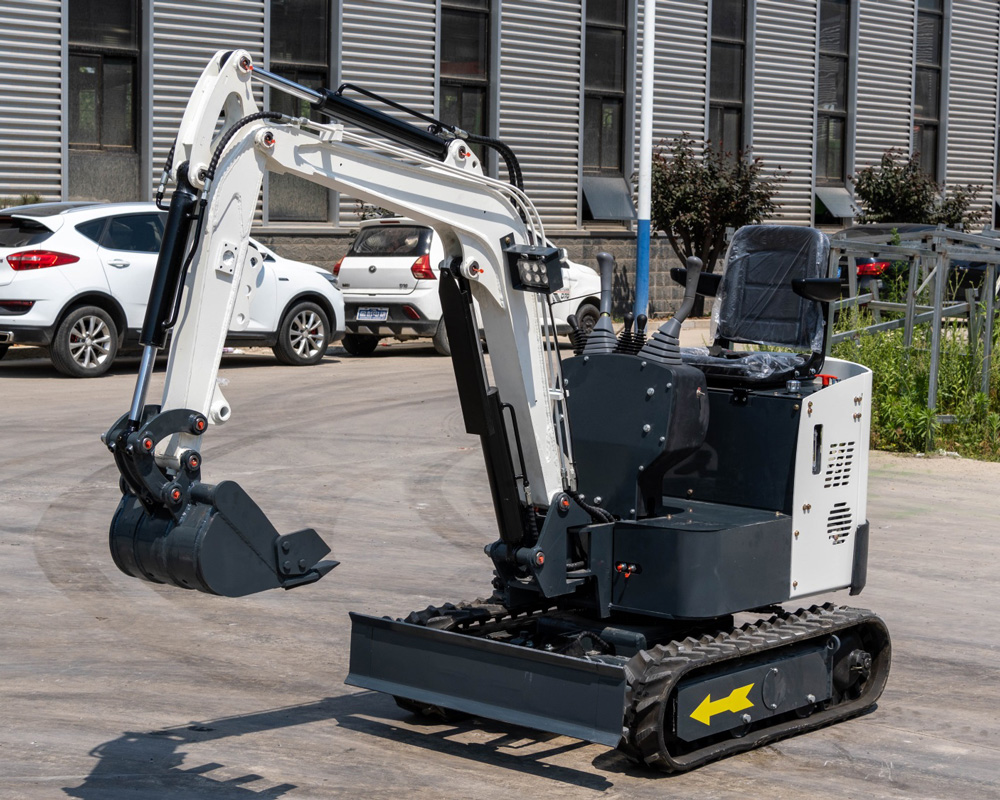

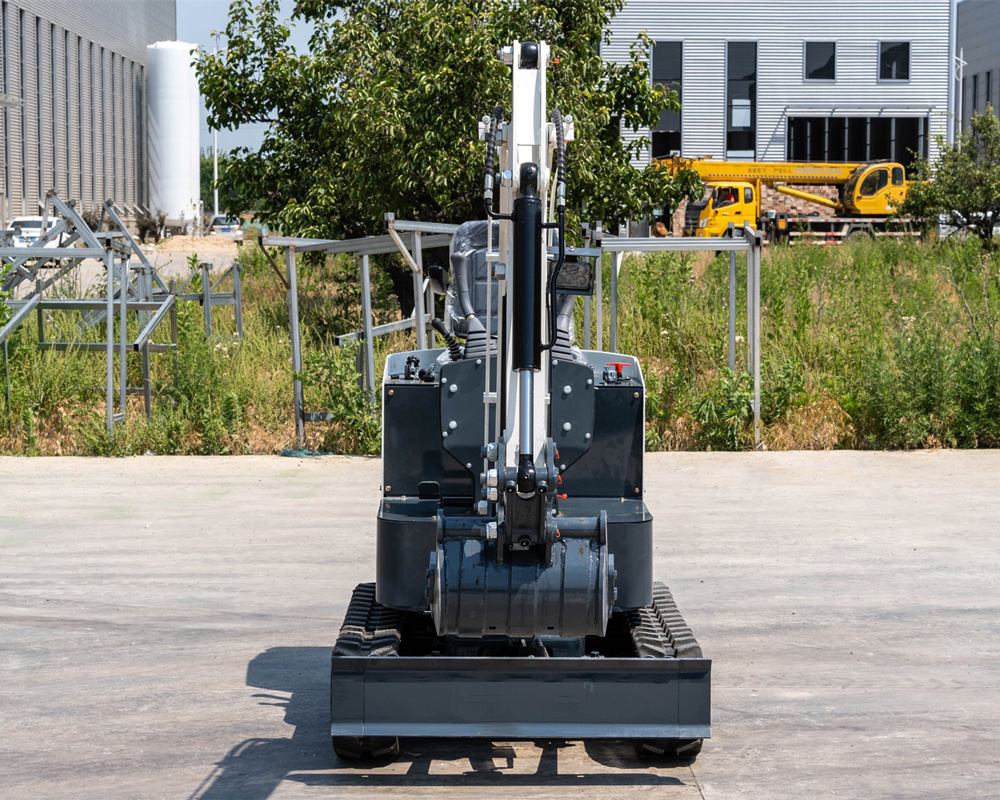

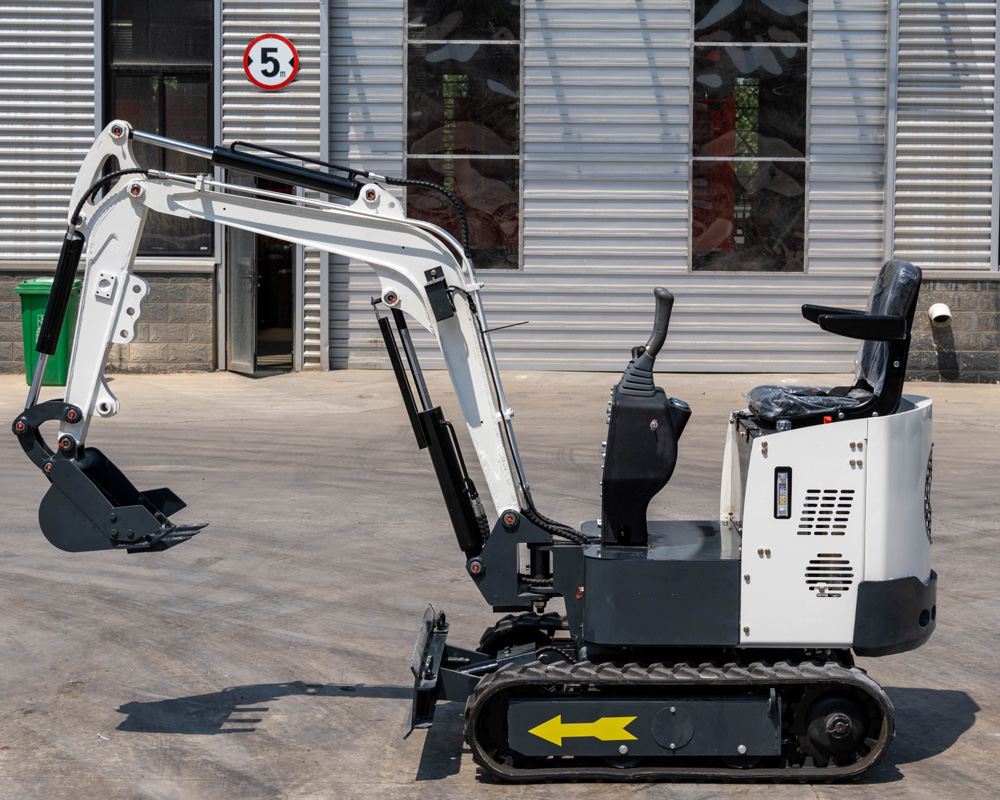

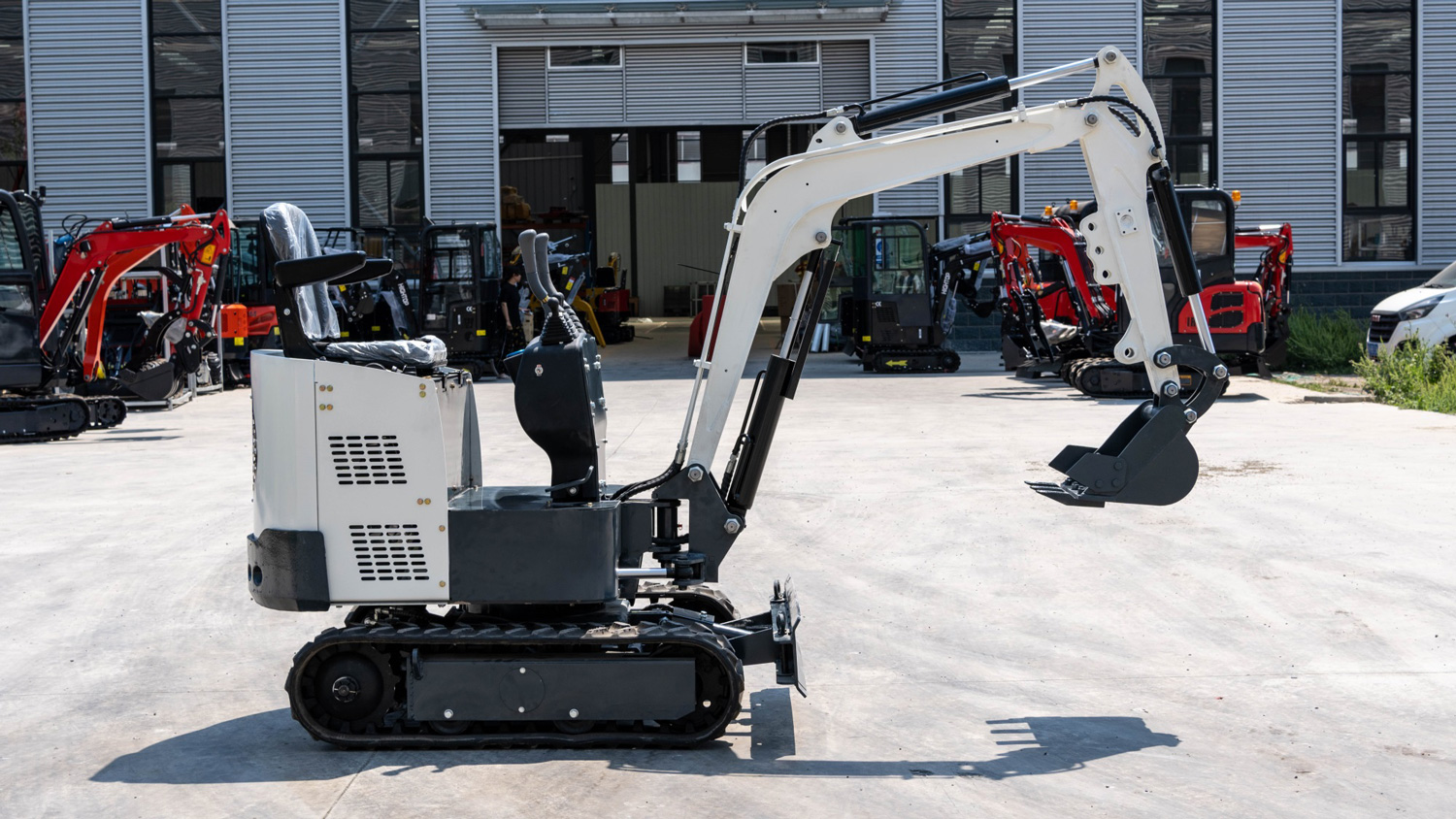

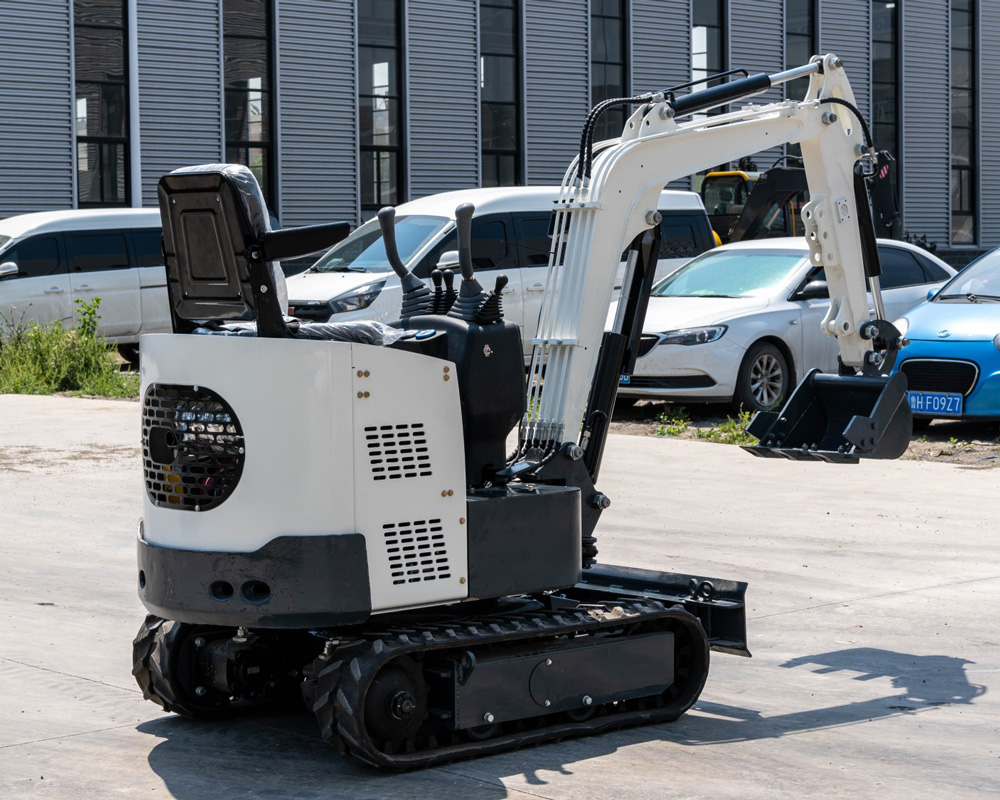

🏗️ SH10B Mini Crawler Excavator – 1 Ton Compact Versatile Digger

The SH10B mini crawler excavator is a 1-ton class compact and versatile digging machine, designed for small-scale earthmoving, landscaping, farm renovation, indoor demolition and narrow-space construction. With a lightweight tracked chassis, flexible working range and reliable power configuration, it delivers stable performance for residential and light commercial projects.

🔋 Reliable KOOP Power with Optional Engine

The SH10B is equipped with the KOOP 192F single-cylinder fan-cooled engine, delivering rated power of 7kW at 3000rpm. Briggs & Stratton engine is available as an optional upgrade. With a displacement of 6.8ml/r, it provides steady power output, low fuel consumption and easy maintenance for long hours of light-duty construction work.

💪 Efficient Digging & Loading Performance

With a bucket capacity of 0.025m³ (120kg rated load) and 380mm bucket width, the SH10B handles trenching, small-scale excavation and material loading efficiently. The compact yet robust working arm delivers reliable digging force, making it ideal for garden work, pipeline installation and farm maintenance tasks.

🚜 Compact & Stable Tracked Chassis

With an overall dimension of 2900 × 930 × 2180mm, the SH10B is highly maneuverable in tight spaces. It features a 1230mm total track length, 180mm track width, 132mm chassis ground clearance and 380mm platform ground clearance. Combined with a 1330mm minimum rotation radius and only 784mm platform back turning radius, it can operate flexibly in confined areas without damaging surrounding structures.

📏 Wide Working Range for Versatile Applications

The SH10B offers a comprehensive set of working parameters to suit diverse tasks: - Max digging depth: 1750mm - Max vertical digging depth: 1550mm - Max digging height: 2610mm - Max dumping height: 1850mm - Max digging radius on ground: 3050mm The dozer blade provides 345mm upgrade height and 255mm digging depth, helping level ground, stabilize the machine and clear debris.

🚶 Stable Travel & Off-Road Performance

With a travel speed of 1.5km/h, the SH10B moves steadily on various surfaces. The tracked chassis ensures good traction and stability on soft ground, slopes and uneven terrain, making it suitable for outdoor construction sites and farmland environments.

⚙️ Simple Structure & Low Maintenance Cost

Built with a simple yet durable structure, the SH10B features easily accessible components and proven engine parts. It minimizes daily maintenance and repair needs, keeping operating costs low for small contractors, rental businesses and private users.

🌍 Perfect for Small & Medium-Scale Projects

The SH10B mini excavator is widely used in landscaping, residential construction, farm work, indoor demolition, pipeline installation and municipal maintenance. Its compact size, reliable performance and multi-functional design make it a cost-effective choice for light construction projects worldwide.
